75A / 85A

75A / 85A

Nr. Bestelnummer: Yamaha OEM: Omschrijving:
  GLM12282 692-W0078-02 Water pump kit
  GLM87837 688-W0001-22 Gearcase seal kit
3 REC93315-325V1 93315-325V1 Bearing
4 REC90430-12072 90430-12072 Gasket
5 REC663-44366-00 663-44366-00 Damper, Water seal
6 REC93332-000U3 93332-000U3 Bearing
7 GLM12808 93606-12019 Pin, dowel
8 REC93332-000W7 93332-000W7 Bearing
9 MAL9-72653 90340-08002 Plug, Straight screw
10 REC688-45341-00 688-45341-10 Plug, drain
11 REC90430-08020-00 90430-08020 Gasket
12 REC688-45987-00 688-45987-01 Spacer
13 GLM22178 67F-45997-00 Spacer
14 GLM21223 90389-25M00 Bush
15 REC90171-16011 90171-16011 Nut. Castle
16 REC91490-40025 91490-40025 Pin, cotter
17 REC93210-49046 93210-49046 O-ring
18 REC93106-09014 93106-09014 Oil seal
21 REC688-44311-01 688-44311-01 Housing, water pump
22 REC688-44322-00 688-44322-00 Insert, Cartridge
24 REC688-44315-00 688-44315-A0 Gasket, Water pump
25 GLM89920 688-44352-03 Impeller
26 REC90280-04M04 90280-04M04 Key, Woodruff
27 REC688-44341-01 688-44341-01-94 Housing, water pump
28 REC93101-25M03 93101-25M03 Oil seal
29 REC93210-46044 93210-46044 O-ring
30 REC688-44316-00 688-44316-A0 Gasket, Water pump
31 REC688-44323-00 688-44323-00 Outer plate, Cartridge
32 REC688-44324-00 688-44324-A0 Gasket, cartrigde
33 PAF25-04000007 93604-10M03 Pin, dowel
34 REC97075-10040 97075-10040 Bolt, With washer
35 REC90119-08M13 90119-08M13 Bolt, With washer
36 REC688-45501-11 688-45501-11 Drive shaft comp.
37 REC688-45551-00 688-45551-01 Pinion
38 REC90170-16M01 90170-16M01 Nut
39 REC688-45560-00 688-45560-00 Pinion
40 REC688-45611-00 688-45611-00 Shaft, Propeller
41 REC90501-16233 90501-16233 Spring, compression
42 REC688-45634-00 688-45634-00 Slide, shift
43 REC688-45631-00 688-45631-01 Clutch, dog
44 REC90250-07M02 90250-07M02 Pin, Straight
45 REC688-45633-00 688-45633-00 Ring, Cross pin
46 REC688-45635-00 688-45635-00 Plunger, shift
47 REC688-45570-00 688-45571-01 Pinion
48 REC688-45331-00-94 688-45331-00-94 Housing, bearing
49 REC93306-207U0 93306-207U0 Bearing
50 GLM12744 6E5-45371-10 Tab-trim
51 CM688-45371-02 688-45371-02 Tab-trim
52 REC93210-85M97 93210-85M97 O-ring
53 REC93317-325U0 93317-325U0 Bearing
54 REC93101-25M03 93101-25M03 Oil seal
55 REC688-45383-01 688-45383-02 Washer, claw
56 REC688-45384-00 688-45384-00 Nut
57 REC90282-04010 90282-04010 Key, straight
58 REC663-44151-00 663-44151-00 Cam, shift
59 REC663-44144-01 663-44144-01 Rod, shift
60 REC99001-08600-00 99001-08600 Circlip
  SOL3411-140-11 6E5-45954-00-EL Propeller
Tonen als Foto-tabel Lijst

Producten 25-48 van 59

per pagina
Van hoog naar laag sorteren
  1. Yamaha/Parsun Water Pipe Gasket 20/25/40/75/85/90 PK (90430-12072)
    Vanaf € 6,95 € 5,74
  2. Yamaha / Mercury / Parsun Dowel Pin Ø4x10 (93604-10M03, 93604-08062)
    Vanaf € 4,95 € 4,09
  3. Yamaha Key woodruff 20 / 30 / 40 / 50 / 55 / 75 / 85 / 115 / 130 pk (90282-04010-00)
    Vanaf € 8,95 € 7,40
  4. Yamaha Nut 75 / 80 / 85 / 90 / 115 / 130 688-45384-00-00
    Vanaf € 34,95 € 28,88
  5. Yamaha Washer 75 / 80 / 85 / 90 / 115 / 130 688-45383-02-00
    Vanaf € 16,95 € 14,01
  6. Yamaha/Parsun Plug Drain 20 t/m 250 pk (688-45341-00, 688-45341-10)
    Vanaf € 15,95 € 13,18
  7. Yamaha / Mercury / Mariner / Tohatsu / Parsun Staartstuk Olie Pakking (90430-08003, 81987)
    Vanaf € 3,95 € 3,26
  8. Yamaha bearing / lager staartstuk 75 pk tot 90 pk / 75 / 80 / 85 / 90 hp 93306-207U0
    Vanaf € 32,95 € 27,23
  9. Yamaha/Mariner/Parsun Pin Dowel 4 t/m 300 hp (93606-19M23, 93606-12019, PAF15-00000006)
    Vanaf € 6,95 € 5,74
  10. Yamaha Water Pump Service Kit 75 t/m 90 pk (692-W0078-00)
    Vanaf € 69,95 € 57,81
  11. Yamaha Housing bearing 75 / 80 / 85 / 90 pk 688-45331-00-94
    € 91,95 € 75,99

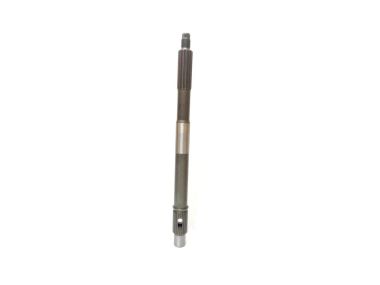

  12. Yamaha Shaft propeller 50/60 + 75A / 85A pk 688-45611-00
    € 729,00 € 602,48
  13. Yamaha O-ring 75 / 80 / 85 / 90 pk 93210-85M97, 93210-85M97-00
    € 11,95 € 9,88
  14. Yamaha / Parsun Nut 40 t/m 90 PK (90171-16011-00, 90171-16011)
    € 20,95 € 17,31
  15. Yamaha Plunger shift 55 / 75 / 85 pk 688-45635-00
    € 14,95 € 12,36
  16. Yamaha Water Pump Gasket 75/80/85/90 PK (688-44315-A0)
    € 10,95 € 9,05
  17. Yamaha Seal & Gasket Kit 75 t/m 90 PK (688-W0001-20)
    € 174,95 € 144,59
  18. Yamaha Gear 75 / 80 / 85 / 90 pk 688-45551-01-00
    € 98,95 € 81,78

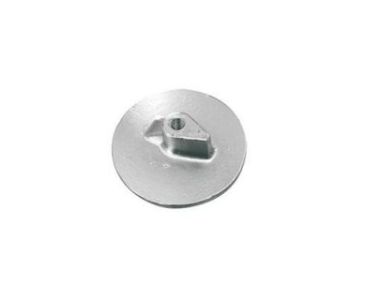

  19. Yamaha Anode 60 - 225 PK (6E5-45371-10-00)
    € 26,95 € 22,27

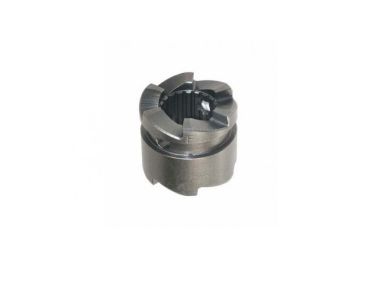

  20. Yamaha Clutch dog 75A - 85A pk 688-45631-01
    € 95,95 € 79,30
  21. Yamaha Slide shift 75A - 85A pk 688-45634-00
    € 14,95 € 12,36
  22. Yamaha Bearing 75 / 80 / 85 / 90 pk 93317-325U0, 93317-325U0-00
    € 40,95 € 33,84
  23. Yamaha Bearing 75 / 80 / 85 / 90 pk 93315-325V1 93315-325V1-00
    € 43,95 € 36,32
  24. Yamaha Spring 55 / 75 / 85 pk 90501-16233
    € 9,95 € 8,22
