75A / 85A

75A / 85A

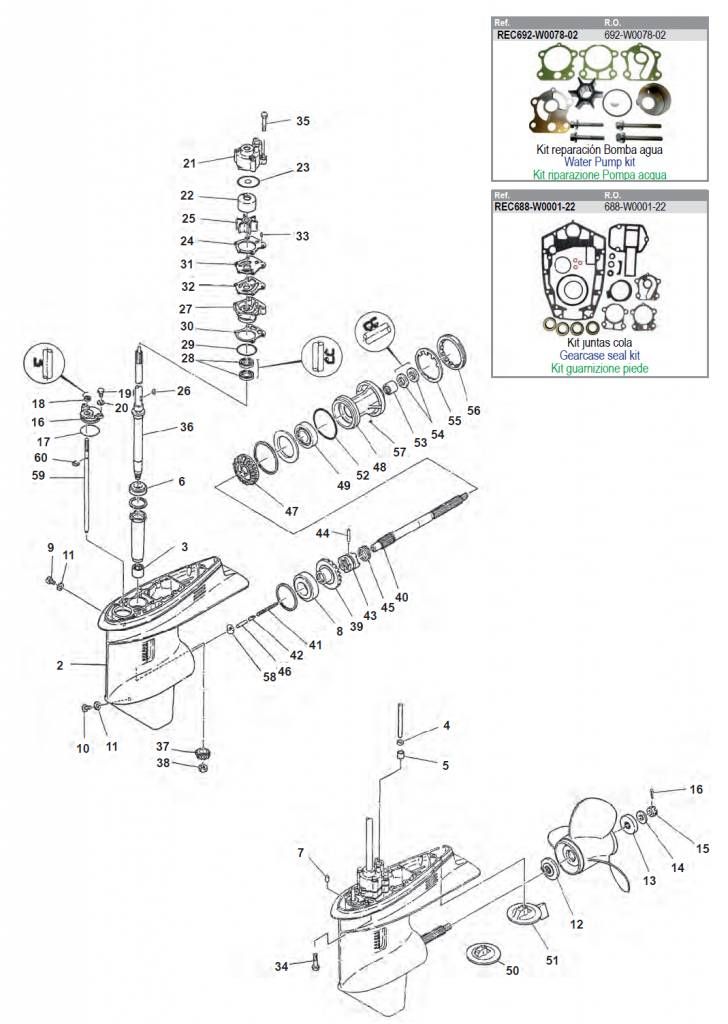

Nr. Bestelnummer: Yamaha OEM: Omschrijving:
  GLM12282 692-W0078-02 Water pump kit
  GLM87837 688-W0001-22 Gearcase seal kit
3 REC93315-325V1 93315-325V1 Bearing
4 REC90430-12072 90430-12072 Gasket
5 REC663-44366-00 663-44366-00 Damper, Water seal
6 REC93332-000U3 93332-000U3 Bearing
7 GLM12808 93606-12019 Pin, dowel
8 REC93332-000W7 93332-000W7 Bearing
9 MAL9-72653 90340-08002 Plug, Straight screw
10 REC688-45341-00 688-45341-10 Plug, drain
11 REC90430-08020-00 90430-08020 Gasket
12 REC688-45987-00 688-45987-01 Spacer
13 GLM22178 67F-45997-00 Spacer
14 GLM21223 90389-25M00 Bush
15 REC90171-16011 90171-16011 Nut. Castle
16 REC91490-40025 91490-40025 Pin, cotter
17 REC93210-49046 93210-49046 O-ring
18 REC93106-09014 93106-09014 Oil seal
21 REC688-44311-01 688-44311-01 Housing, water pump
22 REC688-44322-00 688-44322-00 Insert, Cartridge
24 REC688-44315-00 688-44315-A0 Gasket, Water pump
25 GLM89920 688-44352-03 Impeller
26 REC90280-04M04 90280-04M04 Key, Woodruff
27 REC688-44341-01 688-44341-01-94 Housing, water pump
28 REC93101-25M03 93101-25M03 Oil seal
29 REC93210-46044 93210-46044 O-ring
30 REC688-44316-00 688-44316-A0 Gasket, Water pump
31 REC688-44323-00 688-44323-00 Outer plate, Cartridge
32 REC688-44324-00 688-44324-A0 Gasket, cartrigde
33 PAF25-04000007 93604-10M03 Pin, dowel
34 REC97075-10040 97075-10040 Bolt, With washer
35 REC90119-08M13 90119-08M13 Bolt, With washer
36 REC688-45501-11 688-45501-11 Drive shaft comp.
37 REC688-45551-00 688-45551-01 Pinion
38 REC90170-16M01 90170-16M01 Nut
39 REC688-45560-00 688-45560-00 Pinion
40 REC688-45611-00 688-45611-00 Shaft, Propeller
41 REC90501-16233 90501-16233 Spring, compression
42 REC688-45634-00 688-45634-00 Slide, shift
43 REC688-45631-00 688-45631-01 Clutch, dog
44 REC90250-07M02 90250-07M02 Pin, Straight
45 REC688-45633-00 688-45633-00 Ring, Cross pin
46 REC688-45635-00 688-45635-00 Plunger, shift
47 REC688-45570-00 688-45571-01 Pinion
48 REC688-45331-00-94 688-45331-00-94 Housing, bearing
49 REC93306-207U0 93306-207U0 Bearing
50 GLM12744 6E5-45371-10 Tab-trim
51 CM688-45371-02 688-45371-02 Tab-trim
52 REC93210-85M97 93210-85M97 O-ring
53 REC93317-325U0 93317-325U0 Bearing
54 REC93101-25M03 93101-25M03 Oil seal
55 REC688-45383-01 688-45383-02 Washer, claw
56 REC688-45384-00 688-45384-00 Nut
57 REC90282-04010 90282-04010 Key, straight
58 REC663-44151-00 663-44151-00 Cam, shift
59 REC663-44144-01 663-44144-01 Rod, shift
60 REC99001-08600-00 99001-08600 Circlip
  SOL3411-140-11 6E5-45954-00-EL Propeller
Tonen als Foto-tabel Lijst

Producten 1-24 van 59

Pagina
per pagina
Van hoog naar laag sorteren
  1. Yamaha / Mercury / Tohatsu / Parsun Oil Plug (90340-08002, 953683)
    Vanaf € 4,95 € 4,09
  2. Yamaha / Mercury / Parsun Splitpen (2.5X20) 9.9 / 15 / 20 / 25 / 25C / 30C / 40 / 50 PK (91490-30020)
    Vanaf € 4,95 € 4,09
  3. Yamaha Outer Plate 75 / 80 / 85 / 90 HP (688-44323-00-00)
    Vanaf € 25,95 € 21,45
  4. Yamaha Oil Seal 55 - 250 HP (93106-09014)
    Vanaf € 9,95 € 8,22
  5. Yamaha Waterpomphuis 60 / 70 / 75 / 80 / 90 PK (688-44311-01)
    Vanaf € 31,95 € 26,40
  6. Yamaha Impeller 60 - 90 HP 2005+ (688-44352-03)
    € 22,95 € 18,97
  7. Yamaha / Selva / Tohatsu Aluminium 3-Blads Propeller 60 t/m 130 PK 2-Takt | F75 t/m F115 4-Takt | 15 Tooth Spline
    Vanaf € 289,00 € 238,84
  8. Yamaha / Selva / Tohatsu RVS Propeller 60 t/m 130 PK 2-Takt | F75 t/m F115 4-Takt | 15 Tooth Spline
    Vanaf € 539,00 € 445,45
  9. Yamaha / Selva / Tohatsu Aluminium 4-Blads Propeller 60 t/m 130 PK 2-Takt | F75 t/m F115 4-Takt | 15 Tooth Spline
    Vanaf € 329,00 € 271,90
  10. Yamaha Bolt With Washer 55 / 75 / 85 pk 97075-10040
    Vanaf € 5,95 € 4,92
  11. Yamaha Nut 75 / 80 / 85 / 90 / 115 / 130 / 150 / 200 / 225 / 250 pk 90170-16M01 90170-16M01-00
    Vanaf € 13,95 € 11,53
  12. Yamaha Spacer (tussenring voor schroef) 75 t/m 90 PK (688-45987-01-00, 688-45987-01)
    Vanaf € 79,95 € 66,07
  13. Yamaha Impeller Sleutel (90280-04M04-00) (voor impellers 688-44352-03 en 67F-44352-00)
    Vanaf € 7,95 € 6,57
  14. Yamaha Rod shift 55 / 75 / 85 pk 663-44144-01
    Vanaf € 43,95 € 36,32
  15. Yamaha Bolt with Washer 30 / 75 / 85 PK (90119-08M13)
    Vanaf € 6,95 € 5,74
  16. Yamaha O-ring 6 / 8 / 55 / 75 / 80 / 85 / 90 pk 93210-49046, 93210-49046-00
    Vanaf € 4,95 € 4,09
  17. Yamaha O-ring 75 / 80 / 85 / 90 pk 93210-46044, 93210-46044-00
    Vanaf € 4,95 € 4,09
  18. Yamaha Gasket 75 / 80 / 85 / 90 pk 688-44316-A0, 688-44316-A0-00
    Vanaf € 4,95 € 4,09
  19. Yamaha Housing water pump 75 / 80 / 85 / 90 pk 688-44341-01-94
    Vanaf € 49,95 € 41,28
  20. Yamaha Cartridge Gasket 75 / 80 / 85 / 90 PK (688-44324-A0, 688-44324-00)
    Vanaf € 7,95 € 6,57
  21. Yamaha Insert Cartridge 75 / 80 / 85 / 90 PK (688-44322-00, 688-44322-00-00)
    Vanaf € 20,95 € 17,31
  22. Yamaha Pin 75 / 80 / 85 / 90 pk 90250-07M02
    Vanaf € 5,95 € 4,92
  23. Yamaha Ring, Cross pin 75 / 80 / 85 / 90 pk 688-45633-00
    Vanaf € 4,95 € 4,09
  24. Yamaha Bearing 75 / 80 / 85 / 90 pk 93332-000U3-00 93332-000U3
    Vanaf € 41,95 € 34,67
