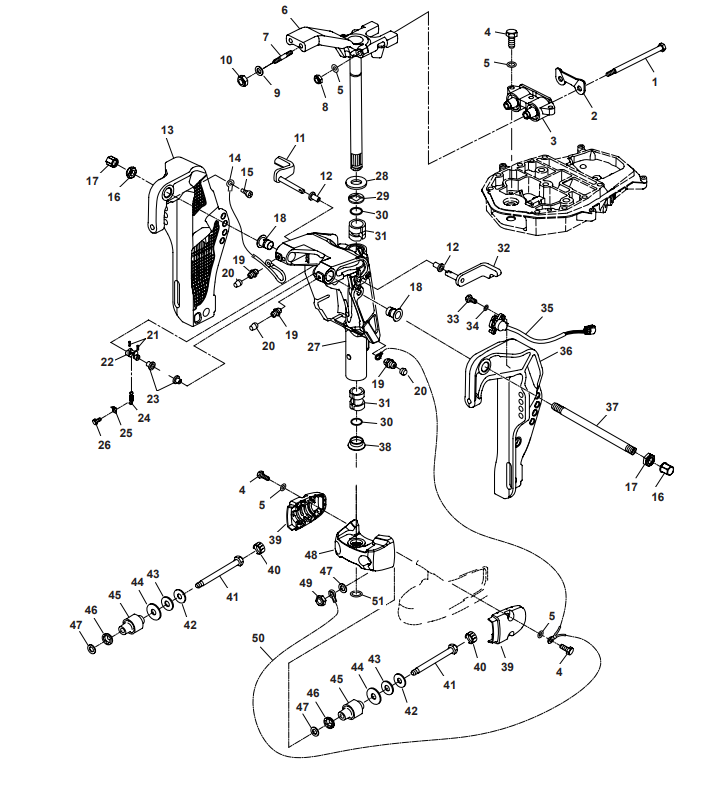

Bracket
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAF60-02000011 |
|

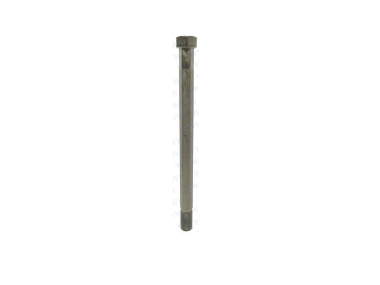

LONG BOLT |
2 |
| 2 |
PAF60-02000010 |
|
PLATE, ABSORBER |
1 |
| 3 |
PAF60-02020000 |
|
SHOCK ABSORBER ASSY, DOUBLE |
1 |
| 4 |
PAGB/T5783-M8x30 |
910113-0830 |
BOLT M8X30 |
7 |
| 5 |
PAGB/T97.1-8 |
66M-11327-00-94 |
WASHER 8 |
9 |
| 6 |
PAF60-01020000 |
|
BRACKET, ASSY |
1 |
| 7 |
PAT85-01020008 |
|
BOLT M10x1.25x28 |
2 |
| 8 |
PAGB/T889.1-M18x1.25 |
|
LOCK NUT M8x1.25 |
2 |
| 9 |
PAGB/T97.1-10 |
|
WASHER 10 |
2 |
| 10 |
PAGB/T889.2-M110x1.25 |
|
LOCK NUT M110x1.25 |
2 |
| 11 |
PAF60-01010104 |
|
SUPPORTING ASSY B |
1 |
| 12 |
PAT85-01010203 |
|
BUSH, NYLON |
2 |
| 13 |
PAF60-01010002 |
|
BRACKET, CLAMP (LEFT) |
1 |
| 14 |
PAT85-01010003 |
|
WIRE, LEAD A |
1 |
| 15 |
PAGB/T818-M6x10 |
|
SCREW, PAN HEAD M6X10 |
1 |
| 16 |
PAF15-01010007 |
63V-43145-00 |
NUT, SELF-LOCKING |
2 |
| 17 |
PAF25-01010011 |
6G5-43145-00 |
NUT, PLASTIC |
2 |
| 18 |
PAF60-01010004 |
|
BUSH, NYLON |
2 |
| 19 |
PAJB/T7940.1-M6 |
344-67177-0 |
NIPPLE, GREASE |
3 |
| 20 |
PAT85-01010210 |
|

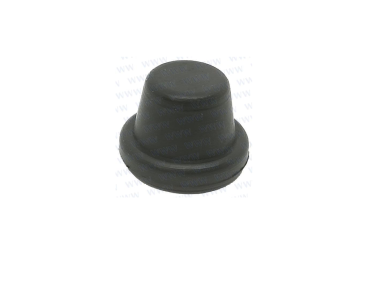

CAP, GREASE NIPPLE |
3 |
| 21 |
PAGB/T879.2-3x16 |
|
PIN, SPRING |
2 |
| 22 |
PAT85-01010206 |
|
BAR ASSY, SUPPORT BRACKET |
1 |
| 23 |
PAF60-01010103 |
|
BUSH, NYLON |
1 |
| 24 |
PAT85-01010207 |
|

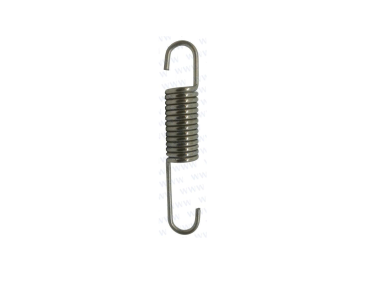

SPRING |
1 |
| 25 |
PAT85-01010208 |
|
PLATE |
1 |
| 26 |
PAGB/T5783-M6x10 |
|
BOLTM6X10 |
1 |
| 27 |
PAF60-01010101 |
|
BRACKET |
1 |
| 28 |
PAT85-01020002 |
|
WASHER |
1 |
| 29 |
PAT85-01020003 |
|
BUSH |
1 |
| 30 |
PAT85-01020004 |
|
O-RING |
2 |
| 31 |
PAT85-01020005 |
|
BUSH |
2 |
| 32 |
PAF60-01010102 |
|
SUPPORTING ASSY A |
1 |
| 33 |
PAGB/T5783-M6x20 |
97080-06020-00 |
HEXAGON BOLT M6X20 |
2 |
| 34 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER, PLAIN 6 |
2 |
| 35 |
PAF60-01010200 |
|
RAISE SENSOR ASSY |
1 |
| 36 |
PAF60-01010001 |
|
BRACKET, CLAMP (RIGHT) |
1 |
| 37 |
PAF60-01010003A |
|
DOUBLE-EDGED TUBE |
1 |
| 38 |
PAT85-01020006 |
|
BUSH |
1 |
| 39 |
PAF60-00000005 |
|
COVER, ABSORBER |
2 |
| 40 |
PAF60-00000004 |
|
COVER, NUT |
2 |
| 41 |
PAF60-00000001 |
|
SCREW, ABSORBER |
2 |
| 42 |
PAT85-00000002 |
|
WASHER A |
2 |
| 43 |
PAT36-02020003 |
|
WASHER, RUBBER |
2 |
| 44 |
PAF60-00000003 |
|
PLATE |
2 |
| 45 |
PAF60-00000100 |
|
ABSORBER ASSY (LEFT, RIGHT) |
2 |
| 46 |
PAF60-00000002 |
|
WASHER, RUBBER |
2 |
| 47 |
PAT85-00000020 |
|
WASHER |
4 |
| 48 |
PAF60-01000001 |
|
ABSORBER BLOCK |
1 |
| 49 |
PAGB/T6170-M12x1.25 |
|
LOCK NUT |
2 |
| 50 |
PAF60-02000002 |
|
TIGHTWIRE, EARTHING |
1 |
| 51 |
PAT85-01020010 |
|
CIRCLIP |
1 |
