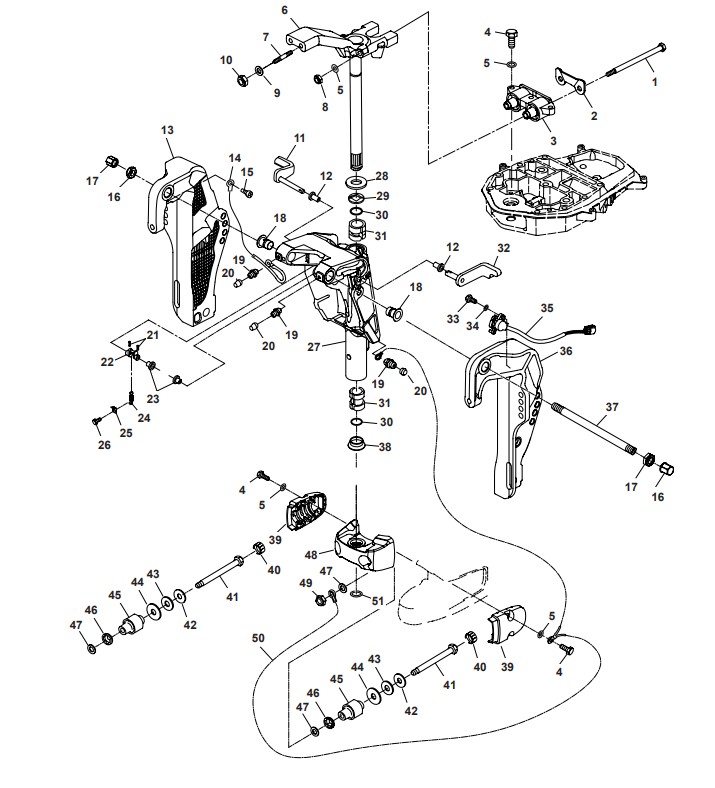

Bracket
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF60-02000011 | LONG BOLT | 2 | |
| 2 | PAF60-02000010 | PLATE, ABSORBER | 1 | |
| 3 | PAF60-02020000 | SHOCK ABSORBER ASSY, DOUBLE | 1 | |
| 4 | PAGB/T5783-M8x30 | 910113-0830 | BOLT M8X30 | 7 |
| 5 | PAGB/T97.1-8 | 66M-11327-00-94 | WASHER 8 | 9 |
| 6 | PAF60-01020000 | BRACKET, ASSY | 1 | |
| 7 | PAT85-01020008 | BOLT M10x1.25x28 | 2 | |
| 8 | PAGB/T889.1-M18x1.25 | LOCK NUT M8x1.25 | 2 | |
| 9 | PAGB/T97.1-10 | WASHER 10 | 2 | |
| 10 | PAGB/T889.2-M110x1.25 | LOCK NUT M110x1.25 | 2 | |
| 11 | PAF60-01010104 | SUPPORTING ASSY B | 1 | |
| 12 | PAT85-01010203 | BUSH, NYLON | 2 | |
| 13 | PAF60-01010002 | BRACKET, CLAMP (LEFT) | 1 | |
| 14 | PAT85-01010003 | WIRE, LEAD A | 1 | |
| 15 | PAGB/T818-M6x10 | SCREW, PAN HEAD M6X10 | 1 | |
| 16 | PAF15-01010007 | 63V-43145-00 | NUT, SELF-LOCKING | 2 |
| 17 | PAF25-01010011 | 6G5-43145-00 | NUT, PLASTIC | 2 |
| 18 | PAF60-01010004 | BUSH, NYLON | 2 | |
| 19 | PAJB/T7940.1-M6 | 344-67177-0 | NIPPLE, GREASE | 3 |
| 20 | PAT85-01010210 | CAP, GREASE NIPPLE | 3 | |
| 21 | PAGB/T879.2-3x16 | PIN, SPRING | 2 | |
| 22 | PAT85-01010206 | BAR ASSY, SUPPORT BRACKET | 1 | |
| 23 | PAF60-01010103 | BUSH, NYLON | 1 | |
| 24 | PAT85-01010207 | SPRING | 1 | |
| 25 | PAT85-01010208 | PLATE | 1 | |
| 26 | PAGB/T5783-M6x10 | BOLTM6X10 | 1 | |
| 27 | PAF60-01010101 | BRACKET | 1 | |
| 28 | PAT85-01020002 | WASHER | 1 | |
| 29 | PAT85-01020003 | BUSH | 1 | |
| 30 | PAT85-01020004 | O-RING | 2 | |
| 31 | PAT85-01020005 | BUSH | 2 | |
| 32 | PAF60-01010102 | SUPPORTING ASSY A | 1 | |
| 33 | PAGB/T5783-M6x20 | 97080-06020-00 | HEXAGON BOLT M6X20 | 2 |
| 34 | PAGB/T97.1-6 | 92990-06600-00 | WASHER, PLAIN 6 | 2 |
| 35 | PAF60-01010200 | RAISE SENSOR ASSY | 1 | |
| 36 | PAF60-01010001 | BRACKET, CLAMP (RIGHT) | 1 | |
| 37 | PAF60-01010003A | DOUBLE-EDGED TUBE | 1 | |
| 38 | PAT85-01020006 | BUSH | 1 | |
| 39 | PAF60-00000005 | COVER, ABSORBER | 2 | |
| 40 | PAF60-00000004 | COVER, NUT | 2 | |
| 41 | PAF60-00000001 | SCREW, ABSORBER | 2 | |
| 42 | PAT85-00000002 | WASHER A | 2 | |
| 43 | PAT36-02020003 | WASHER, RUBBER | 2 | |
| 44 | PAF60-00000003 | PLATE | 2 | |
| 45 | PAF60-00000100 | ABSORBER ASSY (LEFT, RIGHT) | 2 | |
| 46 | PAF60-00000002 | WASHER, RUBBER | 2 | |
| 47 | PAT85-00000020 | WASHER | 4 | |
| 48 | PAF60-01000001 | ABSORBER BLOCK | 1 | |
| 49 | PAGB/T6170-M12x1.25 | LOCK NUT | 2 | |
| 50 | PAF60-02000002 | TIGHTWIRE, EARTHING | 1 | |
| 51 | PAT85-01020010 | CIRCLIP | 1 |
-
