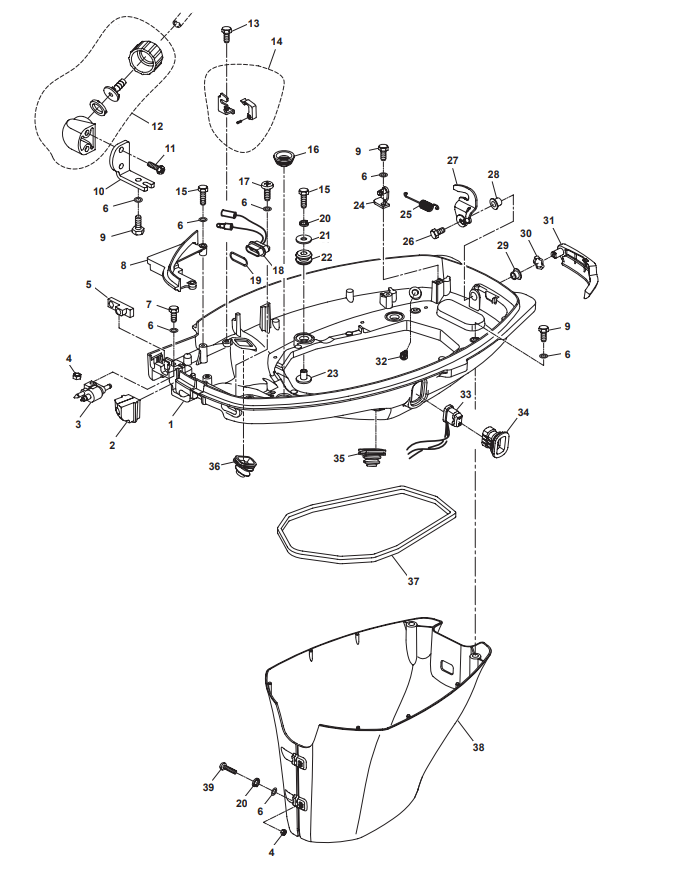

Bottom Cowling
| NR: |
Bestelnummer: |
OEM: |
Omschrijving |
Aantal: |
| 1 |
PAF60-03000001 |
|
BOTTOM COWLLING |
1 |
| 2 |
PAF60-03000006FW |
|
RUBBER PLUG |
1 |
| 3 |
PAF4-05000200 |
6G1-24304-00 |
FUEL PIPE TIE-IN ASSY |
1 |
| 4 |
PAGB/T6170-M16 |
|
NUT M6 |
3 |
| 5 |
PAF60-03000005FW |
|
BAFFLE BOARD, RUBBER |
1 |
| 6 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER, PLAIN 6 |
10 |
| 7 |
PAGB/T5783-M16x25 |
|
BOLT M6x25 |
1 |
| 8 |
PAF60-03000003 |
|
COVER BOARD, BOTTOM COWLING |
1 |
| 9 |
PAGB/T5783-M6x20 |
97080-06020-00 |
HEXAGON BOLT M6X20 |
4 |
| 10 |
PAF25-03000023W |
|
BRACKET, JAM |
1 |
| 11 |
PAGB/T845-ST5.5x19 |
|
SCREW, PAN HEAD ST5.5X19 |
2 |
| 12 |
PAF25-03000100W |
|
JAM ASSY |
1 |
| 13 |
PAGB/T5783-M6x14 |
|
BOLT M6X14 |
1 |
| 14 |
PAF60-03000300 |
|
FIXED BRACKET ASSY, CABLE |
1 |
| 15 |
PAGB/T5783-M6x30 |
97080-06030 |
BOLT HEXAGON M6X30 |
6 |
| 16 |
PAF60-03000008 |
|
SHEATH, WAVE |
1 |
| 17 |
PAGB/T823-M6x12 |
|
SCREW M6x12 |
1 |
| 18 |
PAF40-03000300EI |
|
PILOT LAMP ASSY |
1 |
| 19 |
PAF20-03000101 |
|
SEAL, PILOT LAMP |
1 |
| 20 |
PAGB/T93-6 |
|
WASHER, SPRING 6 |
6 |
| 21 |
PAF25-00000004 |
|
BIG WASHER 6 |
4 |
| 22 |
PAF25-03000006 |
90480-09M12 |
DAMPER |
4 |
| 23 |
PAF25-03000007 |
90387-06M69 |
BUSHING, DAMPER |
4 |
| 24 |
PAF25-03000019 |
|
BRACKET ASSY, TENSIONAL SPRING |
1 |
| 25 |
PAF15-05000026 |
90506-18010 |
SPRING, TENSION |
1 |
| 26 |
PAGB/T5783-M6x12 |
|
BOLT, HEXAGON M6X12 |
1 |
| 27 |
PAF25-03020000 |
65W-42816-03 |
LOCKING ASSY, TOP COWLING |
1 |
| 28 |
PAF15-05000036 |
90386-12M37 |
BUSHING B |
1 |
| 29 |
PAF15-05000022 |
90386-12MA2 |
BUSHING A |
1 |
| 30 |
PAF15-05000023 |
|
WASHER, WAVE |
1 |
| 31 |
PAF60-03000100 |
|
LOCKING HANDLE, TOP COWLING |
1 |
| 32 |
PAF15-05000009 |
6BL-44391-00 |
NIPPLE, PLASTIC |
1 |
| 33 |
PAF40-03000600W |
8M0042300 |
SWITCH ASSY, TILT |
1 |
| 34 |
PAF40-03000008 |
|
JACKET, TILT SWITCH |
1 |
| 35 |
PAT85-03000004 |
|
JACKET, BATTERY LINE |
1 |
| 36 |
PAF25-03000022W |
|
JACKET, WATER PIPE |
1 |
| 37 |
PAF25-03000002 |
62Y-42716-00 |
SEAL, BOTTOM COWLING |
1 |
| 38 |
PAF60-00000014 |
|
COVER, UPPER CASING |
1 |
| 39 |
PAGB/T818-M6x25 |
|
SCREW, PAN HEAD M6X25 |
2 |
