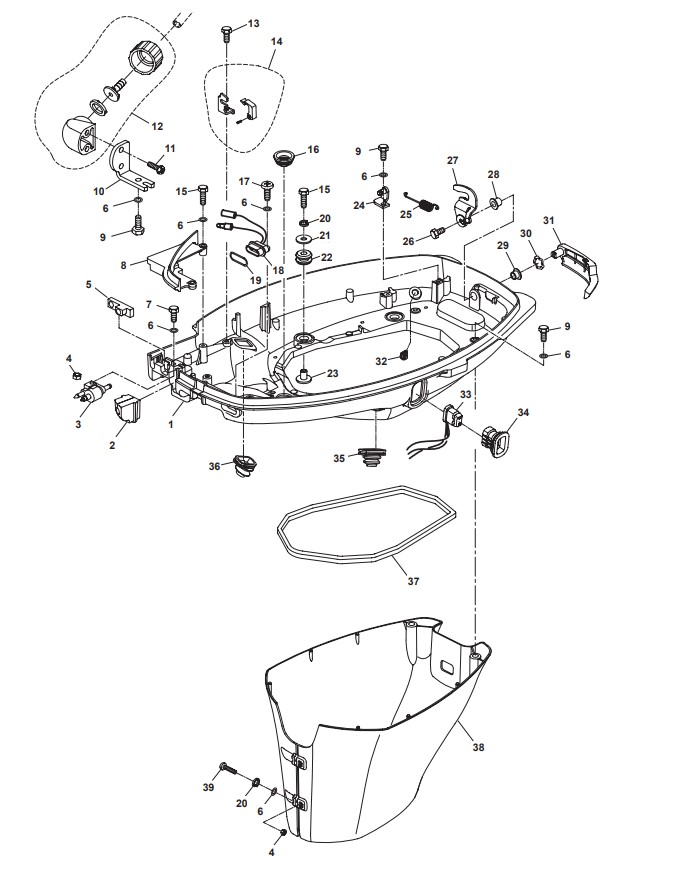

Bottom Cowling
| NR: | Bestelnummer: | OEM: | Omschrijving | Aantal: |
| 1 | PAF60-03000001 | BOTTOM COWLLING | 1 | |
| 2 | PAF60-03000006FW | RUBBER PLUG | 1 | |
| 3 | PAF4-05000200 | 6G1-24304-00 | FUEL PIPE TIE-IN ASSY | 1 |
| 4 | PAGB/T6170-M16 | NUT M6 | 3 | |
| 5 | PAF60-03000005FW | BAFFLE BOARD, RUBBER | 1 | |
| 6 | PAGB/T97.1-6 | 92990-06600-00 | WASHER, PLAIN 6 | 10 |
| 7 | PAGB/T5783-M16x25 | BOLT M6x25 | 1 | |
| 8 | PAF60-03000003 | COVER BOARD, BOTTOM COWLING | 1 | |
| 9 | PAGB/T5783-M6x20 | 97080-06020-00 | HEXAGON BOLT M6X20 | 4 |
| 10 | PAF25-03000023W | BRACKET, JAM | 1 | |
| 11 | PAGB/T845-ST5.5x19 | SCREW, PAN HEAD ST5.5X19 | 2 | |
| 12 | PAF25-03000100W | JAM ASSY | 1 | |
| 13 | PAGB/T5783-M6x14 | BOLT M6X14 | 1 | |
| 14 | PAF60-03000300 | FIXED BRACKET ASSY, CABLE | 1 | |
| 15 | PAGB/T5783-M6x30 | 97080-06030 | BOLT HEXAGON M6X30 | 6 |
| 16 | PAF60-03000008 | SHEATH, WAVE | 1 | |
| 17 | PAGB/T823-M6x12 | SCREW M6x12 | 1 | |
| 18 | PAF40-03000300EI | PILOT LAMP ASSY | 1 | |
| 19 | PAF20-03000101 | SEAL, PILOT LAMP | 1 | |
| 20 | PAGB/T93-6 | WASHER, SPRING 6 | 6 | |

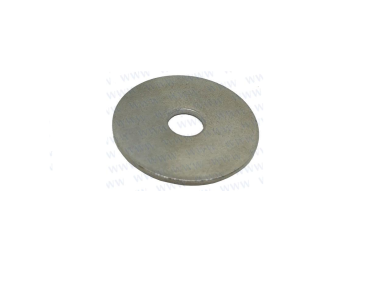

| 21 | PAF25-00000004 | BIG WASHER 6 | 4 | |
| 22 | PAF25-03000006 | 90480-09M12 | DAMPER | 4 |
| 23 | PAF25-03000007 | 90387-06M69 | BUSHING, DAMPER | 4 |
| 24 | PAF25-03000019 | BRACKET ASSY, TENSIONAL SPRING | 1 | |
| 25 | PAF15-05000026 | 90506-18010 | SPRING, TENSION | 1 |
| 26 | PAGB/T5783-M6x12 | BOLT, HEXAGON M6X12 | 1 | |
| 27 | PAF25-03020000 | 65W-42816-03 | LOCKING ASSY, TOP COWLING | 1 |
| 28 | PAF15-05000036 | 90386-12M37 | BUSHING B | 1 |
| 29 | PAF15-05000022 | 90386-12MA2 | BUSHING A | 1 |
| 30 | PAF15-05000023 | WASHER, WAVE | 1 | |
| 31 | PAF60-03000100 | LOCKING HANDLE, TOP COWLING | 1 | |
| 32 | PAF15-05000009 | 6BL-44391-00 | NIPPLE, PLASTIC | 1 |
| 33 | PAF40-03000600W | 8M0042300 | SWITCH ASSY, TILT | 1 |
| 34 | PAF40-03000008 | JACKET, TILT SWITCH | 1 | |
| 35 | PAT85-03000004 | JACKET, BATTERY LINE | 1 | |
| 36 | PAF25-03000022W | JACKET, WATER PIPE | 1 | |
| 37 | PAF25-03000002 | 62Y-42716-00 | SEAL, BOTTOM COWLING | 1 |
| 38 | PAF60-00000014 | COVER, UPPER CASING | 1 | |
| 39 | PAGB/T818-M6x25 | SCREW, PAN HEAD M6X25 | 2 |
-
Yamaha / Parsun Damper Bushing (90387-06M69)Vanaf € 8,95 € 7,40
-
Yamaha / Parsun Grommet / Damper (90480-09M12)Vanaf € 4,95 € 4,09
-
Yamaha / Parsun Seal/Gasket (6FM-83589-00)Vanaf € 4,95 € 4,09
-
Yamaha / Parsun Bolt M6X30 (90109-06M82)Vanaf € 4,95 € 4,09
-
Yamaha/Parsun Bushing A (90386-12MA2)Vanaf € 4,95 € 4,09
-
Yamaha/Parsun Spring, Tension (90506-18010)Vanaf € 7,95 € 6,57
-
Yamaha/Parsun Bushing B (90386-12M37)Vanaf € 12,95 € 10,70
-

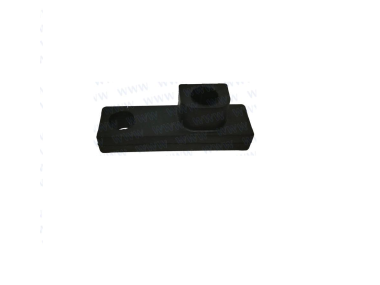

Parsun Bracket (PAF25-03000023W)€ 12,95 € 10,70
-
