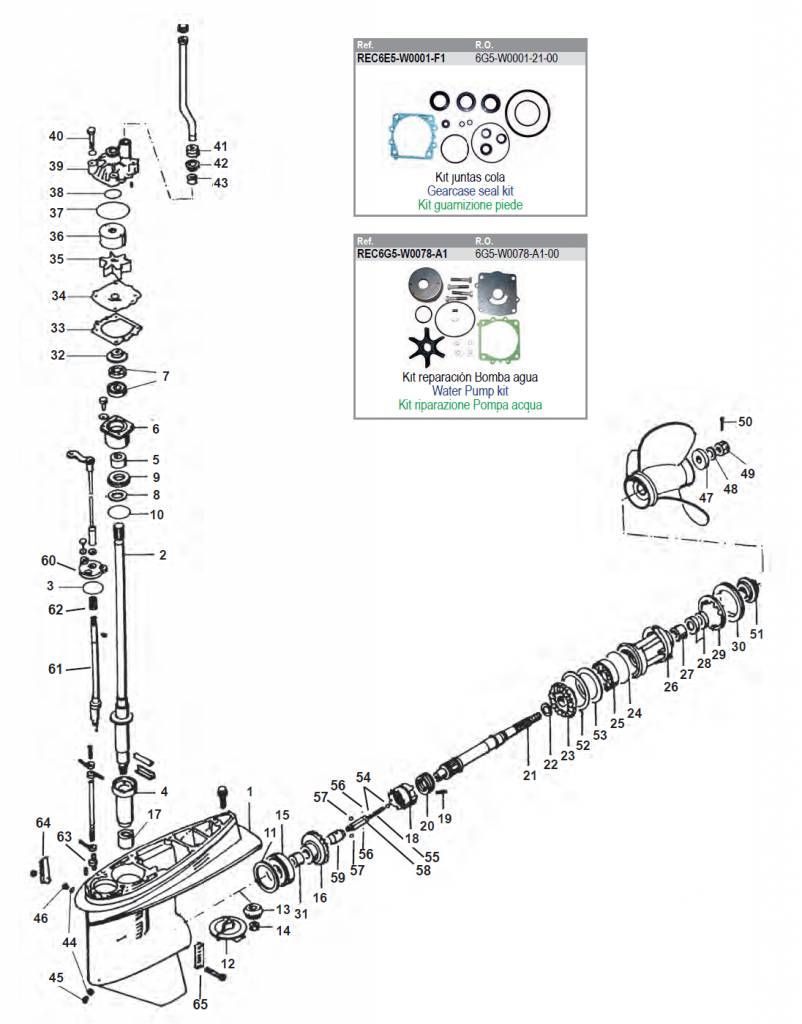

F200 / F225 / F250 V6 4-Takt 2,6L
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving |
| 1 | REC416-A20 | 64D-45300-01-8D | LOWER UNIT ASSY |
| 1 | REC416-A25 | 64D-45300-21-8D | LOWER UNIT ASSY |

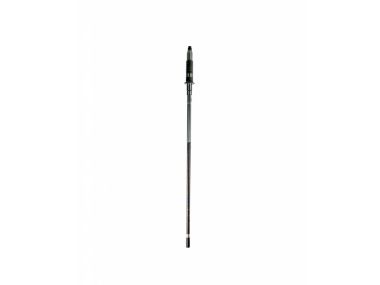

| 2 | REC63P-45501-00 | 63P-45501-00 | DRIVE SHAFT 20” |
| 2 | REC63P-45501-10 | 63P-45501-10 | DRIVE SHAFT 25” |
| 3 | REC93210-58677 | 93210-58677 | O-RING |
| 4 | REC6G5-45536-01 | 6G5-45536-01 | SLEEVE |
| 5 | REC93315-430V5 | 93315-430V5 | BEARING |
| 6 | REC6E5-45331-00-94 | 6E5-45331-00-94 | HOUSSING |
| 7 | REC93101-28M16 | 93101-28M16 | OIL SEAL |
| 8 | REC6E5-45587-01 | 6E5-45587-01 | SHIM |
| 9 | REC93341-930U0 | 93341-930U0 | BEARING |
| 10 | GLM84215 | 93210-54534 | O-RING |
| 11 | REC6G5-45567-01 | 6G5-45567-01 | SHIM |
| 12 | CM6J9-45371-01 | 6J9-45371-01 | ANODE |
| 13 | REC6G5-45551-00 | 6G5-45551-01 | GEAR |
| 14 | REC90170-16M01 | 90170-16M01 | NUT |
| 15 | REC93332-000V3 | 93332-000V3 | BEARING |
| 16 | REC6G5-45631-00 | 6G5-45631-00 | GEAR F.W |
| 17 | |||
| 18 | REC6E5-45631-00 | 6E5-45631-01 | CLUTCH |
| 19 | REC90250-08M07 | 90250-08M07 | PIN |
| 20 | REC6E5-45633-01 | 6E5-45633-01 | SPRING |
| 21 | REC6J9-45611-00 | 6J9-45611-01 | PROPELLER SHAFT |
| 22 | REC90201-30M92 | 90201-30M92 | WASHER |
| 23 | REC6G5-45570-00 | 6G5-45570-02 | GEAR R.V. |
| 24 | REC93210-97M55 | 93210-97M55 | O-RING |
| 25 | REC93306-209U0 | 93306-209U0 | BEARING |
| 26 | 6J9-45332-00-94 | GEAR HOUSING | |
| 27 | REC93315-430U8 | 93315-430U8 | BEARING |
| 28 | REC93101-30M17 | 91301-30M17 | OIL SEAL |
| 29 | REC6G5-45383-01 | 6G5-45383-01 | WASHER |
| 30 | REC6G5-45384-00 | 6G5-45384-00 | NUT |
| 31 | REC93315-425V3 | 93315-425V3 | BEARING |
| 32 | REC6E5-45344-00 | 6E5-45344-00 | OIL SEAL |
| 33 | REC6E5-44315-00 | 6E5-44315-A0 | GASKET |
| 34 | REC6G5-44323-00 | 6G5-44323-00 | Outer plate |
| 35 | REC6E5-44352-01 | 6E5-44352-00 | IMPELLER |
| 36 | REC6E5-44322-00/41 | 6E5-44322-00 | INSERT CUP – MODERN |
| 37 | REC93210-86M38 | 93210-86M38 | O-RING |
| 38 | REC93210-37M67 | 93210-37M67 | O-RING |
| 39 | REC6E5-44311-00 | 6E5-44311-00 | W.P. HOUSING –MODERNO |
| 40 | REC97080-08045 | 97080-08045 | BOLT |
| 41 | GLM38301 | 6E5-44366-00 | DAMPER |
| 42 | REC6E5-44312-00 | 6E5-44312-00 | CAP |
| 43 | GLM38300 | 6E5-44365-00 | SEAL |
| 44 | REC90430-08020 | 90430-08020 | GASKET |
| 45 | REC688-45341-00 | 688-45341-00 | PLUG |
| 46 | REC90340-08014 | 90340-08M04 | PLUG |
| 47 | REC688-45997-00 | 688-45997-01 | SPACER |
| 48 | GLM21221 | 92990-18200 | WASHER |
| 49 | REC90171-18M04 | 90171-18M04 | NUT |
| 50 | REC91490-40030 | 91490-40030 | PIN |
| 51 | REC6E5-45987-00 | 6E5-45987-00 | Spacer |
| 53 | REC6G5-45576-10 | 6G5-45576-00 | WASHER |
| 54 | REC93511-32027 | 93511-32027 | BALL |
| 55 | REC90501-16M37 | 90501-16M37 | SPRING |
| 56 | REC93503-16003 | 93503-16003 | BALL |
| 57 | REC93507-32031 | 93507-32031 | BALL |
| 58 | REC6E5-45634-01 | 6E5-45634-01 | SHIFT SLIDE |
| 59 | REC6E5-45641-03 | 6E5-45641-03 | SHIFTER |
| 60 | REC6E5-45321-00 | 6E5-45321-00 | PLATE |
| 61 | REC6G5-44150-02 | 6G5-44150-02 | SHIFT SHAFT |
| 62 | REC90501-11M18 | 90501-11M18 | SPRING |
| 63 | REC6E5-45378-00 | 6E5-45378-00 | Nipple hose |
-
