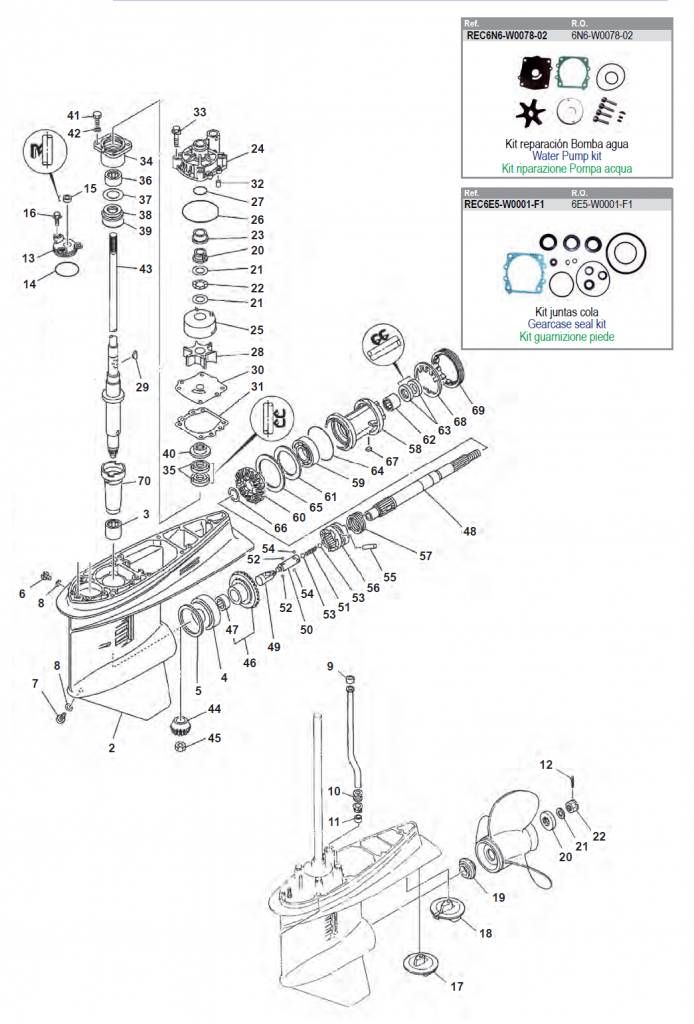

115 PK / 130 PK

Nr.	Bestelnummer:	Yamaha OEM:	Omschrijving:
	GLM12286	6N6-W0078-02	Water pump kit
	GLM87838	6E5-W0001-C1 (130C) 6E5-W0001-F1 (115C)	Gear case seal set
1	REC405-A20	6E5-45300-16-8D	LOWER UNIT ASSY
1	REC405-A25	6E5-45300-26-8D	LOWER UNIT ASSY
3	REC93315-628U9	93315-628U9	Bearing
4	REC93332-000U7	93332-000U7	Bearing
5	REC6E5-45567-01	6E5-45567-01-60	SHIM
6	MAL9-72653	90340-08M04	Plug, Straight screw
7	REC688-45341-00	688-45341-00	Plug drain
8	REC90430-08020-00	90430-08020	Gasket
9	GLM38300	6E5-44365-00	Damper
10	GLM38301	6E5-44366-00	Damper
11	GLM38300	6E5-44365-00	Damper, Water seal
12	REC91490-40030	91490-40030	Pin, cotter
13	REC6E5-45321-00	6E5-45321-00	PLATE
14	GLM84240	93210-58144	O-ring
15	REC93106-09014	93106-09014	Oil seal
16	REC90119-06M10	90119-06M10	BOLT WITH WASHER
17	GLM12744	6E5-45371-10	Tab-trim
18	REC6E5-45371-01	6E5-45371-01	Tab-trim
19	REC6E5-45987-00	6E5-45987-01	Spacer
20	REC688-45997-00	61A-45538-00	Spacer
21	GLM21221	92990-18200	Washer
22	REC90171-18M04	REC90171-18M04	Nut, Castle
23	REC61A-45527-00	61A-45527-00	COLLAR, DRIVE SHAFT
24	MAL9-43252	61A-44311-01	Housing, water pump
25	REC61A-44322-02	61A-44322-02	Insert, Cartridge
26	REC93210-86M38	93210-86M38	O-ring
27	REC93210-37160	93210-37160	O-ring
28	GLM89930	6E5-44352-01	Impeller
29	REC90280-04M05	90280-04M05	Key, Woodruff
30	REC6E5-44323-00-40	6E5-44323-00	OUTTER PLATE, CARTRIDGE
31	REC6E5-44315-00	6E5-44315-A0	Gasket, Water pump
32	GLM12808	93606-12019	Pin, dowel
33	REC90119-08M14	90119-08M14	Bolt, With washer

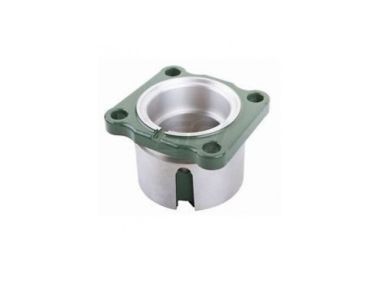

34	REC6E5-45331-00-94	6E5-45331-0094	Housing, bearing
35	REC93101-28M16	93101-28M16	Oil seal
36	REC93317-330U2	93317-330U2	Bearing
37	REC6E5-45587-01	6E5-45587-01	SHIM
38	REC93341-930V2	93341-930V2	Bearing
39	GLM84215	93210-55M14	O-ring
40	REC6E5-45344-00	6E5-45344-00	Cover, Oil seal
42	GLM21720	92995-08600	WASHER
43	REC6E5-45551-01	6E5-45501-01	DRIVE SHAFT COMP
43	REC6E5-45501-21	6E5-45501-21	DRIVE SHAFT COMP
44	REC6E5-45551-00	6E5-45551-02	Pinion
45	REC90170-16M01	90170-16M01	Nut
46	REC6E5-45560-00	6E5-45560-01	Pinion
47	REC93315-425U7	93315-425U7	Bearing
48	REC6E5-45611-00	6E5-45611-01	Shaft, Propeller
49	REC6E5-45641-03	6E5-45641-02	SHIFTER
50	REC6E5-45634-01	6E5-45634-01	SLIDE, SHIFT
51	REC90501-16M37	90501-16M37	SPRING, COMPRESSION

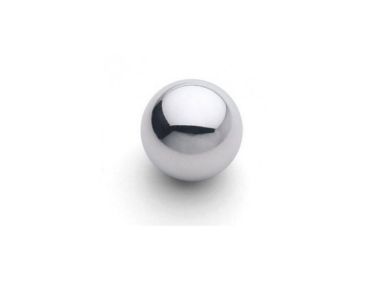

52	REC93507-32031	93507-32031	BALL
53	REC93511-32027	93511-32027	BALL
54	REC93503-16003	93503-16003	BALL
55	REC90250-08M07	90250-08M07	Pin, Straight
56	REC6E5-45631-00	6E5-45631-01	Clutch, dog
57	REC6E5-45633-01	6E5-45633-01-00	Ring, Cross pin
58	REC6E5-45332-00-94	6E5-45332-00-94	HOUSING, BEARING
59	REC93306-208U0	93306-208U0	Bearing
60	REC6E5-45570-00	6E5-45571-01	Pinion
61	REC6E5-45576-00	6E5-45576-00	WASHER, THURST
62	REC93315-430U8	93315-430U8-00	Bearing
63	REC93101-30M17	93101-30M17	Oil seal
64	REC93210-86M39	93210-86M39	O-ring
66	REC90201-30M92	90201-30M92	Washer, plate
67	REC90282-04010	90282-04010	Key, straight
68	REC688-45383-01	688-45383-02	Washer, claw
69	REC688-45384-00	688-45384-00	Nut
70	REC6E5-45536-00	6E5-45536-00	SLEEVE
