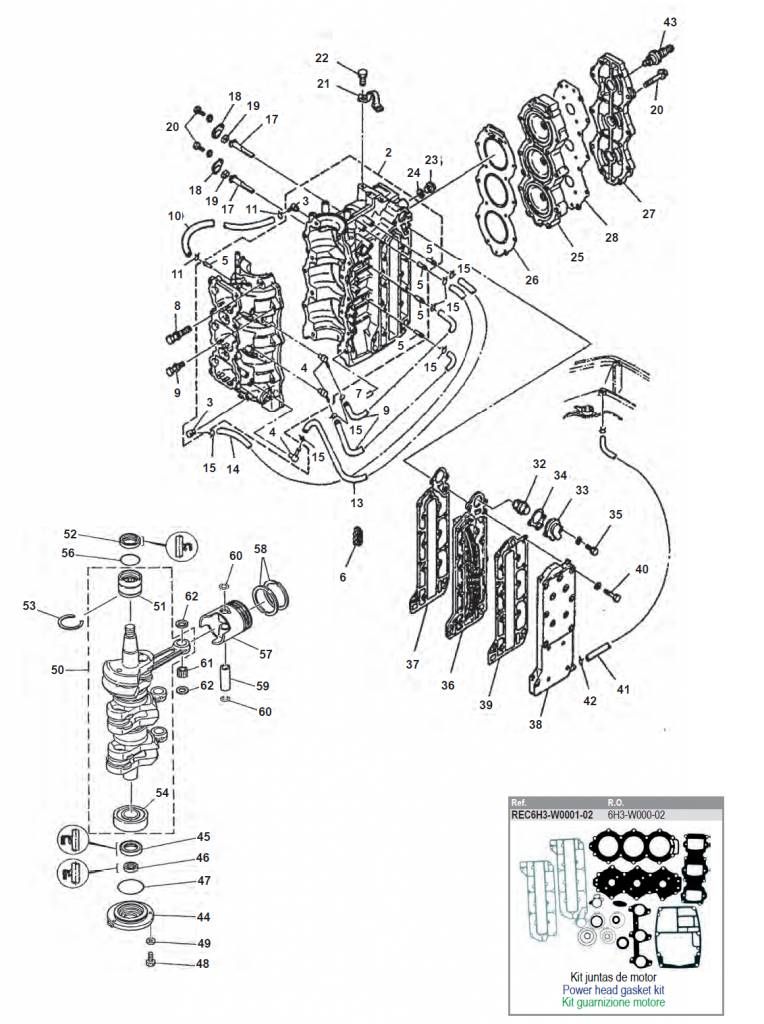

50 / 60 / 70 PK 2-Takt 3-Cil. Blok
| Nr | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| REC6H3-W0001-02 | 6H3-W0001-02 | Pakkingset | |
| 3 | REC688-11370-00 | 688-11370-01 | Check valve assy |
| 4 | REC650-11370-00 | 650-11370-01 | Check valve assy |
| 12 | REC90445-07MA3 | 90445-07M02 | HOSE (L167) |
| 16 | PAF25-05000016 | 90464-07M05 | CLAMP |
| 17 | CM6H3-11325-01 | 6H3-11325-01 | ANODE |
| 23 | PAF15-04000002 | 90340-14M00 | PLUG STRAIGHT SCREW |
| 24 | REC90430-14115 | 90430-14115 | Gasket |
| 26 | REC6H3-11181-A0 | 6H3-11181-A1 | Gasket, head |
| 28 | REC6H3-11193-A1 | 6H3-11193-A1 | Gasket, Cover |

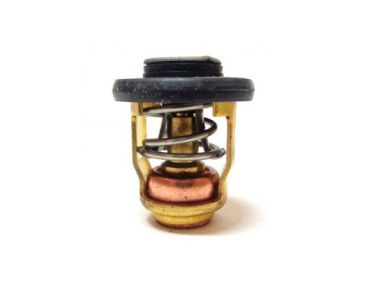

| 32 | REC6H3-12411-10 | 6H3-12411-10 | THERMOSTAT |
| 34 | REC6H3-12414-A1 | 6H3-12414-A1 | Gasket, cover |
| 37 | REC6H3-41112-A0 | 6H3-41112-A0 | Gasket, exhaust cover |
| 39 | REC6H3-41114-A0 | 6H3-41114-A0 | Gasket, outer cover |
| 43 | NGKBR8HS-10 | NGKBR8HS-10 | Plug, spark |
| 45 | REC93102-30M23 | 93102-30M23 | Oil seal |
| 46 | REC93106-18M01 | 93106-18M01 | Oil seal |
| 47 | REC93210-65M50 | 93210-65M50 | O-ring |
| 49 | PAGB/T97.1-85 | 92995-06600 | WASHER |
| 51 | REC93311-636U6 | 93311-636U6 | Bearing |
| 52 | REC93102-36M24 | 93102-36M24 | Oil seal |
| 53 | REC93440-49M04 | 93440-49M04 | CIRCLIP |
| 54 | REC93306-306V1 | 93306-306V1 | BEARING |
| 56 | REC93210-46M16 | 93210-46M16 | O-ring |

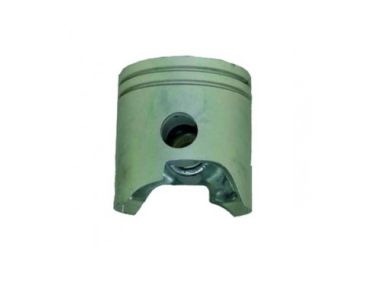

| 57 | REC6H3-11631-01 | 6H3-11631-01-96 | Piston (STD) |
| REC6H3-11635-01 | 6H3-11635-01 | Piston (0.25MM o/s) | |
| REC6H3-11636-01 | 6H3-11636-01 | Piston (0.50MM o/s) | |
| 58 | REC6K5-11601-02 | 6K5-11601-02 | Piston ring set (STD) |
| REC6K5-11601-12 | 6K5-11601-12 | Piston ring (0.25MM o/s) | |
| REC6K5-11601-22 | 6K5-11601-22 | Piston ring (0.50MM o/s) | |
| 59 | REC6H3-11633-00 | 6H3-11633-00 | Pin, Piston |
| 60 | REC688-11634-00 | 688-11634-10 | Piston pin |
| 61 | REC93603-18M09 | 93603-18M09 | Pin dowel |
| 62 | REC90201-20417 | 90201-20417 | Washer plate |
-
Yamaha Oil Seal 50 / 60 / 70 HP (93106-18M01-00)Vanaf € 8,95 € 7,40
-
Yamaha Oil Seal 50 / 60 / 70 HP (93102-30M23-00)Vanaf € 12,95 € 10,70
-
Yamaha / Parsun O-ring 20 / 25 / 30 / 40 / 50 / 55 / 60 / 70 hp 93210-65M50Vanaf € 7,95 € 6,57
-
Yamaha/Parsun Clamp (90464-07M05)Vanaf € 4,95 € 4,09
-
Yamaha O-ring 9.9 t/m 80 hp 93210-46M16Vanaf € 7,95 € 6,57
-
Yamaha / Mariner / Parsun Plate washer 20 t/m 85 hp 90201-20417 12-81831MVanaf € 7,95 € 6,57
-
Yamaha / Mercury 4/5A 6/8 B + E8D t/m 85 pk 650-11370-01 Check valve assyVanaf € 16,95 € 14,01
-
Yamaha Pakking Set P60 PK 91, 70 PK 84-91 (6H3-W0001-02)Vanaf € 189,95 € 156,98
-
Yamaha Thermostaat 50 / 60 / 70 pk 6H3-12411-10, 6H3-12411-11Vanaf € 19,95 € 16,49
-
Yamaha Cover Gasket 60 t/m 70 pk (6H3-11193-A1)€ 66,95 € 55,33
