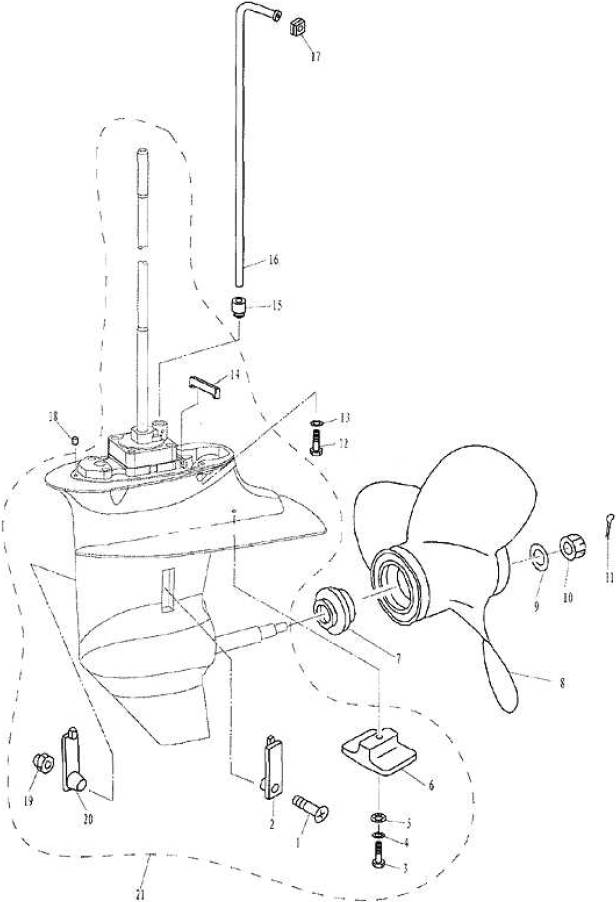

Lower Casing & Drive 2
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 1 | PAGB/T820-85 | 90149-05M13, 90152-05011-00 | SCREW |
| 2 | PAF15-06000003 | 6G1-45214-00 | WATER INLET B |
| 3 | PAGB/T5783-2000 | BOLT, HEXAGON | |
| 4 | PAGB/T97.1-85 | WASHER | |
| 5 | PAGB/T861.1-87 | 92990-06300 | WASHER, LOCKING |
| 6 | PAF15-06000004 | 61N-45251-00, 61N-45251-01-00 | ANODE |
| 7 | PAF15-06000015 | 6E7-45987-01 | CUSHION, PROPELLER |
| 8 | PAF15-06090000 | 63V-45952-00-EL11, 63V-45952-10 | PROPELLER ASSY |
| 9 | PAGB/T96-85 | WASHER 10 | |
| 10 | PAF15-06000016 | 90171-10M01 | NUT, HEXAGON |
| 11 | PAGB/T91-86 | 91490-16010, 91490-25030, 91490-30022 | PIN, COTTER |
| 12 | PAGB/T5783-2000 | BOLT, HEXAGON | |
| 13 | PAGB/T97.1-85 | WASHER | |
| 14 | PAF15-06020005 | 63V-45375-00 | SEAL, RUBBER |
| 15 | PAF15-02010003 | 63V-44368-00 | UPPER SEAL, WATER PIPE |
| 16 | PAF15-02000005 | 66M-44361-10 | TUBE, WATER |
| 16 | PAF15-02000005S | 66M-44361-00 | TUBE, WATER SMALL |
| 17 | PAF15-02000006 | 63V-44365-10 | QUADRATE SEAL, WATER PIPE |
| 18 | PAF15-00000013 | 93604-10M03, 93604-12M07 | PIN, DOWEL |
| 19 | PAGB/T6182-86 | NUT, LOCKING | |
| 20 | PAF15-06000002 | 63V-45215-00 | WATER INLET A |
| 21 | PAF15-06100000 | 66M-45300-11-4D, 66M-45300-118D | LOWER CASING ASSY |
| 21 | PAF15-06100000S | 66M-45300-01-4D, 66M-45300-02-4D, 66M-453000-28D | LOWER CASING ASSY |
-
