Lower Casing & Drive 1

Nummer:	Bestelnummer:	Yamaha OEM:	Omschrijving:
1	PAF15-06000001		LOWER CASING
2	PAF4-03000023	6E0-45316-09, 90340-08002, 90340-08M04	PLUG, OIL HOSE
3	PAF4-03000024	90340-08002, 90430-08020, 93210-06ME6	GASKET
4	PAF15-06000010-1	664-45567-01, 664-45567-01-10	SHIM (t: 0.10mm)
4	PAF15-06000010-2	664-45567-10	SHIM (t: 0.12mm)
4	PAF15-06000010-3	664-45567-20	SHIM (t: 0.15mm)
4	PAF15-06000010-4	664-45567-30	SHIM (t: 0.18mm)
4	PAF15-06000010-5	664-45567-40	SHIM (t: 0.30mm)
4	PAF15-06000010-6	664-45567-50	SHIM (t: 0.40mm)
4	PAF15-06000010-7	664-45567-60	SHIM (t: 0.50mm)
5	PANTN 4T-30205 1L		BEARING
6	PAF15-06010000	6E7-45560-01	GEAR, FORWARD
7	PAF15-06070004	90250-05010	PIN, CLUTCH
8	PAF15-06070003	682-45631-00	CLUTCH, DOG
9	PAF15-06070005	648-45633-00, 648-45633-11	RING, CLUTCH
10	PAF15-06070006	650-45635-00	PLUNGER, SHIFT
11	PAF15-06070002	90501-14M06, 90501-14M09	SPRING, CLUTCH
12	PAF15-06070001	683-45611-00	SHAFT, PROPELLER
13	PAF15-06070007	90201-17682	WASHER, REVERSE GEAR
14	PAF15-06080005	6E7-45571-00	GEAR, REVERSE
15	PAF15-06080006-1	626-45577-00, 626-45577-00-01	SHIM (t: 0.10mm)
15	PAF15-06080006-2	626-45577-10	SHIM (t: 0.20mm)
15	PAF15-06080006-3	626-45577-20	SHIM (t: 0.30mm)
15	PAF15-06080006-4	626-45577-30	SHIM (t: 0.40mm)
15	PAF15-06080006-5	626-45577-40	SHIM (t: 0.50mm)
16	PAGB/T276-94	93306-004UO	BEARING
17	PAF15-06080002	93210-57M09	O-RING A, COVER
18	PAF15-06080003	93210-56M80	O-RING B, COVER

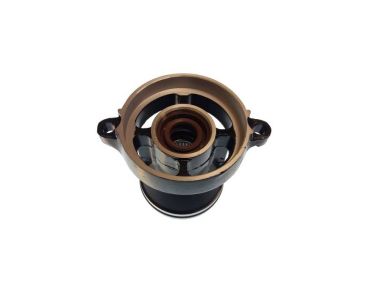

19	PAF15-06080001	683-45361-02-4D, 683-45361-028D	COVER, LOWER CASING
20	PAKOYO 17BM2312		BEARING
21	PAF15-06080004	93101-17054	OIL SEAL
22	PAF15-06080000		COVER ASSY, LOWER CASING
23	PAGB/T97.1-85		WASHER 6
24	PAGB/T5783-2000		BOLT, HEXAGON M6X20
25	PAF15-06000005	63V-45315-A0	WASHER
26	PANSK F1420		BEARING
27	PAF15-06000006	63V-45536-00	BUSHING, NYLON
28	PAF15-06020001	63V-45331-00-5B, 63V-45331-00-CA	BASE, DRIVE SHAFT
29	PAF15-06020004	93210-06ME6	O-RING
30	PAGB/T97.1-85		WASHER 8
31	PAGB/T5783-2000		BOLT, HEXAGON M8X25
32	PAF15-06020002	626-45316-09, 90381-14020	BEARING
33	PAF15-06020003	93101-20001	OIL SEAL, DRIVE SHAFT
34	PAF15-06040000		DRIVE SHAFT ASSY L
34	PAF15-06040000S	63V-45510-00, 999990305800	DRIVE SHAFT ASSY S
35	PAF15-06000013	664-44338-00	KEY, WOODRUFF
36	PAF15-06000007	63V-44323-00	OUTER PLATE
37	PAJASO F404-96	93210-44398, 93210-44704	O-RING
38	PAF15-06050000	63V-44352-01	IMPELLER
39	PAF15-06060002	63V-44322-40	INNER SHELL, WATER PUMP
40	PAF15-00000013	93604-10M03, 93604-12M07	PIN, DOWEL
41	PAF15-06060001		WATER PUMP HOUSING
42	PAF15-06060004	647-44366-00	SEAL
43	PAF15-06000014	63V-44328-00, 63V-44328-01	FIXED PLATE, WATER PUMP
44	PAGB/T5783-2000		BOLT, HEXAGON M8X45
45	PAF15-06030000	63V-44150-10, 66M-44150-10	CAM ASSY, SHIFT ROD L
45	PAF15-06030000S	63V-44150-00	CAM ASSY, SHIFT ROD S
46	PAF15-06000020	93341-41414	BEARING
47	PAF15-06000008	6E8-45587-10, 6E8-45587-10-13	SHIM PINION (t: 1.13mm)
47	PAF15-06000009	6E8-45587-30	SHIM PINION (t: 1.20mm)
48	PAF15-06000011	63V-45551-00	PINION
49	PAF15-06000012	90179-08M06	NUT, PINION
50	PAF15-0600000L	66M-45300-11-4D, 66M-45300-118D	COMPLETE GEAR HOUSING LARGE
50	PAF15-0600000S	66M-45300-01-4D, 66M-45300-02-4D, 66M-453000-28D	COMPLETE GEAR HOUSING SMALL
