Camshaft
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 1 | PAGB/T1099-1979 | 90280-03017-00, 90280-03M01 | KEY, WOODRUFF |
| 2 | PAF15-07010027 | 90480-12072 | RUBBER RING B |
| 3 | PAF15-07030003 | 66M-11536-10 | BELT PULLEY, TIMING |
| 4 | PAF15-07030004 | 66M-11557-00 | WASHER |
| 5 | PAF15-07030005 | 90170-28M37 | NUT |

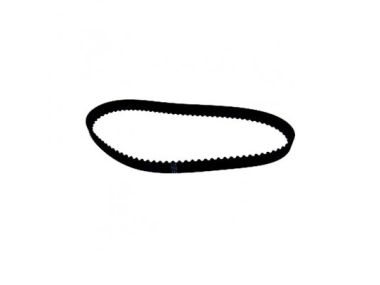

| 6 | PAF15-07000002 | 66M-46241-00 | BELT, TIMING |
| 7 | PAF15-07000024 | 66M-46297-00 | COVER, DUST |
| 8 | PAF15-07050003 | 90480-10M16 | RING RUBBER A |
| 9 | PAGB/T5783-2000 | BOLT | |
| 10 | PAGB/T5287-85 | 90201-06M94 | BIG WASHER |
| 11 | PAF15-07040018 | 66M-11537-00, 66M-11537-00-94 | BELT PULLEY, DRIVEN |
| 12 | PAF15-07040017 | 90201-13201 | WASHER |
| 13 | PAF15-07040008 | 93102-18M21 | OIL SEAL |
| 14 | PAF15-07040200 | 66M-12170-00 | CAMSHAFT ASSY |
| 15 | PAF15-07040016 | 66M-13329-10 | MAT, QIRPROOF |
| 16 | PAF15-07040500 | 66M-13300-10 | OIL PUMP ASSY |
| 17 | PAGB/T5783-2000 | BOLT | |
| 18 | PAGB/T97.1-85 | WASHER |
-
