Starter Assembly
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAGB/T5783-M5x12 | 68D-E5362-00 | BOLT M5x12 | 1 |
| 2 | PAGB/T96-5 | BIG WASHER 5 | 1 | |
| 3 | PAF40-05080200 | TIGHTWIRE ASSY, ARRESTER | 1 | |
| 4 | PAF25-05160002 | 90468-10005 | SPRING CLAMP | 1 |
| 5 | PAF40-05080000 | STARTER ASSY | 1 | |
| 6 | PAF25-05160012 | 65W-81639-10 | RUBBER JACKET | 1 |
| 7 | PAGB/T5783-M6x25 | 10-82500925 | BOLT M6x25 | 4 |
| 8 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 6 |
| 9 | PAF4-04130102 | 6G1-15779-00 | COVER, HANDLE | 1 |

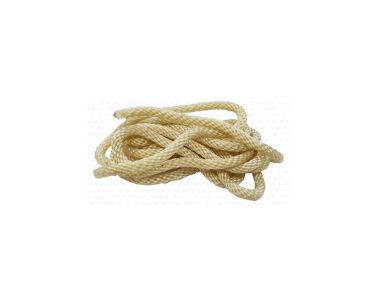

| 10 | PAF25-05160019 | 90790-48193-00 | START LINE | 1 |
| 11 | PAF25-05160501 | 689-15755-01 | STARTER HANDLE | 1 |
| 12 | PAF25-05160021 | 697-15789-0000 | DAMPER, HANDLE | 1 |
| 13 | PAF40-05080001 | SEAL, FROTHY RUBBER | 1 | |
| 14 | PAF40-05080100 | STARTER CASING ASSY | 1 | |
| 15 | PAT40-05110002 | 6F5-15752-00 | CHAIN WHEEL,STARTER | 1 |

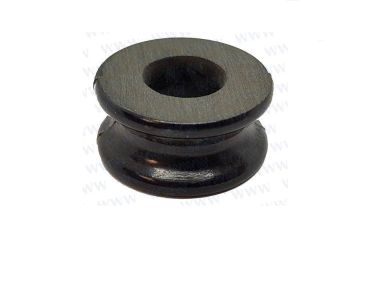

| 16 | PAT40-05110003 | 663-15753-00 | BUSHING, CHAIN WHEEL | 1 |
| 17 | PAGB/T96-6 | BIG WASHER 6 | 1 | |
| 18 | PAGB/T93-6 | SPRING-WASHER | 1 | |
| 19 | PAGB/T5783-M6x30 | 97080-06030 | BOLT M6x30 | 1 |
| 20 | PAF25-05160014 | 65W-15713-00 | SEAT,VOLUTE SPRING | 1 |

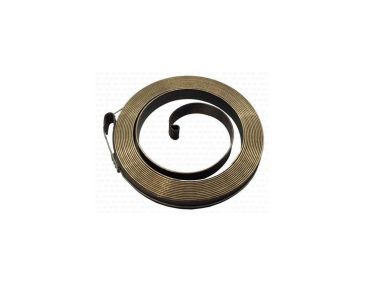

| 21 | PAF25-05160015 | VOLUTE SPRING | 1 | |
| 22 | PAF25-05160001 | 65W-15794-00 | BRAKE | 1 |
| 23 | PAF25-05160005 | 65W-15784-00 | SPRING, PAWL | 1 |
| 24 | PAF25-05160003 | 65W-15767-01 | TWIST SPRING, BRAKE | 1 |
| 25 | PAF25-05160004 | 65W-15735-01 | PAWL, BRAKE | 1 |
| 26 | PAF25-05160006 | 65W-15414-00 | FIXED PLATE, BRAKE | 1 |
| 27 | PAGB/T848-5 | SMALL WASHER 5 | 3 | |
| 28 | PAGB/T5783-M5x30 | BOLT M5x30 | 3 | |
| 29 | PAF25-05160300 | WHEEL ASSY, START-UP | 1 | |
| 30 | PAF25-05160304 | 65W-15734-00 | WRIST SPRING, PAWL | 2 |
| 31 | PAF25-05160305 | 65W-15741-10 | PAWL, START-UP | 2 |
| 32 | PAGB/T896-6 | COTTER CIRCLIP 6 | 2 | |
| 33 | PAF25-05160016 | 65W-15715-00 | SPRING, PLATE | 1 |
| 34 | PAF25-05160017 | 65W-15716-00 | PLATE, START-UP | 1 |
| 35 | PAF25-05160018 | BOLT, PLATE | 1 | |
| 36 | PAGB/T5783-M6x12 | BOLT M6x12 | 1 | |
| 37 | PAF40-05000035 | FIXED PLATE,TIGHTWIRE | 1 | |
| 38 | PAF15-00000012 | 90468-18008 | SPRING CLAMP Ø1.8 | 1 |
| 39 | PAGB/T5783-M6x16 | BOLT M6x16 | 1 |
-
Yamaha / Parsun F40 Starter Chain Wheel (6F5-15752-00)Vanaf € 8,95 € 7,40
-
Parsun SPRING, DRIVE PLATE F20 & F25 (PAF25-05160016)Vanaf € 6,95 € 5,74
-
Parsun PLATE, DRIVE F20 & F25 (PAF25-05160017)Vanaf € 10,95 € 9,05
-
Yamaha Starter Handle 9.9D/15D 25NE/20DM (689-15755-00)Vanaf € 12,95 € 10,70
-
Yamaha/Parsun Spring (90468-10005)€ 6,95 € 5,74
-
Parsun F40 Starter Assembly (PAF40-05080000)€ 389,00 € 321,49
