Power Trim & Tilt

NR:	Bestelnummer:	OEM:	Omschrijving:	Aantal:
1	PAT40-10000000	65W-43800-00-4D	HYDRAULIC TILT ASSY	1
2	PAT40-10010000		LOCATING CYLINDER ASSY	1

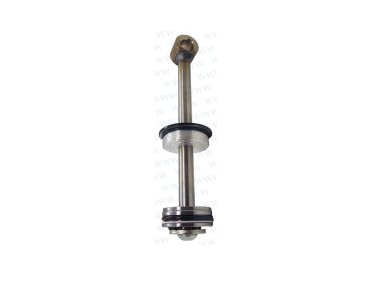

3	PAT40-10030000		LOCATING CYLINDER & PISTON	1
4	PAT40-10030202		OIL SEAL 15x23x5	1
5	PAT40-10030200		PISTON NUT	1

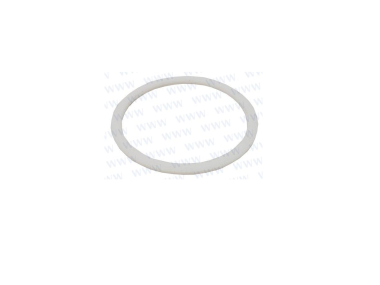

6	PAJISB2407P15T2		CIRCLIP P15T2	1
7	PAJISB2401P15		O-RING Ø14.8x2.4	1

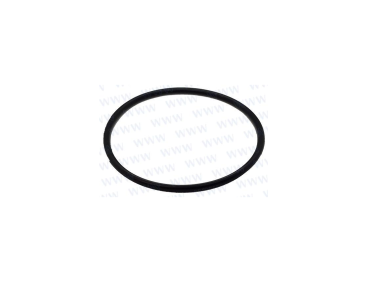

8	PAJASOF40424-045		O-RING Ø44.7x2.4	1
9	PAT40-10030100		SHAFT, TILT ASSY	1
10	PAT40-10030301		PISTON	1
11	PAGB/T879.4-Ø1.5x12		PIN 1.5x12	1
12	PAT85-06020202		BALL 4	12
13	PAT85-06020005		SEAT, SPRING	7
14	PAT40-10030001		SPRING	5
15	PAT40-10030002		WASHER	1
16	PAT40-10030002		WASHER	1
17	PAGB/T70.2-M10x1.25x40		SCREW M10x1.25x40	1
18	PAJISB2401P39		O-RING Ø38.7x3. 5	2
19	PAJISB2407P39T		RING, BACK UP P39T2	1
20	PAT40-10010100		FREE PISTON SUB ASSY	1
21	PAT40-10010101		FREE PISTON	1
22	PAT40-10010102		SPRING	1

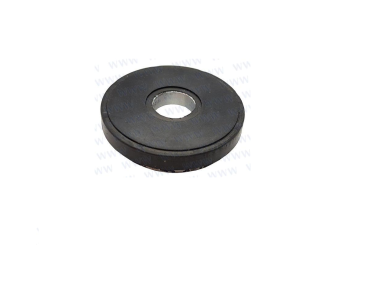

23	PAT40-10010104		SEAL	1

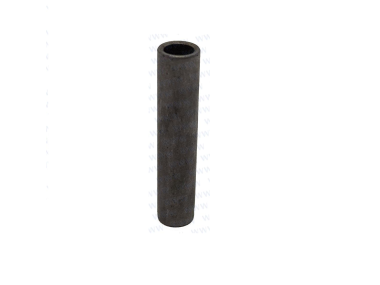

24	PAT40-10010103		BUSH, BOLT	1
25	PAT40-10010105		BUSH, PISTON	1

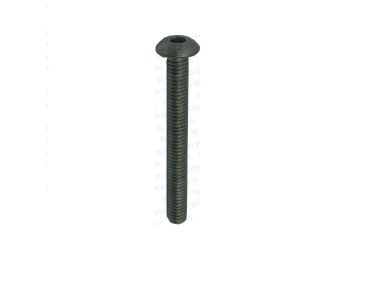

26	PAGB/T70.2-M4x35		SCREW M4x35	1
27	PAF15-07010004	479452	BLOCK, CYLINDER 1/8"	1
28	PAT40-10000002		POSITIONING CYLINDER	1
29	JPAISFG11.2		O-RING Ø10.7xØ1.5	3
30	PAT40-10000001		BALL 1/8	2
31	PAT85-06020014		SPRING, PISTON	2
32	PAT85-06010201	6H1-43816-00	FILTER	1
33	PAJISFG6		O-RING Ø5.5x1.5	4
34	PAT40-10020500	65W-43880-00	TILT MOTOR	1
35	PAGB/T70.1-M6x20		SCREW M6x20	4
36	PAGB/T3452.1-Ø48x2		O-RING Ø48x2	1
37	PAT40-10020004		SPRING	1
38	PAT40-10020003		LINK, MOTOR	1
39	PAGB/T70.1-M4x25		BOLT M4x25	4

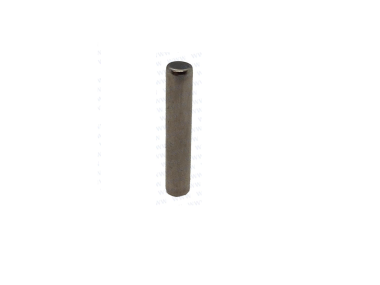

40	PAT85-06010705		ROLLER Ø4x21.8 G2-2-4	2
41	PAT40-10020400		GEAR PUMP ASSY	1
42	PAJISFG5		O-RING Ø4.5xØ1.5	2
43	PAT40-10020002		SPRING	1
44	PAT85-06010205	6H1-43844-10	PIN, VALVULA SUPORTE	1
45	PAT85-06010207		SEAL, MAIN VALVE	1

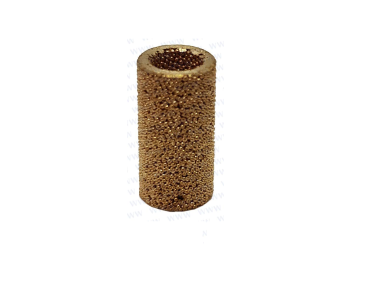

46	PAT40-10020005		FILTER, PUMP	2
47	PAJISFG4		O-RING Ø3.5x1.5	2

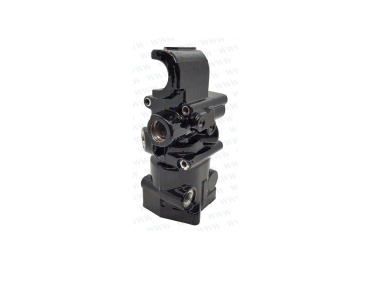

48	PAT40-10020001	67F-43802-00	HOUSING	1
49	PAT40-10020301		PIN, VALVE SUPPORT	1
50	PAJISB2401PJ		O-RING Ø2.8x1.9	1
51	PAJISB2401P8		O-RING Ø7.8x1.9	1
52	PAJISB2401P9		O-RING Ø8.8x1.9	3
53	PAT40-10020302		SEAT, RELIEF VALVE	1
54	PAT40-10020303		SEAT, SPRING	1
55	PAT40-10020304		SPRING, UP RELIEF	1
56	JPAISB 2401 P11		O-RING Ø10.8x2.4	1

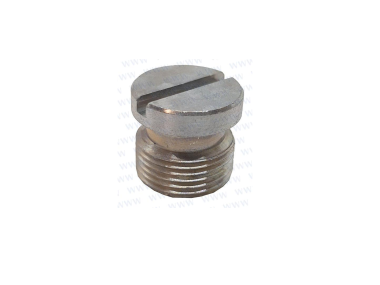

57	PAT40-10020305		SCREW, VALVE LOCK	1
58	PAT85-06010503	67F-43802-00	VALVE SUB ASSY	2
59	PAJISB2401P12.5		O-RING Ø12x1.5	2
60	PAJISFG12		O-RING Ø11.5x1.5	2

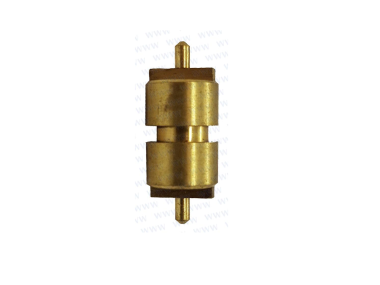

61	PAT85-06010501	6H1-43841-11	PISTON, SHUTTLE	1
62	PAT85-06010009	6H1-43829-00	SCREW	1
63	PAT85-06010601	6H1-43847-00	WASHER, SEAL	2
64	PAT40-10020201		SEAT, SPRING	1

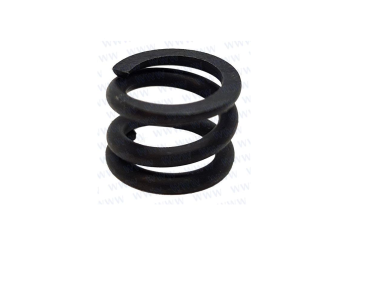

65	PAT40-10020202		SPRING	1
66	PAJISFG10		O-RING Ø9.5x1.5	1
67	PAT85-06010606	6H1-43845-00	SCREW, MANUAL RELEASE	1
68	PAGB/T3452.1-17.5x2.65		O-RING Ø17.5x2.65	1
69	PAGB/T893.1-20		RING, SNAP CIRCLIP 20	1
70	PAGB/T70.1-M6x75		BOLT M6x75	3
71	PAT85-06010002		BLOCK, CYLINDER 1/16”	5
