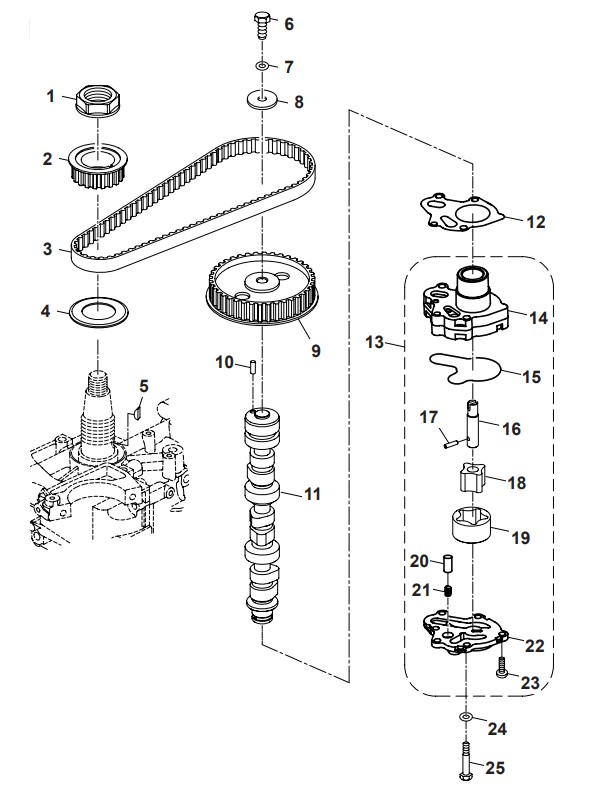

Oil Pump
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF40-05000007 | NUT, TIMING PULLEY | 1 | |
| 2 | PAF25-05000021 | 65W-11536-10 | TIMING PULLEY | 1 |
| 3 | PAF25-05000023 | 65W-46241-00 | TIMING BELT | 1 |
| 4 | PAF40-05000008 | PLATE, TIMING BELT | 1 | |
| 5 | PAF4-04000019 | 90280-04M06 | WOODRUFF KEY | 1 |
| 6 | PAGB/T5785- M10x1.25x40 | BOLT M10x1.25x40 | 1 | |
| 7 | PAGB/T97.1-10 | WASHER 10 | 1 | |
| 8 | PAF25-05050018 | 90201-10M06 | WASHER, DRIVEN PULLEY | 1 |
| 9 | PAF40-05040006 | 833104T1 | DRIVEN PULLEY | 1 |
| 10 | PAF25-05050016 | 93605-14143 | DOWEL PIN, DRIVEN PULLEY | 1 |
| 11 | PAF40-05040200 | 834781T1 | CAMSHAFT ASSY | 1 |
| 12 | PAF40-05040407 | GASKET, OIL PUMP | 1 | |

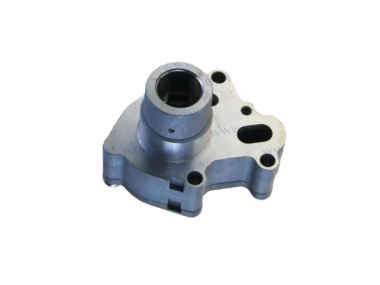

| 13 | PAF40-05040400 | 857087T1 | OIL PUMP ASSY | 1 |
| 14 | PAF40-05040401 | BODY, OIL PUMP | 1 | |
| 15 | PAF40-05040405 | SEAL, OIL PUMP | 1 | |
| 16 | PAF40-05040404 | ROTOR SHAFT, OIL PUMP | 1 | |
| 17 | PAGB/T309 Ø4x15.8 | NEEDLE ROLLER Ø4x15.8 | 1 | |
| 18 | PAF40-05040403 | INNER ROTOR, OIL PUMP | 1 | |
| 19 | PAF40-05040402 | OUTER ROTOR, OIL PUMP | 1 | |
| 20 | PAF15-07110003 | PLUNGER, OIL RELIEF VALVE | 1 | |
| 21 | PAF40-05040408 | SPRING, OIL RELIEF VALVE | 1 | |
| 22 | PAF40-05040406 | COVER, OIL PUMP | 1 | |
| 23 | PAGB/T823-M6x16 | SCREW M6x16 | 2 | |
| 24 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 4 |
| 25 | PAGB/T5782-M6x40 | BOLT M6x40 | 4 |
-
