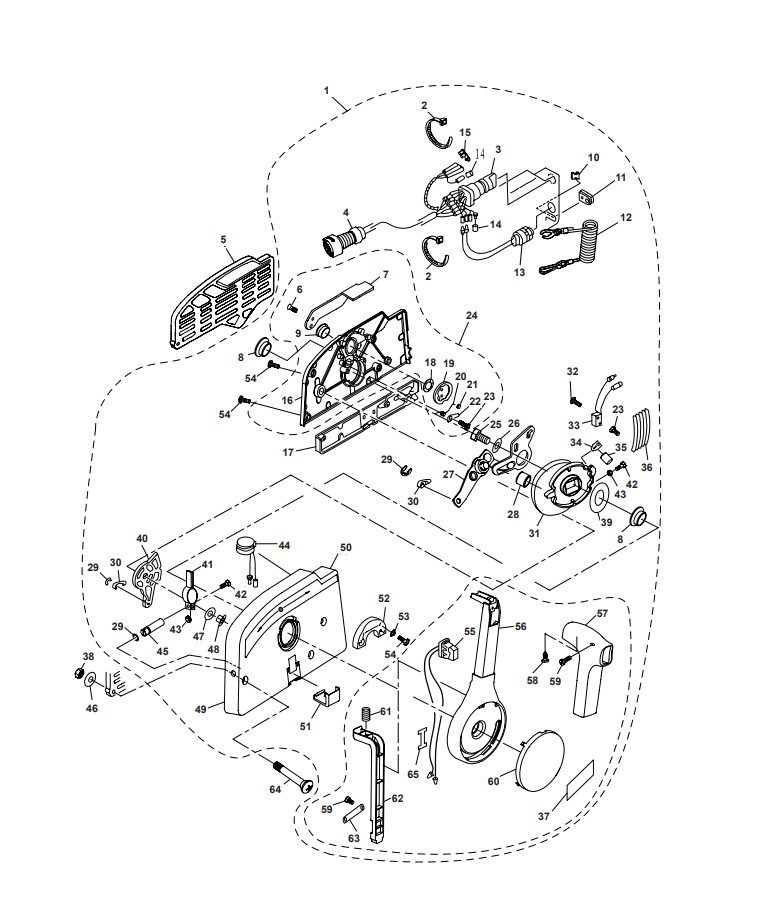

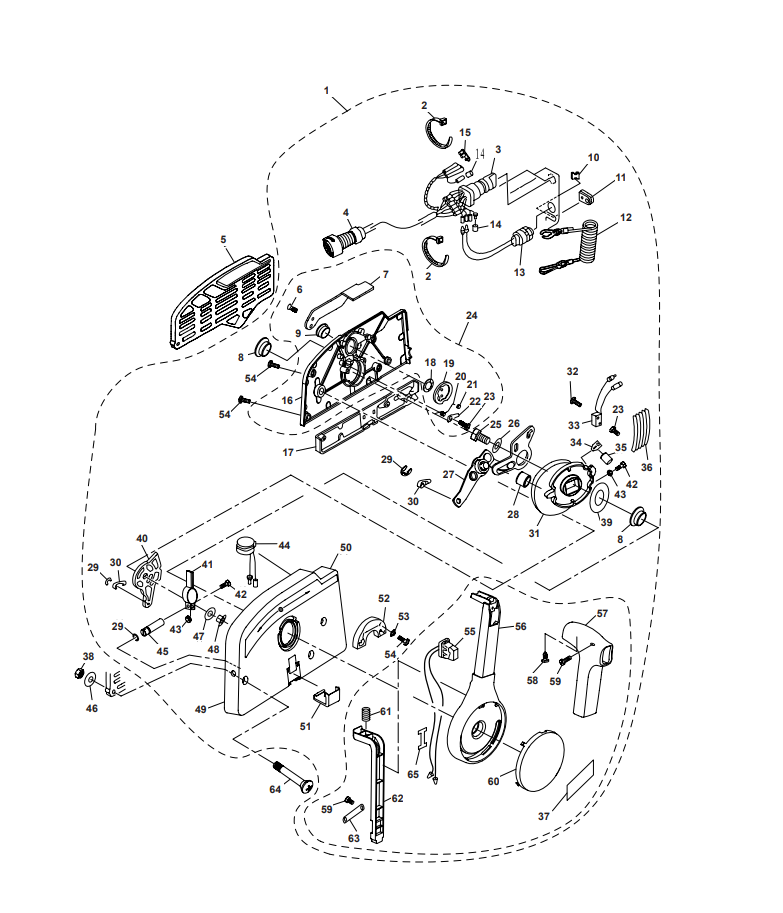

Control Box Assembly

NR:	Bestelnummer:	OEM:	Omschrijving:	Aantal
1	PAF40-13000000EI		CONTROL BOX ASSY (EFI)	1
1	PAF40-13000000		CONTROL BOX ASSY	1
2	PAHT2.5x60		CLAMP	2
3	PAF40-13000200		STARTING SWICH ASSY
3	PAF40-13000200EI		STARTING SWICH ASSY (EFI)	1
4	PAT85-08010100		CONTROL CABLE	1
4	PAF40-08010100E		CONTROL CABLE (EFI)	1
5	PAF15-11000002W		PLATE, CONTROL BOX	1
6	PAGB/T819.2-M5x12		SCREW PAN HEAD M5x12	2
7	PAF15-13020007W		THROTTLE HANDLE, INCHING	1
8	PAF15-13000005W		BUSH,CAM	2
9	PAF15-13020006W		BUSH, HANDLE	1
10	PAF15-11000001W		BLOCK, RUBBER	1
11	PAF15-13000014W		JACKET, CABLE	1
12	PAF4-01090401	682-82556-00	STOPER, HANG ROPE ASSY	1
13	PAF15-13000400W		ENGINE STOP SWICH ASSY	1
14	PAF15-13000203W	90464-09M13	INSULATED PLUG “B	2
15	PAF15-13000202W		INSULATED PLUG “A	1
16	PAF15-13020001W		COVER, CONTROL BOX	1
17	PAF15-13000013W		SMALL COVER, CONTROL BOX	1
18	PAF15-13020005W		WASHER "B”, WAVE	1
19	PAF15-13020100W		LOCKED DISK ASSY	1
20	PAF15-13020002W		TORSION SPRING	1
21	PAF15-13020003W		EACH LOCKED PULLEY	1
22	PAF15-13020004W		PLATE, PULLEY SPRING	1
23	PAGB/T818-M4x6		PAN HEAD SCREW M4x6	2
24	PAF15-13020000W		COVER ASSY, CONTROL BOX	1
25	PAGB/T5783-M8x30	910113-0830	BOLT M8x30	1
26	PAGB/T97.1-8	66M-11327-00-94	WASHER 8	1
27	PAT20-13000500W		MACHINE, CONTROL ACCELEROGRAPH	1
28	PAF15-13000007W		WASHER	1
29	PAGB/T896-6		PIN, COTTER 6	3
30	PAF25-07000007W		CONTROL CABLE TIE IN “B”	2
31	PAF15-13000002W		CAM MECHANISM	1
32	PAGB/T818-M3x14		PAN HEAD SCREW M3X14	2
33	PAF15-13000800W		INCHING SWITCH	1
34	PAF15-13000003W		PLATE	1
35	PAF15-13000004W		PULLEY	1
36	PAF15-13000001W		SHIFT SPRING PLATE “B”	5
37	PAF15-12000016W		MARK 16	1
38	PAGB/T6170-M6		NUT M6	3
39	PAF15-13000008W		WEARABLE PLATE, CAM MACHANISM	1
40	PAF15-13000700W		SHIFT SWING LINK	1
41	PAFl5-13000601W		ADJUSTER FASTNESS ASSY	1
42	PAGB/T5783-M5x25		BOLT M5x25	2
43	PAGB/T6170-M5		NUT M5	2
44	PAF15-13000300W		BUZZER ASSY	1
45	PAF15-13000602W		ADJUSTER PIN	1
46	PAGB/T5287-6	90201-06M94	BIG WASHER 6	3
47	PAF15-13000006W		WEARABLE PLATE	1
48	PAFl5-13000011W		BUSH, SHIFT SWING LINK	1
49	PAF15-13000012W		BRACKET, CONTROL BOX	1
50	PAF15-12000013W		MARK 13	1
51	PAFl5-13000015W		COVER, WATERPROOF	1
52	PAF15-13010010W		BLOCK, CONTROL HANDLE	1
53	PAGB/T956.1-5		WASHER, LOCKED 5	2
54	PAGB/T819.2-M5x18		SCREW, PAN HEAD M5x18	7
55	PAE4-10040100W	703-82563-02	SWITCH ASSY, TILT	1
56	PAF15-13010001W		CONTROL HANDLE	1
57	PAF15-13010002W		CONTROL HANDLE BAR	1
58	PAGB/T84.5-ST4.8x12		SCREW, PAN HEAD ST4.8x12	1
59	PAGB/T818-M4x10		SCREW, PAN HEAD M4x10	3
60	PAFl5-13010009W		COVER, CONTROL HANDLE	1
61	PAF15-13010005W		SPRING, COMPRESSION	1
62	PAF15-13010004W		PART, ORIENTATION CONTROL	1
63	PAF15-13010008W		PLATE, ORIENTATION PART	1
64	PAGB/T820-M6x90		SCREW, PAN HEAD M6x90	3
65	PAE4-07020015W		CHAFING PLATE, WIRE	1
