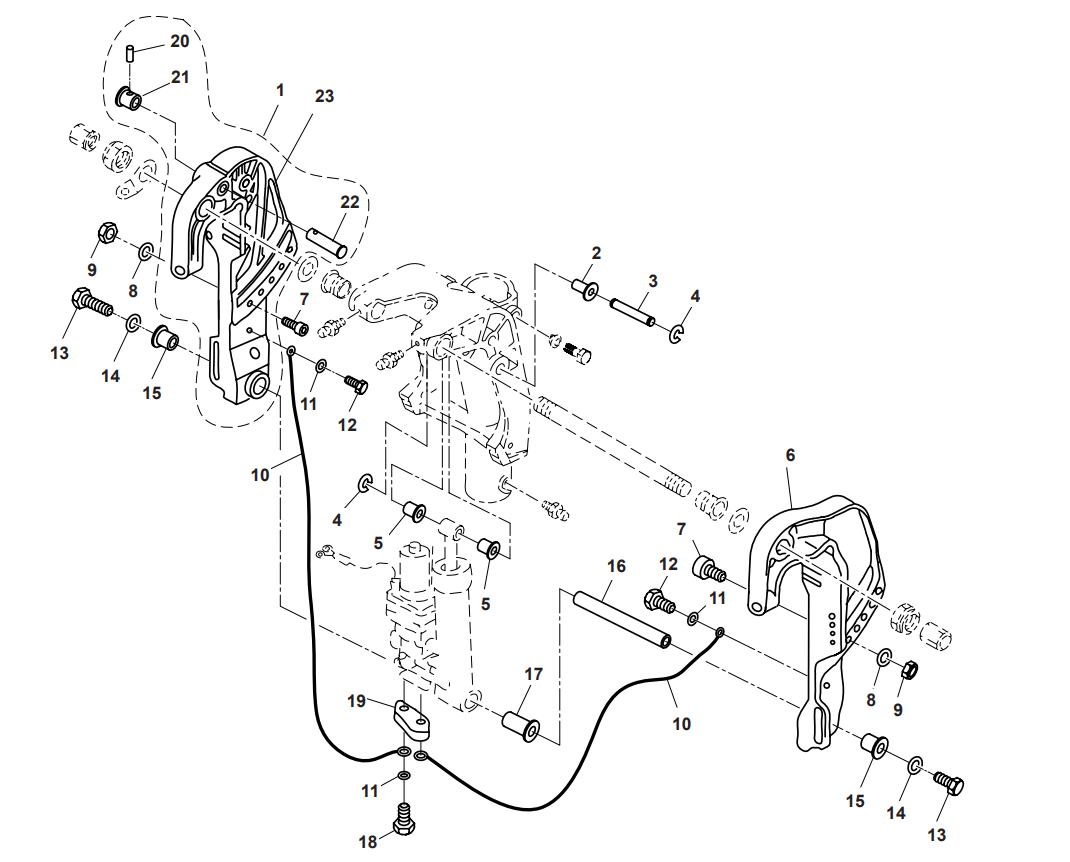

Bracket 3
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAT40-01010100-A | RIGHT BRACKET ASSY | 1 | |
| 2 | PAE10-01010003 | BUSH | 1 | |
| 3 | PAE10-01010001 | PIN | 1 | |
| 4 | PAGB/T896-9 | CIRCLIP 9 | 2 | |
| 5 | PAF25-01010324 | 90386-12MA0 | BUSH | 2 |
| 6 | PAT40-01010001-A | LEFT BRACKET | 1 | |
| 7 | PAGB/T10.1-M10x1.5x45 | SCREW M10x1.5x45 | 2 | |
| 8 | PAGB/T97.1-10 | WASHER 10 | 2 | |
| 9 | PAGB/T889.1-M10x1.5 | NUT, SELF-LOCKING M10x1.5 | 2 | |
| 10 | PAE10-01010009 | WIRE, ANODE | 2 | |
| 11 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 4 |
| 12 | PAGB/T5783-M6x10 | BOLT M6x10 | 2 | |
| 13 | PAGB/T5783-M8x16 | 97095-08016 | BOLT M8x16 | 2 |
| 14 | PAE10-01010007 | WASHER, PLATE | 2 | |
| 15 | PAE10-01010005 | BUSH A | 2 | |
| 16 | PAE10-01010004 | PIN | 1 | |
| 17 | PAE10-01010006 | BUSH B | 1 | |
| 18 | PAGB/T5783-M6x25 | 10-82500925 | BOLT M6x25 | 2 |
| 19 | PAE10-01010008 | 677-45251-00 | ANODE | 1 |
| 20 | PAGB/T879.2-Ø3x18 | PIN 1&3x18 | 1 | |
| 21 | PAT40-01010102 | 65W-43192-00 | HANDLE | 1 |
| 22 | PAT40-01010101 | 65W-43191-00 | LIMITATIVE POSITION SHAFT | 1 |
| 23 | PAT40-01010002-A | RIGHT BRACKET | 1 |
-
Yamaha / Parsun F40 HANDLE (65W-43192-00)Vanaf € 4,95 € 4,09
-
Parsun F40 Limitative POSItion Shaft (65W-43191-00)Vanaf € 17,95 € 14,83
-
Yamaha / Parsun Nylon Gasket F20 & F25 (90386-12MA0)Vanaf € 4,95 € 4,09
-
Yamaha /Parsun BOLT M8X16 (97D95-08016)Vanaf € 4,95 € 4,09
-
Circlip Borg clip 9 mm (PAGB/T896-9)Vanaf € 4,95 € 4,09
-
Yamaha/Parsun Large Washer (90201-08M06)Vanaf € 4,95 € 4,09
-
Parsun/Yamaha Locking Nut 95380-05600Vanaf € 4,95 € 4,09
-
Yamaha/Parsun Bolt M6x10 (97095-06010)Vanaf € 4,95 € 4,09
-

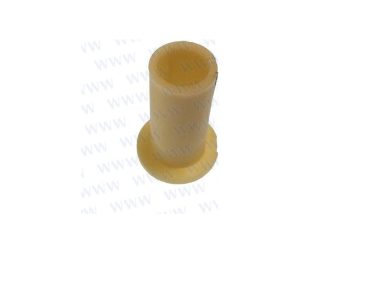

Parsun F40 BUSH (PAE10-01010003)€ 5,95 € 4,92
-
Parsun F40 Bush B (PAE10-01010006)€ 5,95 € 4,92
-

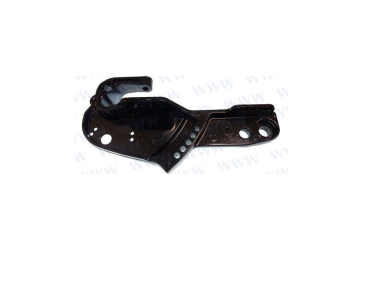

Parsun F40 Bracket LEFt Assembly (PAT40-01010001-A)€ 359,00 € 296,69
-
