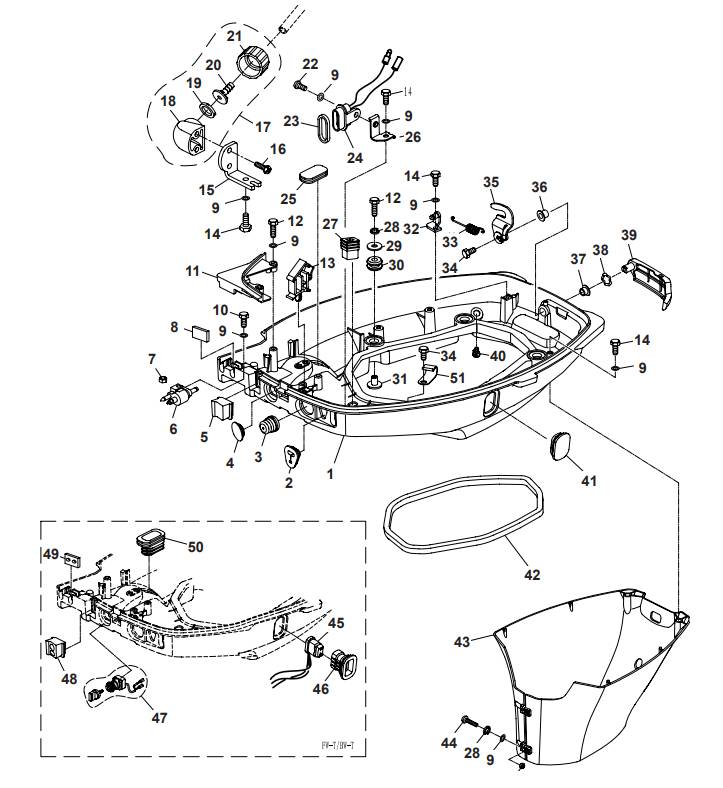

Bottom Cowling
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF40-03000001EI | BOTTOM COWLING (EFI) | ||
| 1 | PAF40-03000001 | BOTTOM COWLING | ||
| 2 | PAF15-01000015 | 66M-26326-00 | JACKET, CABLE | 1 |
| 3 | PAF15-05000006 | 65W-42726-00 | SHEATH, WAVE | 1 |
| 4 | PAF25-03000003 | 682-42724-00 | RUBBRR PLUG, CIRCULAR | 1 |
| 5 | PAF40-03000009 | RUBBER PLUG, ABNORMAL | 1 | |
| 6 | PAF4-05000200 | 6G1-24304-00 | FUEL CONNECTOR ASSY | 1 |
| 7 | PAGB/T6170-M6 | NUT M6 | 3 | |
| 8 | PAF15-05000017 | 65W-42724-00 | SEAL, RUBBER | 1 |
| 9 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 10 |
| 10 | PAGB/T5783-M6x25 | 10-82500925 | BOLT M6x25 | 1 |
| 11 | PAF40-03000006 | COVER BOARD | 1 | |
| 12 | PAGB/T5783-M6x30 | 97080-06030 | BOLT M6x30 | 4 |
| 13 | PAF15-05000008 | 90465-25M57 | CLAMP A | 1 |
| 14 | PAGB/T5783-M6x20 | 97080-06020-00 | BOLT M6x20 | 5 |
| 15 | PAF25-03000023W | 69W-12535-00-00 | BRACKET, JAM | 1 |
| 16 | PAGB/T84.5-ST5.5x19 | SCREW ST5.5x19 | 2 | |
| 17 | PAF25-03000100W | JAM ASSY | 1 | |
| 18 | PAF25-03000101W | JAM | 1 | |
| 19 | PAF25-03000102W | RUBBBR RING, JAM | 1 | |
| 20 | PAF25-03000103W | JOINT, JAM | 1 | |
| 21 | PAF25-03000104W | NUT, JAM | 1 | |
| 22 | PAGB/T823-M6x10 | SCREW M6x10 | 1 | |
| 23 | PAF20-03000101 | SEAL, PILOT LAMP | 1 | |
| 24 | PAF40-03000300EI | PILOT LAMP ASSY (EFI) | 1 | |
| 24 | PAF20-03000100 | 62Y-84301-00-00 | PILOT LAMP ASSY | 1 |
| 25 | PAF15-05000003 | 6H442726-00 | RUBBER PLUG, QUADRATE | 1 |
| 26 | PAF40-03000012 | 682-42727-00 | BRACKET, PILOT LAMP | 1 |
| 27 | PAF15-05000033 | JACKET, LEVER | 1 | |
| 28 | PAGB/T93-6 | SPRING-WASHER 6 | 4 | |
| 29 | PAF25-00000004 | BIG WASHER 6 | 4 | |
| 30 | PAF25-03000006 | 90480-09M12 | DAMPER | 4 |
| 31 | PAF25-03000007 | 90387-06M69 | BUSHING, DAMPER | 4 |
| 32 | PAF25-03000019 | BRACKET ASSY, TENSIONAL SPRING | 1 | |
| 33 | PAF15-05000026 | 90506-18010 | SPRING, TENSION | 1 |
| 34 | PAGB/T5783-M6x12 | BOLT M6x12 | 1 | |
| 35 | PAF25-03020000 | 65W-42816-03 | LOCKING ASSY, TOP COWLING | 1 |
| 36 | PAF15-05000036 | 90386-12M37 | BUSHING B | 1 |
| 37 | PAF15-05000022 | 90386-12MA2 | BUSHING A | 1 |
| 38 | PAF15-05000023 | WASHER, WAVE | 1 | |
| 39 | PAF40-03000100 | LOCKING ASSY, TOP COWLING | 1 | |
| 40 | PAF15-05000009 | WATER NIPPLE, PLASTIC | 1 | |
| 41 | PAF40-03000011 | 6BL-44391-00 | JAM, BOTTOM COWLING | 1 |
| 42 | PAF25-03000002 | 62Y-42716-00 | SEAL, BOTTOM COWLING | 1 |
| 43 | PAF40-00000100 | SHIELD, UPPER CASING | 1 | |
| 44 | PAGB/T818-M6X25 | SCREW M6X25 | 2 | |
| 45 | PAF40-0300600W | SWUITCH ASSY, TILT | 1 | |
| 46 | PAF40-03000008 | JACKET, TILT SWITCH | 1 | |
| 47 | PAF40-03000400EI | START SWITCH | 1 | |
| 48 | PAF40-03000009W | RUBBER PLUG, ABNORMAL | 1 | |
| 49 | PAF25-03000029W | SEAL, RUBBER | 1 | |
| 50 | PAF40-03000014W | WAVE JACKET, WATER PIPE | 1 | |
| 51 | PAT36-04000023 | CLAMP | 1 |
-
