Bracket 1

Nummer:	Bestelnummer:	OEM:	Omschrijving:
1	PAF25-01010312	65W-43630-00	TILT CLAMP HANDLE ASSY
2	PAF25-01010311	90386-07MA2-00	WASHER
3	PAF25-01010318	90249-12M34	PIN, DETENT
4	PAF25-01010009	90202-12031	WASHER, NYLON
5	PAF25-01010321	66T-43627-00	PLATE, TILT DETENT
6	PAF25-01010008	90206-12M00	WASHER, WAVE
7	PAF25-01010007	90109-08M90	SCREW, PROLATE HEXAGON
8	PAF25-01010319	90386-12M98	GASKET, NYLON
9	PAF25-01010322	90249-12M39	PIN, DETENT
10	PAF25-01010301		BRACKET, ROTARY
10	PAF25-01010301S		BRACKET, ROTARY S
11	PAGB/T6182-2000	90185-08057-00	LOCKNUT
12	PAF25-01010010	90201-08M07	THICK WASHER
13	PAF25-01010201		BRACKET, RIGHT
14	PAF25-01010011	6G5-43145-00	NUT, PLASTIC
15	PAF15-01010007	63V-43145-00	NUT, SELF-LOCKING
16	PAF25-01010004	6J8-43113-01	PLATE, TWO HOLE
17	PAGB/T6170-2000	95380-08600-00	NUT
18	PAGB/T93-1987	92990-08100-00	WASHER, SPRING
19	PAGB/T97.1-85	66M-11327-00-94	WASHER
20	PAF25-01010104	90149-14M12	SCREW, CLAMP

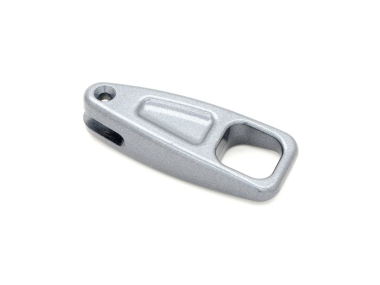

21	PAF25-01010102	63-43118-01-4D	CLAMP HANDLE
22	PAF25-01010103	90243-04007	RIVET
23	PAF4-01010003	620-43114-00	CLAMP PLATE
24	PAF25-01010200		RIGHT BRACKET ASSY
25	PAF25-01010315	65W-43616-00	ROD, BRACKET
26	PAGB/T818-2000	90157-05014-00	SCREW, PAN HEAD
27	PAF25-01010314	90506-20M37	SPRING, TENSION
28	PAF25-01010313	66T-43631-00	LEVER, ANGEL ORIENTATION
29	PAF25-01010309	90387-07M05	BUSHING, HANDLE
30	PAGB/T7940.1-95	93700-06M03-00	NIPPLE, GREASE
31	PAF25-01010002	90386-22M15	BUSH, NYLON
32	PAF25-01010003	90201-22M03	WASHER
33	PAF25-01010302	65W-43373-00	WASHER, SEAL
34	PAF25-01010303	90105-08M76	HEXAGON BOLT
35	PAF25-01010317	90386-10M99	BUSH, PIN
36	PAF25-01010316	90249-10M31	SHAFT, ANGLE BRACKET
37	PAF15-01010001	63D-43131-00	BOLT, CLAMP BRACKET
38	PAF25-01010101		BRACKET, LEFT
39	PAF25-01010100		LEFT BRACKET ASSY
40	PAF25-01010403		CONICAL SPRING
41	PAF25-01010402		PLATE, PREVENT DESQUAMATION
42	PAGB/T879.1-2000		PIN, SPRING
43	PAF25-01010401		ROD, LIMITATIVE ANGLE
44	PAF25-01010400		ROD ASSY, LIMIT ANGLE
45	PAF25-01010005	90101-08M76	LONG BOLT
46	PAF25-01010006	90387-08M29	TUBE, BOLT
47	PAF25-01010308		SUPPORT ASSY
48	PAGB/T896-1986	99080-08600-00	CIRCLIP
49	PAF25-01010305	90249-07M32	LONG SHAFT, BRACKET
50	PAGB/T91-2000	91490-20012-00	PIN, COTTER
51	PAGB/T896-1986		CIRCLIP
52	PAF25-01010324	90386-12MA0	GASKET, NYLON
53	PAF25-01010323	90387-12M04	TUBE, NYLON
54	PAF25-01010307-3	90249-07M33	SHORT SHAFT, OUTER BRACKET
55	PAF25-01010307-4	65W-43614-00	BRACKET, ANGLE LOCKED
56	PAF25-01010304	90506-30M00	SPRING, TENSION
57	PAF25-01010307-1	65W-43613-00	ARM, TILT LOCK
58	PAF25-01010307-2	65W-43615-00	PLATE, TILT LOCK
59	PAF25-01010306	90387-07M29	TUBE, LONG SHAFT
60	PAF25-08000007		MARK 7
