Control Box Assembly
| Nummer: |
Bestelnummer: |
Yamaha OEM: |
Omschrijving: |
| 1 |
PAF15-13000000W |
703-48240-13-00 |
CONTROL BOX ASSY |
| 2 |
PAHT2.5*60 |
703-82591-00-00 |
CLAMP |
| 3 |
PAF15-13000200W |
703-82510-12, 703-82510-13 |
STARTING SWITCH ASSY |
| 4 |
PAF15-13000100W |
688-82586-21-00 |
CONTROL CABLE ASSY (5M=16.4') |
| 5 |
PAF15-11000002W |
703-48293-10-00 |
PLATE, CONTROL BOX |
| 6 |
PAGB/T819.2-1997 |
703-48281-00-00 |
SCREW PAN HEAD M5X12 |
| 7 |
PAF15-13020007W |
703-48152-00-00 |
THROTTLE HANDLE, INCHING |
| 8 |
PAF15-13000005W |
703-48236-00-00 |
BUSH, CAN |
| 9 |
PAF15-13020006W |
703-48243-00-00 |
BUSH, HANDLE |
| 10 |
PAF15-11000001W |
703-48358-00-00 |
BLOCK, RUBBER |
| 11 |
PAF15-13000014W |
703-48284-00-00 |
JACKET, CABLE |
| 12 |
PAF4-01090401 |
682-82556-00-00 |
STOPER, HANG ROPE ASSY |
| 13 |
PAF15-13020400W |
688-82575-01-00 |
ENGINE STOP SWITCH ASSY |
| 14 |
PAF15-13000203W |
90464-09M13, 90464-15M08 |
INSULATED PLUG 'B' |
| 15 |
PAF15-13000202W |
|
INSULATED PLUG 'A' |
| 16 |
PAF15-13020001W |
703-48212-00-00 |
COVER, CONTROL BOX |
| 17 |
PAF15-13000013W |
703-48213-00-00 |
SMALL COVER, CONTROL BOX |
| 18 |
PAF15-13020005W |

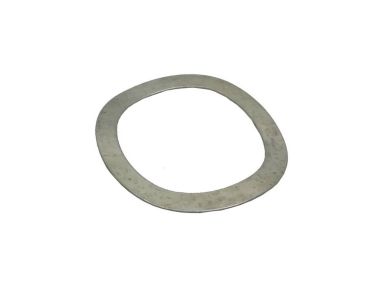

703-48198-00-00 |
WASHER 'B', WAVE |
| 19 |
PAF15-13020100W |
703-48153-00-00 |
LOCKED DISK ASSY |
| 20 |
PAF15-13020002W |
703-48244-00-00 |
TORSION SPRING |
| 21 |
PAF15-13020003W |
703-48234-00-00 |
EACH LOCKED PULLEY |
| 22 |
PAF15-13020004W |
703-48246-00-00 |
PLATE, PULLEY SPRING |
| 23 |
PAGB/T818-2000 |
98580-04006-00 |
PAN HEAD SCREW M4X6 |
| 24 |
PAF15-13020000W |
|
COVER ASSY, CONTROL BOX |
| 25 |
PAGB/T5783-2000 |
97380-08030-00 |
BOLT M8X30 |
| 26 |
PAGB/T97.1-85 |
92990-08600-00 |
WASHER 8 |
| 27 |
PAF15-13000500W |
703-48261-11-00 |
MACHINE, CONTROL ACCELEROGRAPH |
| 28 |
PAF15-13000007W |
703-48252-00-00 |
WASHER |
| 29 |
PAGB/T896-6 |
93430-06024-00 |
PIN, COTTER 6 |
| 30 |
PAF25-07000007W |
703-48345-01-00 |
CONTROL CABLE TIE IN 'B' |
| 31 |
PAF15-13000002W |
703-48232-00-00 |
CAM MECHANISM |
| 32 |
PAGB/T818-2000 |
98580-03015-00 |
PAN HEAD SCREW M3X14 |
| 33 |
PAF15-13000800W |
703-82540-00-00 |
INCHING SWITCH |
| 34 |
PAF15-13000003W |
703-48189-00-00 |
PLATE |
| 35 |
PAF15-13000004W |
701-48248-00-00 |
PULLEY |
| 36 |
PAF15-13000001W |
703-48238-00-00 |
SHIFT SPRING PLATE 'B' |
| 37 |
PAF15-12000016W |
|
MARK 16 |
| 38 |
PAGB/T6170-2000 |
95380-08600, 99780-08600-00 |
NUT M6 |
| 39 |
PAF15-13000008W |
|
WEARABLE PLATE, CAM MECHANISM |
| 40 |
PAF15-13000700W |
703-48271-00-00 |
SHIFT SWING LINK |
| 41 |
PAF15-13000601W |
703-48264-00-00 |
ADJUSTER FASTNESS ASSY |
| 42 |
PAGB/T5783-2000 |
|
BOLT M5X25 |
| 43 |
PAGB/T6170-2000 |
95380-08600, 99780-08600-00 |
NUT M5 |
| 44 |
PAF15-13000300W |
703-83383-02-00 |
BUZZER ASSY |
| 45 |
PAF15-13000602W |
703-48265-00-00 |
ADJUSTER PIN |
| 46 |
PAGB/T5287-1985 |
92990-06600-00, 92995-06600 |
BIG WASHER 6 |
| 47 |
PAF15-13000006W |
703-48268-00-00 |
WEARABLE PLATE |
| 48 |
PAF15-13000011W |
703-48235-00-00 |
BUSH, SHIFT SWING LINK |
| 49 |
PAF15-13000012W |
703-48211-01-00 |
BRACKET, CONTROL BOX |
| 50 |
PAF15-12000013W |
|
MARK 13 |
| 51 |
PAF15-13000015W |
703-48219-00-00 |
COVER, WATERPROOF |
| 52 |
PAF15-13010010W |
703-48245-00-00 |
BLOCK, CONTROL HANDLE |
| 53 |
PAGB/T956.1-1987 |
|
WASHER, LOCKED 5 |
| 54 |
PAGB/T819.2-1997 |
703-48282-00-00 |
SCREW, PAN HEAD M5X18 |
| 55 |
PAF15-13010003W |
703-48224-00-00 |
JAM, BUTTON |
| 56 |
PAF15-13010001W |
703-48221-00-00 |
CONTROL HANDLE |
| 57 |
PAF15-13010002W |
703-48222-00-00 |
CONTROL HANDLEBAR |
| 58 |
PAGB/T84.5-2000 |
98580-05010-00 |
SCREW, PAN HEAD ST 4.8X12 |
| 59 |
PAGB/T818-2000 |
98580-04010-00 |
SCREW, PAN HEAD M4X10 |
| 60 |
PAF15-13010009W |
703-48225-00-00 |
COVER, CONTROL HANDLE |
| 61 |
PAF15-13010005W |
703-48227-00-00 |
SPRING, COMPRESSION |
| 62 |
PAF15-13010004W |
703-48223-00-00 |
PART, ORIENTATION CONTROL |
| 63 |
PAF15-13010008W |
703-48226-00-00 |
PLATE, ORIENTATION PART |
| 64 |
PAGB/T820-2000 |
703-48291-10-00 |
SCREW, PAN HEAD M56X90 |
