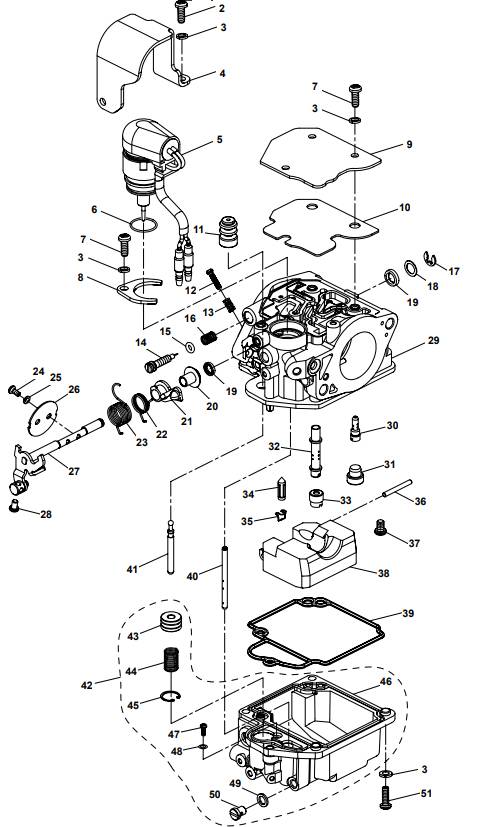

Carburetor Assembly
| Nummer: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF20-05080000 | CARBURETOR ASSY | 1 | |
| 2 | PAGB/T818-M4x12 | SCREW M4x12 | 2 | |
| 3 | PAGB/93-4 | SPRING WASHER | 10 | |
| 4 | PAF20-05080026 | COVER | 1 | |
| 5 | PAF20-05080200 | VALVE ASSY | 1 | |
| 6 | PAF20-05080201 | O-RING | 1 | |
| 7 | PAFBG/T818-M4x10 | SCREW M4x10 | 4 | |
| 8 | PAF20-05080016 | PLATE, VALVE | 1 | |
| 9 | PAF20-05080003 | PLATE | 1 | |
| 10 | PAF20-05080002 | GASKET | 1 | |
| 11 | PAF20-05080004 | COVER, RUBBER | 1 | |
| 12 | PAF20-05080011 | SCREW TOP | 1 | |
| 13 | PAF20-05080012 | SPRING | 1 | |
| 14 | PAF20-05080013 | SCREW, AIR ADJUST | 1 | |
| 15 | PAF20-05080014 | O-RING | 1 | |
| 16 | PAF20-05080015 | SPRING | 1 | |
| 17 | PAGB/T896-4 | CIRCLIP 4 | 1 | |
| 18 | PAF20-05080027 | WASHER | 1 | |
| 19 | PAF20-05080006 | GASKET | 2 | |
| 20 | PAF20-05080008 | BUSH | 1 | |
| 21 | PAF20-05080009 | SWING LINK, VALVE | 1 | |
| 22 | PAF20-05080010 | TWIST SPRING | 1 | |
| 23 | PAF20-05080005 | TWIST SPRING | 1 | |
| 24 | PAGB/T818-M3x6 | SCREW M3x6 | 2 | |
| 25 | PAGB/T93-3 | SPRING WASHER 3 | 2 | |
| 26 | PAF20-05080007 | APRON, ACCELERATOR | 1 | |
| 27 | PAF20-05080100 | ACCELERATOR | 1 | |
| 28 | PAGB/T818-M4x6 | SCREW M4x6 | 1 | |
| 29 | PAF20-05080001 | CARBURETOR | 1 | |
| 30 | PAF20-05080022 | JET, AIR SLOW | 1 | |
| 31 | PAF20-05080023 | CAP, RUBBER | 1 | |
| 32 | PAF20-05080020 | JER, MAIN | 1 | |
| 33 | PAF20-05080021 | NOZZLE MAIN | 1 | |
| 34 | PAF20-05080017 | NEEDLE VALVE | 1 | |
| 35 | PAF20-05080025 | CLIP, NEEDLE VALVE | 1 | |
| 36 | PAF20-05080019 | PIN, FLOAT | 1 | |
| 37 | PAGB/T818-M3x8 | SCREW M3x8 | 1 | |
| 38 | PAF20-05080018 | FLOAT | 1 | |
| 39 | PAF20-05080024 | GASKET, FLOAT | 1 | |
| 40 | PAF20-05080028 | JET | 1 | |
| 41 | PAF20-05080004 | ROD | 1 | |
| 42 | PAF20-05080300 | FLOAT CHAMBER | 1 | |
| 43 | PAF20-05080302 | PLUNGER | 1 | |
| 44 | PAF20-05080301 | SPRING, PLUNGER | 1 | |
| 45 | PAGB/T893.1-8 | CLIP 8 | 1 | |
| 46 | PAF20-05080305 | FLOAT CHAMBER | 1 | |
| 47 | PAGB/T818-M2x4 | SCREW M2x4 | 1 | |
| 48 | PAGB/T96-2 | BIG WASHER 2 | 1 | |
| 49 | PAF20-05080304 | WASHER | 1 | |
| 50 | PAF20-05080303 | SCREW, OIL OUTLET | 1 | |
| 51 | PAGB/T818-M4x16 | SCREW M4x16 | 4 |
-
Yamaha / Parsun Carburateur F15 / F20 2006+ (6AH-14301-F2-00)Vanaf € 149,95 € 123,93
-
Yamaha / Parsun Drain Screw (65W-14992-00-00)€ 16,95 € 14,01
-

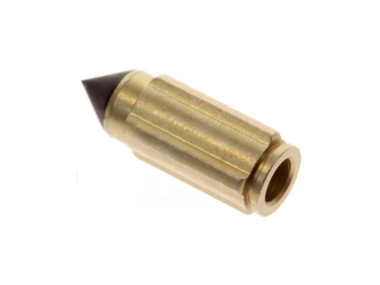

Yamaha / Mercury / Mariner Needle Valve 3 to 40 HP (6G1-14546-01)Vanaf € 12,95 € 10,70
-
Yamaha / Parsun Washer (6G1-14398-00-00)Vanaf € 4,95 € 4,09
-
Yamaha / Parsun Float (6AH-14985-00-00)Vanaf € 12,95 € 10,70
-
Yamaha / Parsun Needle Jet (6AH-14947-00-00)Vanaf € 25,95 € 21,45
-
Yamaha / Parsun Pilot Screw (6AH-14923-20-00)Vanaf € 8,95 € 7,40
-
Yamaha / Parsun Float Chamber Gasket (6AH-14384-00-00)Vanaf € 8,95 € 7,40
-

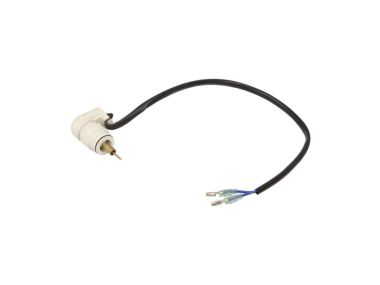

Yamaha / Parsun Prime Starter Assembly (6AH-14380-12-00)Vanaf € 79,95 € 66,07
-
Yamaha / Parsun O-Ring (67F-14398-10-00)Vanaf € 4,95 € 4,09
-
Yamaha / Parsun Spring (67C-14555-00-00)Vanaf € 4,95 € 4,09
-
Yamaha / Parsun Jet (#45) (676-14948-05-00)Vanaf € 12,95 € 10,70
-

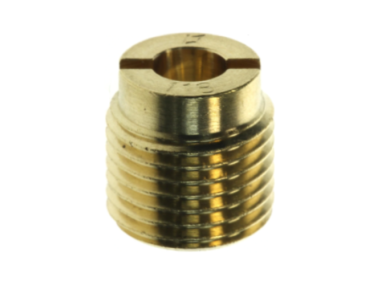

Yamaha / Parsun Main Jet (#118) (676-14943-81-00)Vanaf € 12,95 € 10,70
-
Parsun O-Ring (PAF20-05080201)€ 4,95 € 4,09
-
Parsun Float Chamber Assembly (PAF20-05080300)€ 130,95 € 108,22
-
Yamaha / Parsun PAIN, FLOAT F20 & F25 (6H4-14548-00)Vanaf € 6,95 € 5,74
-

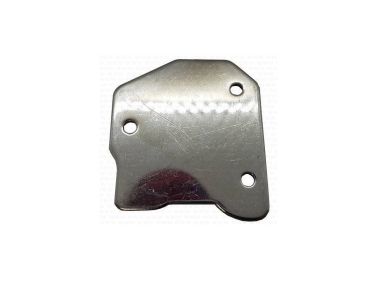

Yamaha / Parsun PLATE F20 & F25 (65W-14572-00-00)Vanaf € 20,95 € 17,31
-
Yamaha / Mercury Rubber Cap 8 - 100 HP (679-14966-00, 22-83369M)Vanaf € 7,95 € 6,57
-
Parsun F40, F50, F60 SCREW M4X16 (PAGB/T818-M4x16)€ 4,95 € 4,09
-

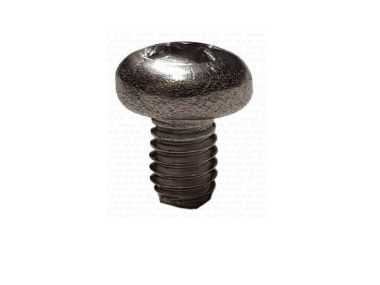

Parsun Bolt (PAGB/T818-M4X6)€ 4,95 € 4,09
-
