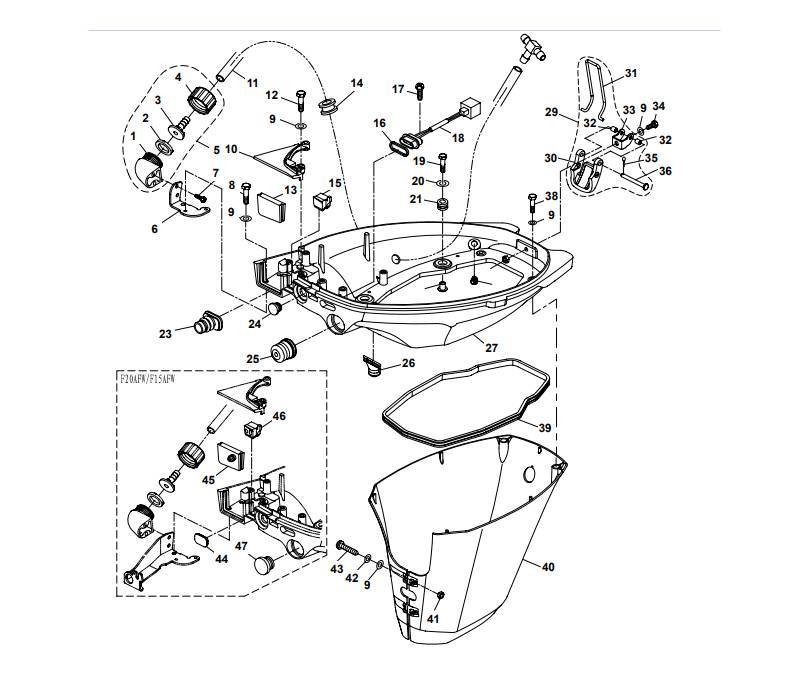

Bottom Cowling
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 1 | PAF25-03000101W | 6DR-12572-00 | ADAPTER / JAM |
| 2 | PAF25-03000102W | 6R3-12583-00 | HOSE JOINT GASKET |
| 3 | PAF25-03000103W | 6R3-12582-00 | HOSE JOINT |
| 4 | PAF25-03000104W | 6R3-12581-00 | HOSE JOINT NUT |
| 5 | PAF25-03000100W | - | JAM ASSEMBLY |
| 6 | PAF20-03000010 | 6AH-12535-00 | JAM SUPPORT PLATE |
| 7 | PAGB/T84.5-ST5.5x19 | 90167-06002 | SCREW ST5.5x19 |
| 8 | PAGB/T5783-M6x8 | - | BOLT M6x8 |
| 9 | PAGB/T97.1-6 | 92990-06600 | WASHER 6 |
| 10 | PAF20-03000007 | 6AH-42738-00-8D | COWLING COVER |
| 11 | PAF20-03000011 | 6AH-24314-01 | PIPE Ø6xØ11x680 |
| 12 | PAGB/T5783-M6x30 | 90109-06M82 | BOLT M6x30 |
| 13 | PAF20-03000005 | 6AH-42724-00 | SQUARE SEAL/GROMMET |
| 14 | PAF20-03000004 | 6AH-42726-00 | RUBBER SEAL/GROMMET |
| 15 | PAF20-03000006 | 6AH-42725-00 | RUBBER PLUG |
| 16 | PAF20-03000101 | 6FM-83589-00 | SEAL/GASKET |
| 17 | PAGB/T818-M6x16 | 98580-06016 | PAN HEAD SCREW M6x16 |
| 18 | PAF20-03000100 | 62Y-84301-00 | PILOT LIGHT ASSEMBLY |
| 19 | PAGB/T5783-M6x30 | 90109-06M82 | BOLT M6x30 |
| 20 | PAF25-00000004 | - | WASHER |
| 21 | PAF25-03000006 | 90480-09M12 | GROMMET/DAMPER |
| 22 | PAF25-03000007 | 90387-06M69 | DAMPER BUSHING |
| 23 | PAF20-03000003 | 6AH-26326-00 | JACKET |
| 24 | PAF2.6-05000004 | 6G1-42725-00 | CIRCULAR RUBBER PLUG |
| 25 | PAF15-05000006 | 65W-42726-00 | WAVE SHEATH/GROMMET |
| 26 | PAF20-03000008 | 6AH-42727-00 | GEAR SHIFT LINK ROD JACKET |
| 27 | PAF20-03000001 | - | BOTTOM COWLING |
| 28 | PAF15-05000009 | 6BL-44391-00 | PLASTIC WATER NIPPLE |
| 29 | PAF20-03020000 | - | TOP COWLING LOCKING HOOK ASSY |
| 30 | PAF20-03020002 | - | LOCKING HOOK BODY |
| 31 | PAF20-03020004 | - | LOCKING HOOK STEEL WIRE |
| 32 | PAF20-03020005 | - | LOCKING HOOK BUSH |
| 33 | PAF20-03020001 | - | LOCKING HOOK SEAT |
| 34 | PAGB/T5783-M6x12 | 97080-06012 | BOLT M6x16 |
| 35 | PAGB/T91-Ø1.6x12 | 91490-16010 | COTTER PIN Ø1.6x12 |
| 36 | PAF20-03020003 | - | LOCKING HOOK SHAFT |
| 37 | PAGB/T889.1-M6 | - | LOCKING NUT M6 |
| 38 | PAGB/T5783-M6x20 | 65W-12228-00 | BOLT M6x20 |
| 39 | PAF20-03000002 | 6AH-42716-00 | RUBBER SEAL |
| 40 | PAF20-00000011 | 6AH-42741-00 | UPPER CASING COVER/APRON |
| 41 | PAGB/T6170-M6 | 95380-06600 | NUT HEXAGON M6 |
| 42 | PAGB/T93-6 | 92995-06100 | SPRING WASHER 6 |
| 43 | PAGB/T818-M6x30 | 97885-06030 | SCREW M6x30 |
| 44 | PAF20-03000007W | - | SQUARE RUBBER PLUG |
| 45 | PAF20-03000005W | - | SQUARE RUBBER SEAL |
| 46 | PAF20-03000006W | - | RUBBER PLUG |
| 47 | PAF25-03000024W | 65W-42726-10 | JAM “B” |
-
