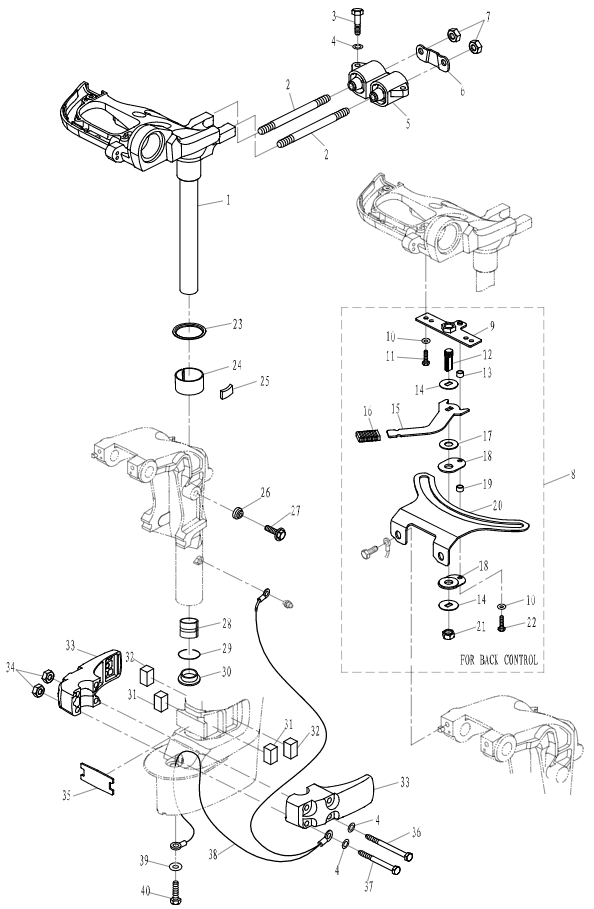

Bracket 2
| Nummer: | Bestelnummer: | Omschrijving: |
| 1 | PAF20-01010000L | STEERING BRACKET ASSEMBLY (L) |
| 1 | PAF20-01010000S | STEERING BRACKET ASSEMBLY (S) |
| 2 | PAGB/T900-M10X1.25X82 | BOLT M10X1.25X82 |
| 3 | PAGB/T9074.14-M8X30 | BOLT M8X30 |
| 4 | PAGB/T97.1-8 | WASHER 8 |
| 5 | PAF20-02020200 | DAMPER ASSEMBLY |
| 6 | PAF20-00000005 | PLATE |
| 7 | PAGB/T6170-M10X1.25 | NUT MLOXL, 25 |
| 8 | PAF20-01030000 | STEERING FRICTION ASSEMBLY |
| 9 | PAF20-01030001 | FIXED PLATE "A" |
| 10 | PAGB/T97.1-5 | WASHER 5 |
| 11 | PAGB/T5783-M5X16 | BOLT M5X16 |
| 12 | PAF20-01030002 | SCREW, ADJUSTING |
| 13 | PAF20-01030008 | BUSH "A" |
| 14 | PAF20-01030003 | WASHER "A" |
| 15 | PAF20-01030004 | HANDLE, ADJUSTING |
| 16 | PAF20-01030005 | JACKET, HANDLE |
| 17 | PAF20-01030006 | WASHER, NYLON |
| 18 | PAF20-01030007 | FRICTION |
| 19 | PAF20-01030010 | BUSH "B" |
| 20 | PAF20-01030009 | FIXED PLATE "B" |
| 21 | PAGB/T889.1-M10X1.25 | LOCKING NUT MLOXL, 25 |
| 22 | PAGB/T5783-M5X20 | BOLT M5X20 |
| 23 | PAF15-01000003 | WASHER, HIGHT |
| 24 | PAF15-01000001 | BUSH, HIGHT |
| 25 | PAF15-01000002 | LOCKING BLOCK |
| 26 | PAF15-01010303 | SEAL, LOCKING BOLT |
| 27 | PAGB/T5787-M6X20 | BOLT, FLANGE |
| 28 | PAF15-01000004 | BUSH, LOW |
| 29 | PAGB/T3452.1-30X3.55 | O RING Ø30XØ3.55 |
| 30 | PAF15-01000006 | WASHER, LOW |
| 31 | PAF20-00000002 | DAMPER BLOCK "A" |
| 32 | PAF20-00000003 | DAMPER BLOCK "B" |
| 33 | PAF20-00000001 | COVER, MOUNT DAMPER |
| 34 | PAGB/T6177-M8 | NUT M8, FLANGE |
| 35 | PAF20-00000004 | DAMPER BLOCK, FRONT |
| 36 | PAGB/T5782-M8X105 | BOLT M8X105 |
| 37 | PAGB/T5782-M8X85 | BOLT M8X85 |
| 38 | PAF20-02000002 | WIRE, LEAD |
| 39 | PAGB/T97.1-6 | WASHER 6 |
| 40 | PAGB/T5783-M6X10 | BOLT M6XL0 |
-
