Cilinderkop Onderdelen

Nummer:	Bestelnummer:	Origineel onderdeelnummer:	Omschrijving:

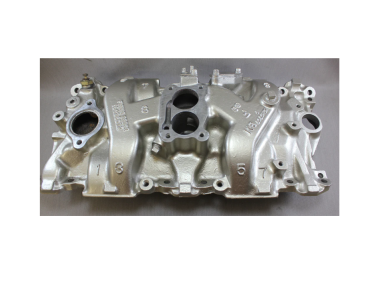

1	REC425062	17620	MANIFOLD: INTAKE 5.7 VORTEC
2	MP001204	10-806681, 10-835004, 3856765	BOLT INTAKE MANIFOLD
3	MP0009-107	10-17344, 3856135	BOLT: VALVE COVER SB

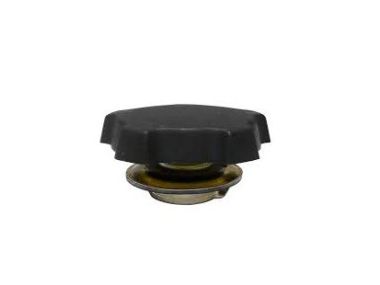

4	REC6532	36-18710002	CAP: OIL FILL (1986 &+)
4	REC4804	17345, 3853840	CAP: OIL FILL (1978-1985)
5	REC14200	79961T, 841212	VALVE COVER: 5.0 & 5.7L (1987-88) (Bolt around perimeter)
5	REC14201	79961T, 841212	VALVE COVER: 5.0 & 5.7L (1987 &-) (Bolt around perimeter)
5	REC14202	3856928, 809996	VALVE COVER: 5.0 & 5.7L (1989+) (1 Seal)
5	REC14203	3856928, 809995	VALVE COVER: 5.0 & 5.7L (1989+) (2 Seals)
6	FEL17930	11999, 27-52202, 835096	GASKET VALVE COVER 5.0 & 5.7L (Up to 1986) (Bolt around perimeter)
6	FEL17931	27-17467, 3852687	GASKET VALVE COVER 5.0 & 5.7L (Since 1987) (Central Bolts)
7	MP0007-029	10-11968, 3856124	BOLT: CYLINDER HEAD SHORT
8	MP0007-028	10-11967, 10-11967 1, 3856123	BOLT: CYLINDER HEAD MED
9	MP0007-027	10-11966, 3856122	BOLT: CYLINDER HEAD LONG
10	MP0007-380	28-54797 1, 3855823	KEY: VALVE STEM 350
11	MP0007-378	3853229, 48348	CAP: INLET VALVE SPRING
12	REC26-34217	26-34217, 3854956	SEAL: VALVE STEM OIL
13	REC11500	24-48347, 3853227	SPRING: VALVE
13	RM24-48347 1	21605360, 24-48347 1	SPRING: VALVE (Since 1996)
14	REC70817B	26-97664, 8M0050563, 3853226	SEAL: INTAKE VALVE STEM
15	REC10352	35329, 3853158	ROCKER ARM: VALVE
16	MP0007-122	11-34516, 3853004	NUT: VALVE ROCKER ARM
17	RM59340	3853198, 59340	ROTATOR: VALVE EXHAUST
18	REC938-8M0087884	8M0087884 / 3857663 / 3857663	HEAD: CYLINDER (end)620, 059 *520
19	FEL17020	27-75611, 27-75611001, 3853380	GASKET: CYLINDER HEAD 5.0L
19	FEL17030	27-75611, 75611001, 3853380	GASKET: CYLINDER HEAD 5.7L

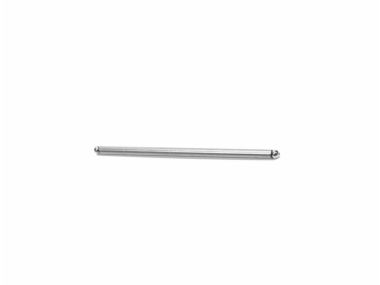

20	REC12003	3853157, 99948	PUSH ROD: VALVE 5.0 & 5.7L (1987-1995)
20	REC12004	173391, 3863058	PUSH ROD: VALVE 5.0 & 5.7L (Since 1996)
20	REC12000	35330, 99948, 3853157	PUSH ROD: VALVE 5.0 & 5.7L (Up to 1986)
21	REC14002	17340T, 3853954	LIFTER: VALVE
21	MP0017-097	3856127, 72638	LIFTER: VALVE 5.0 & 5.7L (1996+)

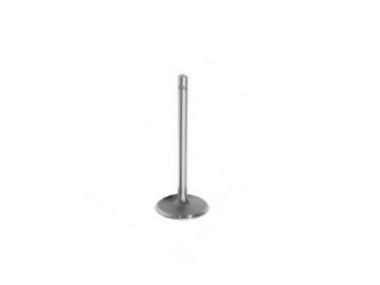

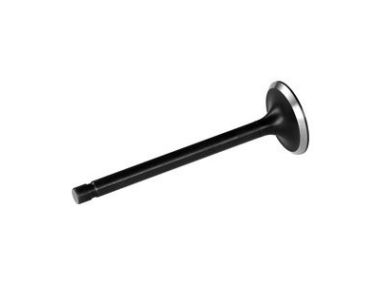

22	REC13502	856368, 85803, 87284, 87824	VALVE: EXHAUST 5.0L (38-8,7-126) (2 slot)
22	REC13508		VALVE: EXHAUST 5.0L & 5.7L (38-9,4-125) (2 slot)
22	REC13500	34528	VALVE: EXHAUST 5.0L & 5.7L (38-8,7-125) (2 slot)
22	REC13505	3855808, 824317 1, 8243171	VALVE: EXHAUST 5.0L & 5.7L VORTEC (1996+) (38-8,7-125) (1 slot)

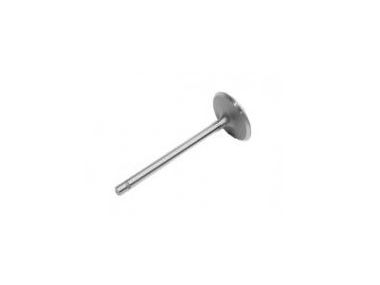

23	REC13509		VALVE: INTAKE 5.0L (47-8,8-125) (2 slot)
23	REC13510	841873	VALVE: INTAKE 5.7L (49-8,8-124) (2 slot)
23	REC13507	3855810, 809992	VALVE: INTAKE 5.7L VORTEC (1996+) (49-8,8-124) (1 slot)
23	RM802555	802555	VALVE: INTAKE 5.0L VORTEC (1996+) (46,5-8,7-124) (1 slot)
24	FEL17320	856365	GASKET KIT: INTAKE MANIFOLD PREVORTEC
24	REC27-807473A1	27-807473A1, 3857662	GASKET KIT: INTAKE MANIFOLD VORTEC
25	REC6507		GROMMETT: VALVE COVER 5.0 & 5.7L (1986+)
25	RECTW9760	835415	GROMMETT: VALVE COVER 5.0 & 5.7L (1978-1985)
