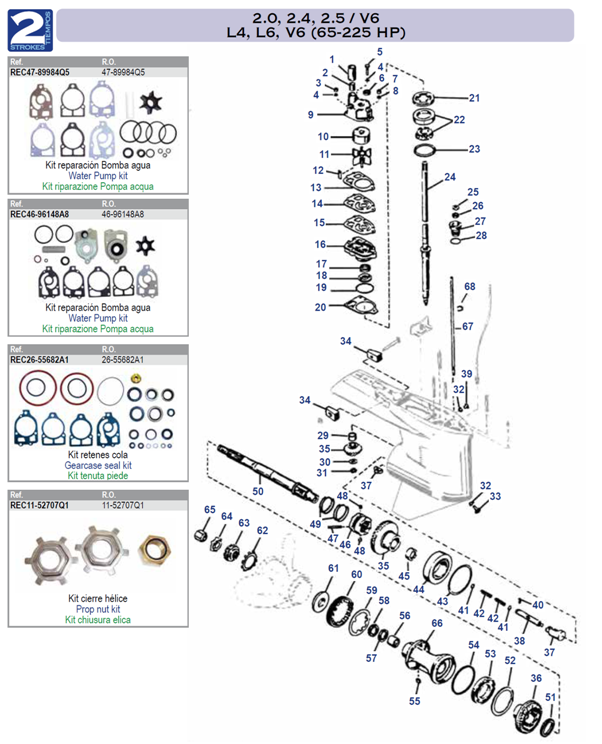

65 t/m 225 PK 2-Takt (2.0 / 2.4 / 2.5 liter V6 / L4 / L6)
| Nr: | Bestelnummer: | Mercury OEM: | Omschrijving: |
| 1 | REC23-29804T | 23-29804 | Tube guide |
| 2 | REC26-38970 | 26-38970 | Seal |
| 3 | REC11-8267089 | 11-13438 | Nut |
| 4 | GLM21490 | 12-29245 | Washer |
| 5 | GLM12833 | 10-96411 | Screw |
| 6 | GLM21330 | 25-30271 | Slinger |
| 7 | REC11-13436 | 11-13436 | Nut |
| 8 | GLM21720 | 12-36001 | Washer |
| 9 | rec46-96148t1 | 46-96148T1 | Pump housing |
| 10 | GLM12810 | 48752T | Pump cup |
| 11 | REC47-89984T4 | 47-89984T4 | Impeller |
| 12 | GLM11070 | 28-56654 | Key |
| 13 | GLM31020 | 27-858524 | Gasket |
| 14 | GLM12510 | 32435 | Wear plate |
| 15 | GLM31010 | 27-85608-1 | Gasket |
| 16 | GLM12360 | 46-42579A3 | Pump base |
| 17 | REC26-16977 | 26-16977 | Oil seal |
| 18 | GLM85070 | 26-89238 | Oil seal |
| 19 | REC25-90011 | 25-90011 | O-ring |
| 20 | GLM31050 | 27-42631-1 | Gasket |
| 21 | GLM23200 | 824519-1 | Retainer |
| 22 | REC31-36387A1 | 31-36387A1 | Bearing |
| 22 | GLM21570 | 31-63079A1 | Bearing |
| 22 | GLM22980 | 31-69220T | Bearing |
| 23 | GLM23210 | 15-42637A1 | Shim set |
| 24 | GLM11161 | 45-44000-1 | Drive shaft |
| 24 | GLM11162 | 45-42646 | Drive shaft |
| 24 | GLM11163 | 45-98682A1 | Drive shaft |
| 25 | GLM30030 | 12-77674 | Gasket |
| 26 | REC26-816464-1 | 26-816464-1 | Oil seal |
| 27 | GLM21020 | 23-77631 | Bushing |
| 28 | REC25-25439 | 25-25439 | O-ring |
| 29 | GLM21610 | 31-42647A1 | Bearing |
| 29 | GLM22780 | 31-32898T | Bearing |
| 30 | GLM32800 | 12-92721 | Washer |
| 31 | REC11-35921 | 11-35921 | Nut |
| 32 | GLM31170 | 12-19183-3 | Gasket |
| 33 | REC22-67892A05 | 22-67892A1 | Draining screw |
| 34 | CM826134 | 826134Q | Anode zinc |
| 34 | GLM12675 | 826134Q | Anode aluminum |
| 35 | GLM11340 | 43-68548T3 | Pinion gear (straight) |
| 35 | GLM11350 | 43-68447T1 | Forward gear (straight) |
| 35 | GLM11670 | 43-44102A7 | P/Forward gear (2.00:1) |
| 35 | GLM11780 | 43-803619T1 | P/Forward gear (2.00:1) |
| 35 | GLM11450 | 43-44104A8 | P/Forward gear (1.87:1) |
| 35 | GLM11675 | 43-803615T2 | P/Forward gear (1.87:1) |
| 35 | GLM11710 | 43-859321A3 | P/Forward gear (1.75:1) |
| 36 | GLM11360 | 43-76250T | Reverse gear (straight) |
| 36 | GLM11680 | 43-824987A2 | Reverse gear |
| 36 | GLM11790 | 43-85462T | Reverse gear |
| 36 | GLM11460 | 43-824986A2 | Reverse gear |
| 36 | GLM11685 | 43-828175A1 | Reverse gear |
| 36 | GLM11720 | 43-859322A1 | Reverse gear |
| 37 | GLM11180 | 89594A1 | Cam follower kit |
| 38 | GLM26420 | 79911A1 | Rod kit |
| 38 | GLM26430 | 828827 | Rod |
| 39 | REC10-79953Q04 | 10-79953Q2 | Screw set |
| 40 | GLM21101 | 17-78906 | Pin |
| 41 | GLM21665 | 12-78910 | Washer |
| 42 | GLM11033 | 24-79910 | Spring |
| 43 | GLM23220 | 15-47397A1 | Shim set |
| 44 | GLM21820 | 31-30894A1 | Bearing |
| 44 | GLM21830 | 31-78172A1 | Bearing |
| 45 | GLM11430 | 31-54928-1 | Bearing |
| 45 | GLM11420 | 31-30895T | Bearing |
| 46 | REC52-853594T | 52-853594T | Clutch dog |
| 46 | GLM11061 | 52-822539T | Clutch dog |
| 46 | GLM11062 | 52-823174T | Clutch dog |
| 46 | GLM11064 | 52-859340T | Clutch dog |
| 47 | GLM21131 | 17-30632 | Cross pin |
| 47 | GLM21102 | 17-78905 | Cross pin |
| 48 | GLM21103 | 17-78909 | Detent pin |
| 48 | GLM21104 | 17-828356 | Detent pin |
| 49 | GLM11050 | 24-30893 | Spring |
| 49 | GLM11059 | 24-78962 | Spring |
| 50 | GLM11151 | 44-94148 | Prop shaft |
| 50 | GLM11152 | 44-93003 | Prop shaft |
| 51 | GLM11012 | 23-824108 | Thrust spacer |
| 52 | GLM23140 | 68100-1 | Thrust ring |
| 53 | REC30-88957T | 30-88957T | Bearing |
| 54 | REC25-31534 | 25-896524 | O-ring |
| 55 | GLM11080 | 28-30281 | Key |
| 56 | GLM11410 | 31-30956 | Bearing |
| 57 | REC26-76868 | 26-76868 | Oil seal |
| 58 | REC26-12224 | 26-12224 | Oil seal |
| 59 | GLM11380 | 14-79447 | Keyed washer |
| 60 | REC8M2011027 | 79448 | Cover nut |
| 61 | REC12-835467Q01 | 12-835467-1 | Thrust hub |
| 62 | GLM21760 | 13-42351-1 | Lockwasher |
| 63 | REC12-31211Q03 | 12-31211A3 | Receiver |
| 64 | GLM21200 | 14-816629Q | Tab washer |
| 65 | GLM21270 | 11-827614 | Lock nut |
| 66 | GLM11396 | 43567T1 | Bearing carrier |
| 67 | GLM21150 | 76062A1 | Shift shaft (long) |
| 68 | GLM21136 | 53-29641 | Retaining ring |
-
MerCruiser Sea Water Pump Service Kit MC-1 (46-96148A8)€ 104,95 € 86,74
-

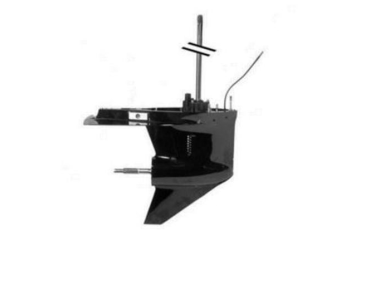

Mercury Complete gearcase assembly 2.0/2.4/2.5 L / V6 / V115 - V-200 (DFI) XR-6 110, 140 JETVanaf € 2.709,00 € 2.238,84
-

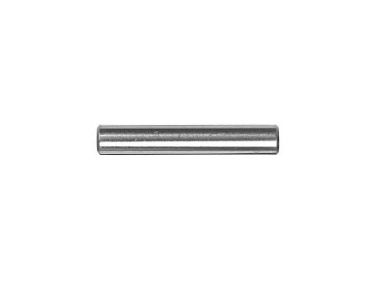

Mercury/Mariner/Mercruiser Cross Pin 30-300 HP (17-30632, 17-8M0084681, 8M0020941)Vanaf € 4,95 € 4,09
-

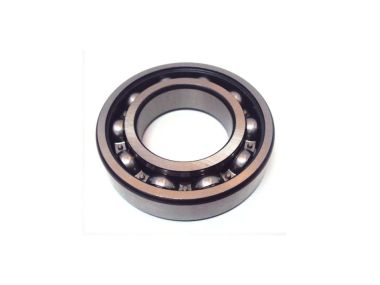

Mercury/Mariner/Johnson/Evinrude BEARING 40-225 HP (31-54928-1, 382343)Vanaf € 23,95 € 19,79
-
Mercury Mariner REVERSE GEAR. PIN L4, L6 & V6 (65-225 HP) 43-824986A2Vanaf € 475,00 € 392,56
-
Mercury Mariner/Johnson/Evinrude GASKET 35-300 HP (12-77674)Vanaf € 4,95 € 4,09
-
Mercruiser/Mercury/Mariner Retainer Ring 30-250 HP (18-20233, 53-29641)Vanaf € 4,95 € 4,09
-
Mercury/Mariner/Mercruiser Cover Nut 65-300 HP (79448, 8M2011027)Vanaf € 45,95 € 37,98
-
Mercury Mercruiser Lock Washer 65-225 pk (14-79447)Vanaf € 10,95 € 9,05
-
Mercury/Mariner/Mercruiser Key 35-250 HP (28-30281)Vanaf € 4,95 € 4,09
-

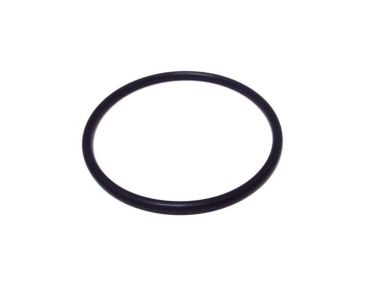

Mercury/Mariner/Mercruiser O-Ring 65-300 HP (25-31534, 25-896524)Vanaf € 4,95 € 4,09
-

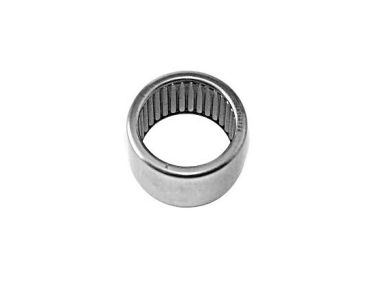

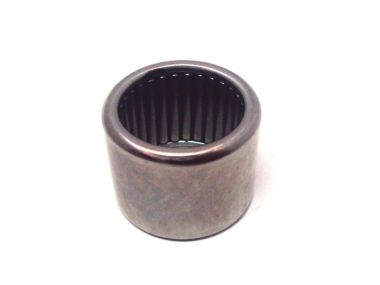

Mercury/Mariner/Mercruiser Bearing 65-250 HP (30-88957T)Vanaf € 50,95 € 42,11
-

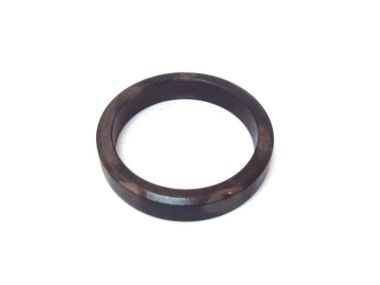

Mercury/Mariner/Mercruiser Thrust Ring 65-250 HP (68100-1, 681001)Vanaf € 15,00 € 15,00
-
Mercury/Mariner/Mercruiser Thrust Spacer 65-250 HP (23-824108)Vanaf € 4,95 € 4,09
-
Mercury Mariner Spring (double version) L4, L6 & V6 (65-225 HP) 24-78962Vanaf € 10,95 € 9,05
-
Mercury/Mariner/Mercruiser Spring 30-300 HP (24-30893)Vanaf € 4,95 € 4,09
-
Mercury Mariner DETENT PIN (DOUBLE PIN VERSION) 65-300 HP (17-828356)Vanaf € 9,95 € 8,22
-
Mercury / Mariner DETENT PIN (SINGLE PIN VERSION) L4, L6 & V6 (65-225 HP) 17-78909Vanaf € 20,95 € 17,31
-
Mercury Mariner CLUTCH DOG V-MODELS RACHETING L4, L6 & V6 (65-225 HP) 52-823174TVanaf € 121,95 € 100,79
-
Mercury/Mariner/Mercruiser Clutch Dog (52-853594T)Vanaf € 125,00 € 125,00
Mercury / Mariner 2.0, 2.4, 2.5 / V6 L4, L6, V6 (65-225 HP) Staartstuk onderdelen vind u bij Allesmarine.nl. Wij hebben de grootste voorraad en alles is de volgende dag bij u in huis.
