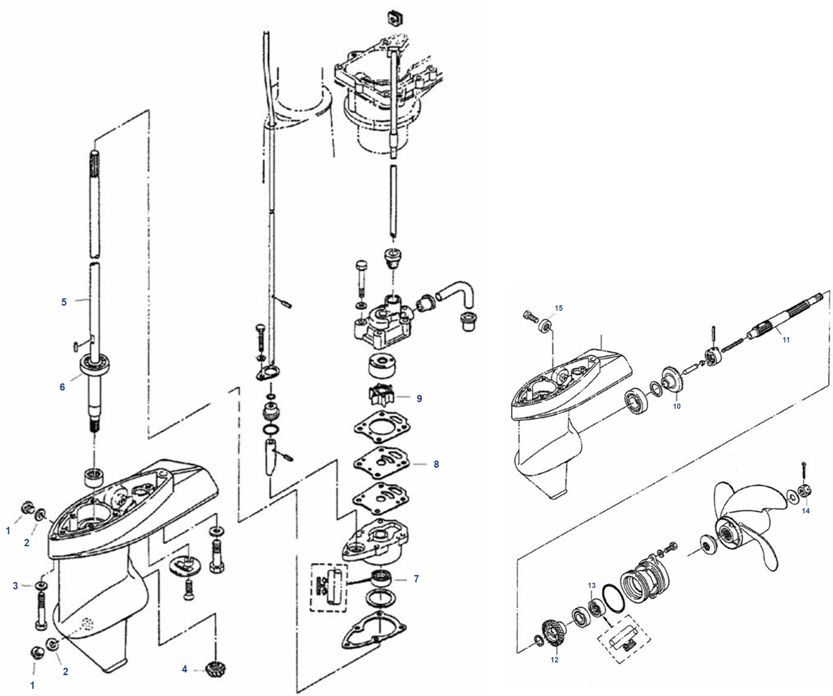

4 / 5 PK 2-Takt & 4 / 5 / 6 PK 1-Cil. 4-Takt
| Nummer: | Bestelnummer: | Gelijk aan: | OEM: | Omschrijving: |

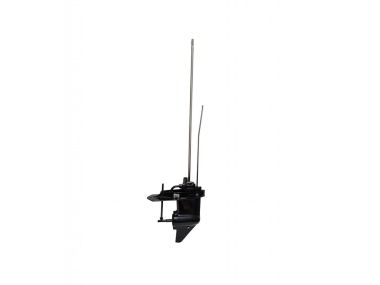

| 1 | PAF6-03000000L | LOWER CASING ASSY (L) | ||
| 1 | PAF6-03000000S | LOWER CASING ASSY (S) | ||
| 2 | PAF6-03000100L | REC45-8M0076368 | 45-16136 1 | DRIVE SHAFT ASSY (L) |
| 2 | PAF6-03000100S | REC45-161351 | 45-16135 1 | DRIVE SHAFT ASSY (S) |
| 3 | PAT5-03000009 | DOWEL PIN, IMPELLER | ||
| 4 | PAT5-03000003 | PINION | ||
| 5 | PAT5-03000013 | SEAL A, WATER PIPE | ||
| 6 | PAT5-03000012 | WATER PIPE B | ||
| 7 | PAT5-03000014 | SEAL B, WATER PIPE | ||
| 8 | PAGB/T5782-M6x45 | BOLT M6x45 | ||
| 9 | PAGB/T97.1-6 | 92995-06600 | WASHER 6 | |
| 10 | PAF6-03000001 | 16156 | 16156, 46-16156 | WATER PUMP |
| 11 | PAF6-03000002 | REC16157 | INNER SHELL, WATER PUMP | |
| 12 | PAT5-03000300 | REC47-161543 | 47-16154 3 | IMPELLER, WATER PUMP |
| 13 | PAF6-03000003 | 27-16158009 | 27-16158009 | UPPER GASKET, OUTER PLATE |
| 14 | PAT5-03000007 | REC16159 | 16159 | OUTER PLATE |
| 15 | PAT5-03000006 | 27-16160004 | 27-16160004 | LOWER GASKET, OUTER PLATE |
| 16 | PAF25-04000007 | 93604-08062 | PIN Ø4x10 | |

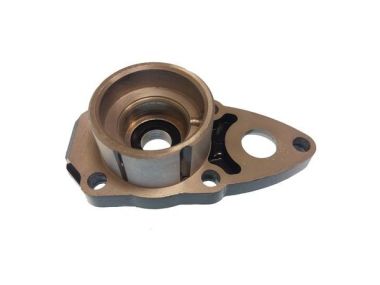

| 17 | PAT5-03000201 | WATER PUMP SEAT | ||
| 18 | PAT5-03000100 (L) | CAM ASSY, SHIFT ROD (L) | ||
| 18 | PAT5-03000100 (S) | CAM ASSY, SHIFT ROD (S) | ||
| 19 | PAGB/T879.2-1.5x12 | PIN 1.5x12 | ||

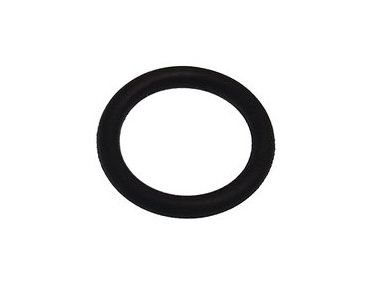

| 20 | PAJISB2401P16 | O-RING 15.8x2.4 | ||

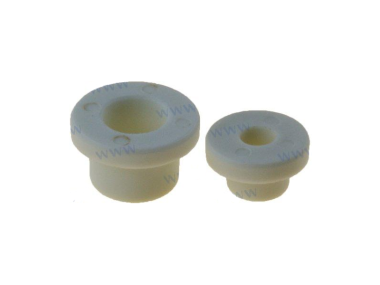

| 21 | PAT5-03000020 | ORIENTED BUSHING, SHIFT ROD | ||
| 22 | PAT5-03000022 | SEAL B, ORIENTED BUSHING | ||

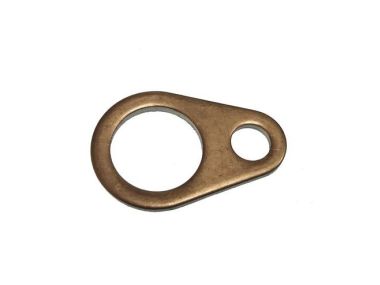

| 23 | PAT5-03000023 | PLATE, ORIENTED BUSHING | ||

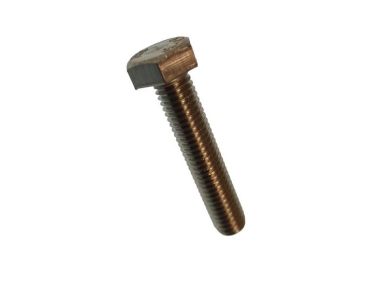

| 24 | PAGB/T5783-M6x16 | BOLT M6x16 | ||
| 25 | PAT5-03000202 | OIL SEAL, WATER PUMP SEAT | ||
| 26 | PAT5-03000004-1 | SHIM 0.10mm | ||
| 26 | PAT5-03000004-2 | SHIM 0.15mm | ||
| 27 | PAT5-03000005 | 27-16164003 | 27-16164003 | GASKET, WATER PUMP SEAT |
| 28 | PATLA1412Z | NEEDLE BEARING | ||
| 29 | PAT5-03000700 | LOWER CASING ASSY | ||
| 30 | PAT5-00000001 | HOLLOW PIN Ø7.5x10 | ||
| 31 | PAGB/T861.1-6 | LOCK WASHER 6 | ||
| 32 | PAT5-03000017 | CM3H6-60218-000 | 875208 | ANODE SQUARE |
| 33 | PAT5-00000002 | HOLLOW PIN Ø9.5x10 | ||
| 34 | PAGB/T97.1-8 | 66M-11327-00-94 | WASHER 8 | |
| 35 | PAGB/T5782-M8x40 | BOLT M8x40 | ||
| 35 | PAGB/T5782-M8x167 | BOLT M8x167 | ||
| 36 | PAF4-03000023 | 6E0-45316-09, 22-95368 3 | PLUG, OIL HOSE | |
| 37 | PAF4-03000024 | 90340-08002, 27-95220 | GASKET | |
| 38 | PAGB/T5782-M6x45 | BOLT M6x45 | ||
| 38 | PAGB/T5782-M6x172 | BOLT M6x172 | ||
| 39 | PAGB/T820-M6x20 | SCREW M6x20 | ||

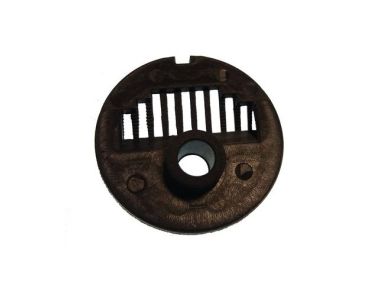

| 40 | PAT5-03000016 | WATER INLET | ||

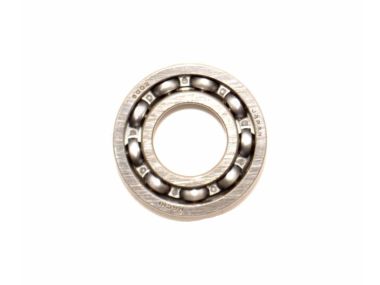

| 41 | PAGB/T276-6004 | 16128 | BEARING 6004 | |
| 42 | PAF8-04000002-1 | SHIM 0.10mm | ||
| 42 | PAF8-04000002-2 | SHIM 0.15mm | ||

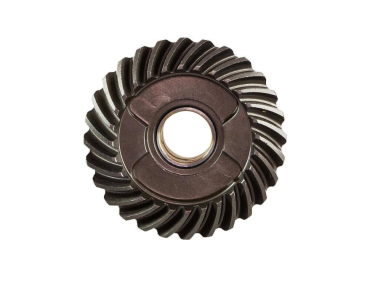

| 43 | PAT5-03010000 | REC43-812944 | 812944 | FORWARD GEAR ASSY |

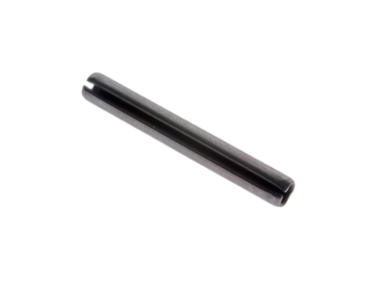

| 44 | PAT5-03000404 | PIN, CLUTCH | ||
| 45 | PAT5-03000400 | SHAFT ASSY, PROPELLER | ||
| 46 | PAGB/T879.1-3.5x28 | PIN 3.5x28 | ||

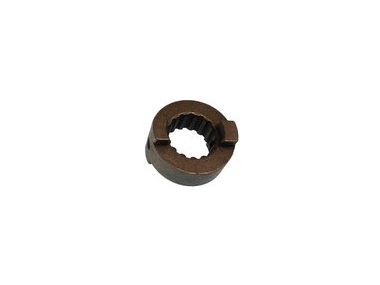

| 47 | PAT5-03000403 | CLUTCH, DOG | ||

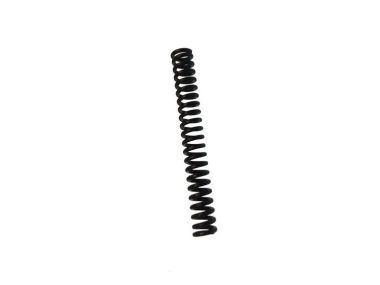

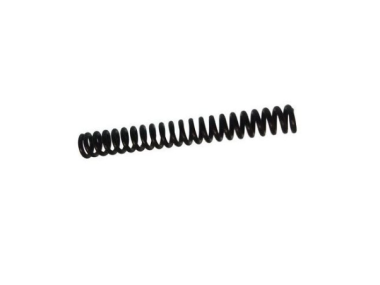

| 48 | PAT5-03000402 | SPRING, CLUTCH | ||

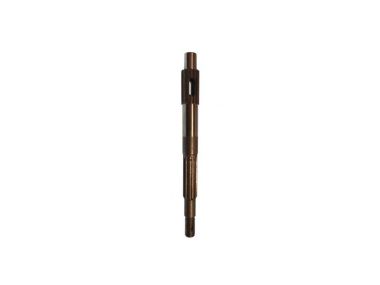

| 49 | PAT5-03000401 | REC44-195133 | 19513 3 | SHAFT, PROPELLER |
| 50 | PAT5-03000015 | WASHER, REVERSE GEAR | ||
| 51 | PAT5-03000600 | REC43-8129451 | 812945 1 | REVERSE GEAR ASSY |
| 52 | PAT5-03000500 | COVER ASSY, LOWER CASING | ||
| 53 | PAGB/T276-6002 | BEARING 6002 | ||
| 54 | PAJASOF404 31-050 | O-RING | ||
| 55 | PAF8-04040004 | REC26-16130 | 16130 | OIL SEAL |
| 56 | PAT5-03000501 | COVER, LOWER CASING | ||
| 57 | PAGB/T5783-M6x20 | 97095-06020 | BOLT M6x20 | |
| 58 | PAT5-03000800 | CUSHION ASSY, PROPELLER SHAFT | ||
| 59 | PAF6-03010000 | PROPELLER ASSY | ||
| 60 | PAGB/T96-10 | 16146 | WASHER 10 | |
| 61 | PAF15-06000016 | REC11-16147Q | 90171-10M01, 16147 | NOTCH NUT |

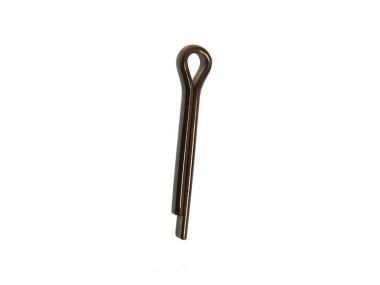

| 62 | PAGB/T91-3.2x18 | PIN, COTTER Ø3.2x18 | ||
| 63 | REC30-95347 | 30-95347 | Bearing |
-
