30 - 125 PK 2-Takt (3/4-Cil. InLine) & 50 - 150 PK 4-Takt

Nummer:	Bestelnummer:	Mercury Mariner OEM:	Omschrijving:
1	REC817275A2	817275A2	WATER PUMP ASSEMBLY
2	REC47-43026Q02	47-43026T2	IMPELLER
3	REC28-8M0032833	28-43037	KEY
4	REC27-8172771	27-817277-1	GASKET
5	REC8172761	817276-1	WEAR PLATE
6	REC27-430331	27-43033-1	GASKET
7	REC43055A4	43055A4	PUMP BASE ASSEMBLY

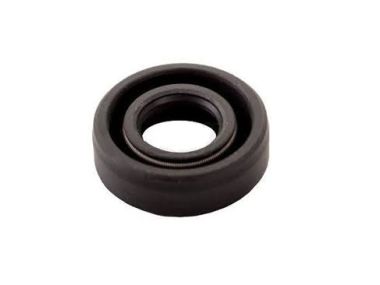

8	REC26-43036	26-43036	OIL SEAL
9	REC26-43035	26-43035	OIL SEAL
10	REC27-430472	27-43047-2	GASKET
11	45-43031A1	45-43031A1	DRIVE SHAFT (LONG) (20” 2 STROKES 70-125 HP)
11		45-826736A1	DRIVE SHAFT (LONG) (20” 2 STROKES 50-60 HP)
11	REC45-858765T1	45-858765T1	DRIVE SHAFT (LONG) (20” 4 STROKES 70-115 HP)
11	REC45-878575T1	45-878575T1	DRIVE SHAFT (LONG) (25” 4 STROKES 70-115 HP)
11	REC45-854808A1	45-854808A1	DRIVE SHAFT (LONG) (20” 4 STROKES 30-50 HP) A
11	REC45-859105A1	45-859105A1	DRIVE SHAFT (LONG) (20” 4 STROKES 40-60 HP)
11	REC45-875222A1	45-875222A1	DRIVE SHAFT (LONG) (25” 4 STROKES 40-60 HP)
12	REC31-42677A1	31-42677A1	BEARING
13	REC26-8164641	26-816464-1	OIL SEAL
14	REC25-457101	25-45710	O-RING
15	REC53-29641	53-29641	RETAINING RING
16	REC10-79953Q04	10-79953Q2	SCREW KIT
17	REC12-191833	12-19183-3	GASKET
18	REC22-67892A05	22-67892A1	DRAINING SCREW
19	REC76039-4	76039-4	SHIFT CAM (3 JAW)
19	REC850307	850307	SHIFT CAM (6 JAW)
20	REC11-35921	11-35921	PINION NUT
21	REC850315A1	850315A1	CAM FOLLOWER KIT
22		30-44530	BALL

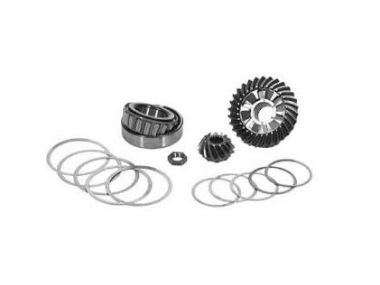

23	43-803500T1	43-803500T1	P/FORWARD GEAR SET (2.31:1 RATIO 3 JAW)
23		43-803501T1	P/FORWARD GEAR SET (2.31:1 RATIO 6 JAW)
24		43-12635T	REVERSE GEAR (3 JAW)
24		43-850034T	REVERSE GEAR (6 JAW)
25	REC52-822539T	52-822539T	CLUTCH DOG (3 JAW)
25	REC52-850048T	52-850048T	CLUTCH DOG (6 JAW)
26	REC31-30894A1	31-30894A1	BEARING
27	REC31-30895T	31-30895	BEARING
28		24-30622	SPRING (3 JAW)
28		24-850327	SPRING (6 JAW)
29	REC17-8M0084681	17-30632	CROSS PIN
30	REC24-30893	24-30893	SPRING
31	REC44-12238T	44-12238T	PROP SHAFT (3 JAW)
31	REC44-850308	44-850308	PROP SHAFT (6 JAW)
32	REC310414	25-97386	O-RING
33	REC31-12576	31-12576	THRUST BEARING
34	REC12-12577	12-12577	THRUST WASHER
35	REC31-12578T	31-12578T	BEARING
36	REC12596T2	12596T2	BEARING CARRIER
37	REC387247	31-30956	BEARING

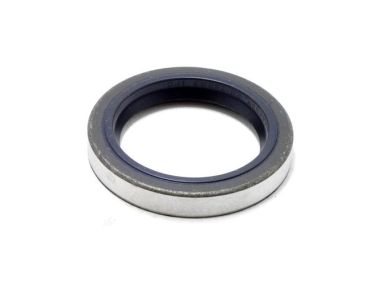

38	REC26-76868	26-76868	OIL SEAL
39	REC26-70081	26-70081	OIL SEAL
40	REC13191Q01	13191A1	THRUST HUB
41	REC90508-ZW1-003	14-816629Q	TAB WASHER
42	REC90301-ZW1-003	11-52407Q1	PROP NUT
43	CM826134	826134Q	ANODE ZINC
43	CM826134A	826134Q	ANODE ALUMINUM
44	REC12-45176	12-45176	WASHER
45	CM31640	31640Q4	TRIM TAB ZINC
45	CM31640A	31640Q4	TRIM TAB ALUMINUM
46	REC15-8M0063265	15-44492A1	SHIM SET
47	REC15-44491A1	15-44491A1	SHIM SET
48	REC23-43052A4	23-43052A4	BUSHING ASSEMBLY
49	REC43023	43023	WATER TUBE SEAL (WHITE)
49	REC43023-2	43023-2	WATER TUBE SEAL (BLACK)
50	REC10-82684430	10-826844-30	SCREW
51		10-826844-25	SCREW
52	REC42461A1	42461A1	SLEEVE / RING KIT
53	REC26-43036	26-43036	SEAL UPPER
54	REC26-43035	26-43035	SEAL LOWER
55	REC12-855941	12-855941	WASHER
56	REC11-401378	11-401378	NUT
57	REC43046	43046	OILER TUBE
58	REC853906A1	853906A1	SHIFT SHAFT 20”
58	REC853908A1	853908A1	SHIFT SHAFT 25”
	REC26-43035A4	26-43035A4	GEARCASE SEAL KIT
	REC12094	46-43024A7	WATER PUMP KIT
	REC47-43026Q06	47-43026Q06	WATER PUMP KIT
