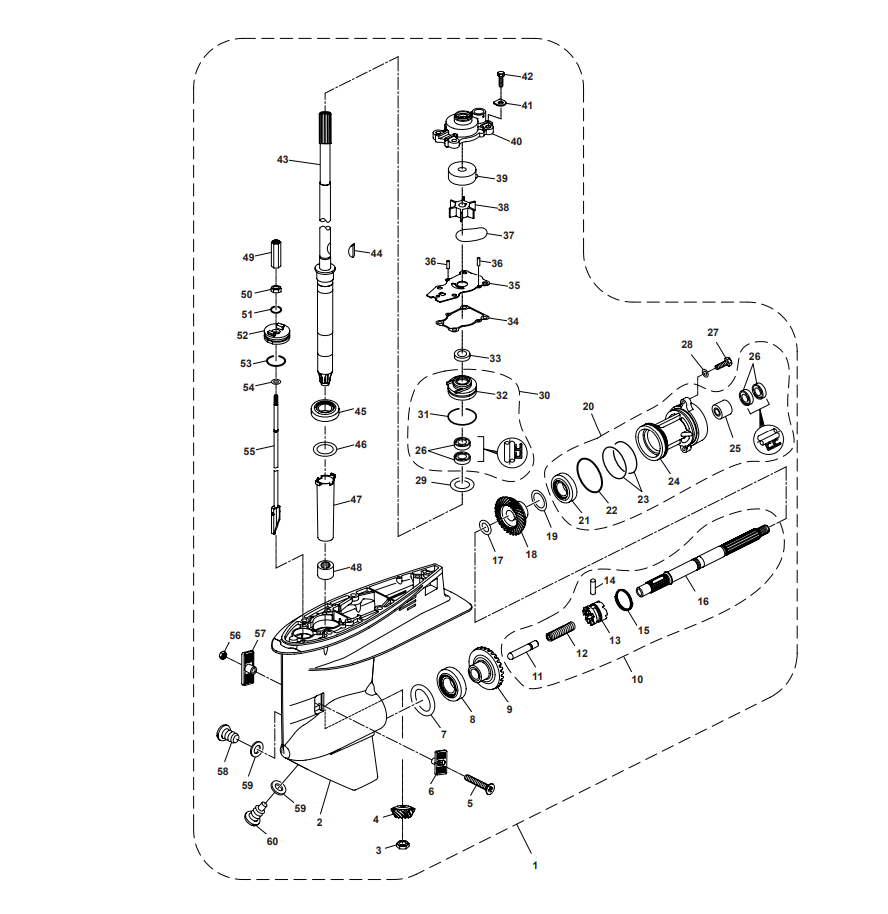

Parsun Buitenboordmotor F40 Lower Casing & Drive 1 Onderdelen

NR:	Bestelnummer:	OEM:	Omschrijving:	Aantal:
1	PAF40-04000000L	66T-45311-00-4D	LOWER CASING ASSY (L)	1
1	PAF40-04000000S	66T-45311-01-4D	LOWER CASING ASSY (S)	1
2	PAT40-04000001	66T-45311-00-4D	LOWER CASING	1
3	PAT40-04000006	90170-12138	NUT, PINION	1
4	PAT40-04000005	66T-45551-00	PINION	1
5	PAGB/T820-M5x30		PINION	1
6	PAT40-04000022	63D-45214-00	WATER INLET A	1
7	PAT40-04000004-1	663-45567-01-00	SHIM (t: 0.10 mm)	1
7	PAT40-04000004-2	663-45567-10-00	SHIM (t: 0.12 mm)	1
7	PAT40-04000004-3	663-45567-01-15	SHIM (t: 0.15 mm)	1
7	PAT40-04000004-4	663-45567-01-18	SHIM (t: 0.18 mm)	1
7	PAT40-04000004-5	663-45567-01-30	SHIM (t: 0.30 mm)	1
7	PAT40-04000004-6	663-45567-01-40	SHIM (t: 0.40 mm)	1
7	PAT40-04000004-7	663-45567-01-50	SHIM (t: 0.50mm)	1
8	PAKOYOHI-CAP322/32		ROLLER BEARING	1
9	PAT40-04020000	66T-45560-00	FORWARD GEAR ASSY	1
10	PAT40-04050000		PROPELLER SHAFT ASSY	1
11	PAT40-04050006	66T-45635-00	PLUNGER, SHIFT	1
12	PAT40-04050002	90501-15M01	SPRING, CLUTCH	1
13	PAT40-04050003	66T-45631-00	DOG CLUTCH	1
14	PAT40-04050004	90250-06023	PIN, CLUTCH	1
15	PAT40-04050005	663-45633-00	ANNULAR SPRING, CLUTCH	1
16	PAT40-04050001	66T-45611-00	SHAFT, PROPELLER	1
17	PAT40-04050007	90201-22429	WASHER, REVERSE GEAR	1
18	PAT40-04060006	66T-45571-00	GEAR, REVERSE	1
19	PAT40-04060005-1		SHIM (t: 0.10 mm)	1
19	PAT40-04060005-2	63D-45577-00-12	SHIM (t: 0.12 mm)	1
19	PAT40-04060005-3	63D-45577-00-15	SHIM (t: 0.15 mm)	1
19	PAT40-04060005-4	663-45567-01-18	SHIM (t: 0.18 mm)	1
19	PAT40-04060005-5	663-45567-01-30	SHIM (t: 0.30 mm)	1
19	PAT40-04060005-6	663-45567-01-40	SHIM (t: 0.40 mm)	1
19	PAT40-04060005-7	663-45567-01-50	SHIM (t: 0.50mm)	1
20	PAT40-04060000	93210-69MG6-00	COVER ASSY, LOWER CASING	1
21	PAKOYO6007C4		BEARING 6007	1
22	PAT40-04060002	93210-69MG6	O-RING A, COVER	1
23	PAT40-04060003	93210-7477500	O-RING B, COVER	2
24	PAT40-04060001	63D-45361-02-4D	COVER, LOWER CASING	1
25	PANTNHK2220JS		BEARING 2220	1
26	PAF25-04010003	93101-22067	OIL SEAL	4
27	PAGB/T5783-M8x25	97080-08025	BOLT M8x25	2
28	PAGB/T97.1-8	66M-11327-00-94	WASHER 8	2
29	PAT40-04000008	90201-27M00	BIG WASHER	1
30	PAT40-04040000		CASING A ASSY, OIL SEAL	1
31	PAJASOF40424-050		O-RING, CASING A	1
32	PAT40-04040001	63D-44341-00	CASING A, OIL SEAL	1
33	PAT40-04000009	66T-45344-00	COVER, OIL SEAL	1
34	PAT40-04000010	63D-44316-00	GASKET, WATER PUMP SEAT	1
35	PAT40-04000011	66T-44323-40	OUTER PLATE	1
36	PAF25-04000007	61N-45551-00	DOWEL PIN Ø4x10	2
37	PAT40-04000205	93210-59MG7	O-RING	1
38	PAF25-04040000	6H4-44352-00	IMPELLER ASSY, WATER PUMP	1
39	PAT40-04000202	63D-44322-40	INNER SHELL, WATER PUMP	1
40	PAT40-04000201	66T-44311-00	WATER PUMP HOUSING	1
41	PAT40-04000012		PLATE, WATER PUMP	4
42	PAGB/T5783-M8x30	910113-0830	BOLT M8x30	4
43	PAF40-04010000S		DRIVE SHAFT ASSY(S)
43	PAF40-04010000L		DRIVE SHAFT ASSY(L)	1
44	PAF25-04000015	90280-03024	WOODRUFF KEY	1
45	PA32005JRK0Y0		BEARING 32005	1
46	PAT40-04000003-1	663-45587-01-00	SHIM (t: 0.10 mm)	1
46	PAT40-04000003-2	663-45587-00-12	SHIM (t: 0.12 mm)	1
46	PAT40-04000003-3	63D-45577-00-15	SHIM (t: 0.15 mm)	1
46	PAT40-04000003-4	663-45567-01-18	SHIM (t: 0.18 mm)	1
46	PAT40-04000003-5	663-45567-01-30	SHIM (t: 0.30 mm)	1
46	PAT40-04000003-6	663-45567-01-40	SHIM (t: 0.40 mm)	1
46	PAT40-04000003-7	663-45567-01-50	SHIM (t: 0.50mm)	1
47	PAT40-04000002	6H4-45536-00	BUSHING, NYLON	1
48	PANSKB-1416		QUILL BEARING	1
49	PAF15-05000035	61N-44146-00	COLUMN NUT	1
50	PAGB/T6172.1-M6		NUT M6	1
51	PAF15-06 020004	93210-06ME6	O-RING 14x4.2	1
52	PAT40-04000007	66T-45321-00	COVER PLATE, CAMSHAFT	1
53	PAJASOF40431-035		O-RING	1
54	PAGB/T97.1-6	92990-06600-00	WASHER 6	1
55	PAF40-04020000		CAM ASSY, SHIFT ROD	1
56	PAGB/T889.1-M5		LOCKING NUT M5	1
57	PAT40-04000023	63D-45215-00	WATER INLET B	1
58	PAF4-03000023	6E0-45316-09	PLUG, OIL HOSE	1
59	PAF4-03000024	90340-08002	GASKET	2
60	PAF25-04000031	688-45341-00	PLUG, OIL RELEASE	1
