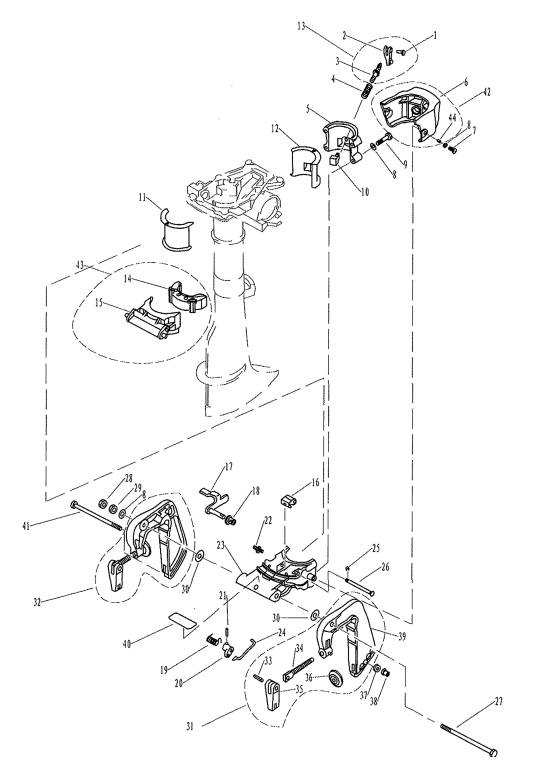

Parsun Buitenboordmotor F2.6 Bracket onderdelen

Nummer:	Bestelnummer:	Yamaha OEM:	Omschrijving:
1	GB/T875-86	90266-04M05	RIVET
2	PAF4-01060002	68D-G2561-01, 6EE-G25610000	CLAMP HANDLE
3	PAF2.6-01050101	69M-42529-00, 6EGG-252900	LOCKED SCREW
4	PAF2.6-01050002	90501-12803	SPRING
5	PAF2.6-01050001	69M-G3312-00-4D	COVER, SWIVEL BRACKET
6	PAF2.6-00000101	69M-G3318-00-00	COVER, BRACKET
7	PAGB/T818-2000		SCREW, PAN HEAD
8	PAGB/T97.1-85	66M-11327-00-94	WASHER
9	PAGB/T5783-2000	68D-E5362-00	BOLT
10	PAF2.6-01050200	69M-42528-00	LOCKED BLOCK ASSY
11	PAF2.6-01000003	69M-G2537-00	BUSHING A
12	PAF2.6-01000004	69M-G2538-00	BUSHING B
13	PAF2.6-01050100		LOCKED HANDLE ASSY
14	PAF2.6-01040100	69M-44557-00	DAMPER
15	PAF2.6-01040001	69M-G3351-00	BRACKET, THRUST RECEIVE
16	PAF2.6-01030007	69M-G3186-00, 6EGG-318600	LEVER
17	PAF2.6-01030100	69M-43180-00	TILT CLAMP HANDLE ASSY
18	PAF4-01090006	90386-08032	BUSHING
19	PAF2.6-01030003	69M-G3188-00-00	SPRING
20	PAF2.6-01030004	69M-G3185-00-00	LEVER,TILT LOCK
21	PAGB/T879.2-2000	91609-25014	PIN
22	PAGB/T7940.1-95	93700-06M03-00	NIPPLE, GREASE
23	PAF2.6-01030001	69M-G3311-00-4D	BRACKET, SWIVEL
24	PAF2.6-01030005	69M-G3164-00-00	ROD, TILT LOCK
25	PAGB/T896-86	93430-06005	CLIP
26	PAF2.6-01030006	69M-G3166-00, 6EGG-316600	PIN
27	PAF2.6-01000001	90101-08M07	BOLT
28	PAGB/T6172.1-85	95380-08700	NUT
29	PAGB/T6170-85	95380-08600	NUT
30	PAGB/T96-1985		WASHER
31	PAF2.6-01010000	69M-G3111-00-4D	BRACKET LEFT ASSY
32	PAF2.6-01020000	69M-G3112-00-4D	BRACKET RIGHT ASSY
33	PAF4-01010005	90243-04M01	RIVET
34	PAF4-01010002	6E0-43116-01-00	CLAMP BOLT
35	PAF4-01010004	6L8-G3118-01	CLAMP SHIPBOARD HANDLE
36	PAF4-01010003	620-43114-00, 648-43114-01	CLAMP PLATE
37	PAF2.6-01000002	90201-06040	BUSH, BOLT
38	PAGB/T889.1-2000	95780-06300-00	NUT
39	PAF2.6-01010001	69M-G3111-00-4D	BRACKET,CLAMP(LEFT)
40	PAF2.6-07000009		MARK 9
41	PAGB/T5782-2000	90101-06030-00	BOLT
42	PAF2.6-00000100	69M-G3318-00	BRACKET,COVER ASSY
43	PAF2.6-01040000		THRUST RECEIVE ASSY
44	PAF2.6-00000102		BUSH
