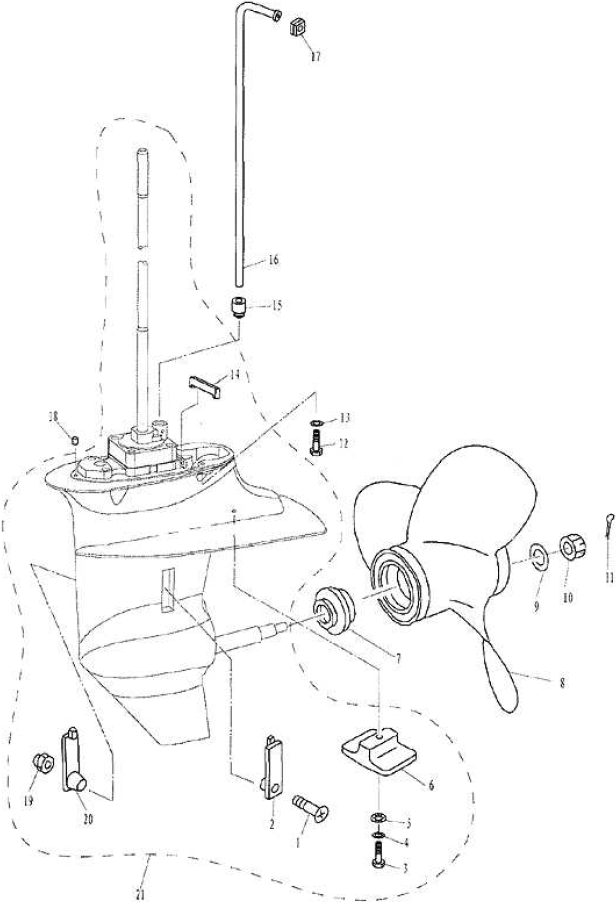

Parsun Outboard Engine F9.9, F13.5 & F15 Lower Casing & Drive 2 Parts

Number: Order number: Yamaha OEM: Description:
1 PAGB/T820-85 90149-05M13, 90152-05011-00 SCREW
2 PAF15-06000003 6G1-45214-00 WATER INLET B
3 PAGB/T5783-2000   BOLT, HEXAGON
4 PAGB/T97.1-85   WASHER
5 PAGB/T861.1-87 92990-06300 WASHER, LOCKING
6 PAF15-06000004 61N-45251-00, 61N-45251-01-00 ANODE
7 PAF15-06000015 6E7-45987-01 CUSHION, PROPELLER
8 PAF15-06090000 63V-45952-00-EL11, 63V-45952-10 PROPELLER ASSY
9 PAGB/T96-85   WASHER 10
10 PAF15-06000016 90171-10M01 NUT, HEXAGON
11 PAGB/T91-86 91490-16010, 91490-25030, 91490-30022 PIN, COTTER
12 PAGB/T5783-2000   BOLT, HEXAGON
13 PAGB/T97.1-85   WASHER
14 PAF15-06020005 63V-45375-00 SEAL, RUBBER
15 PAF15-02010003 63V-44368-00 UPPER SEAL, WATER PIPE
16 PAF15-02000005 66M-44361-10 TUBE, WATER
16 PAF15-02000005S 66M-44361-00 TUBE, WATER SMALL
17 PAF15-02000006 63V-44365-10 QUADRATE SEAL, WATER PIPE
18 PAF15-00000013 93604-10M03, 93604-12M07 PIN, DOWEL
19 PAGB/T6182-86   NUT, LOCKING
20 PAF15-06000002 63V-45215-00 WATER INLET A
21 PAF15-06100000 66M-45300-11-4D, 66M-45300-118D LOWER CASING ASSY
21 PAF15-06100000S 66M-45300-01-4D, 66M-45300-02-4D, 66M-453000-28D LOWER CASING ASSY
